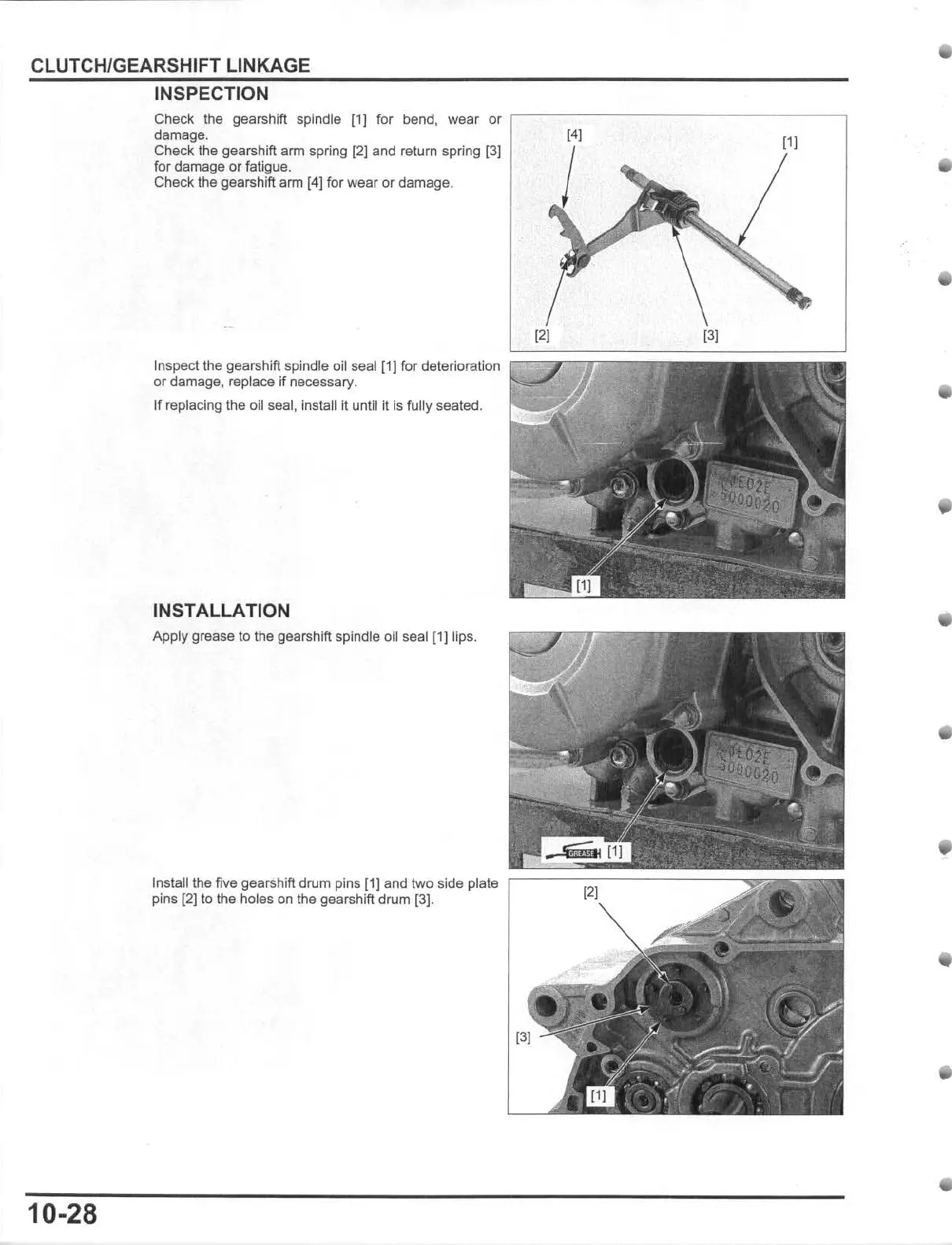

CLUTCH/GEARSHIFT LINKAGE
10-28
INSPECTION
Check
the
gearshift spindle
[1]
for
bend,
wear or
,----------
------
---,
damage.
[4]
Check the gearshift arm spring [2] and return spring [3]
for damage
or
fatigue.
Check the gearshift arm [4] for wear or damage.
{21 {31
Inspect the gearshift spindle oil seal [1] for deterioration
~;:;:;
7
=.:u:;;;;;;;;;;
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii;a;~
or damage, replace if necessary.
If
replacing the oil seal, install
it
until it is fully seated.
INSTALLATION
Apply grease to the gearshift spindle oil seal [1) lips.
Install the five gearshift drum pins [1] and two side plate
pins
{2]
to the holes on the gearshift drum [3],
•
•
