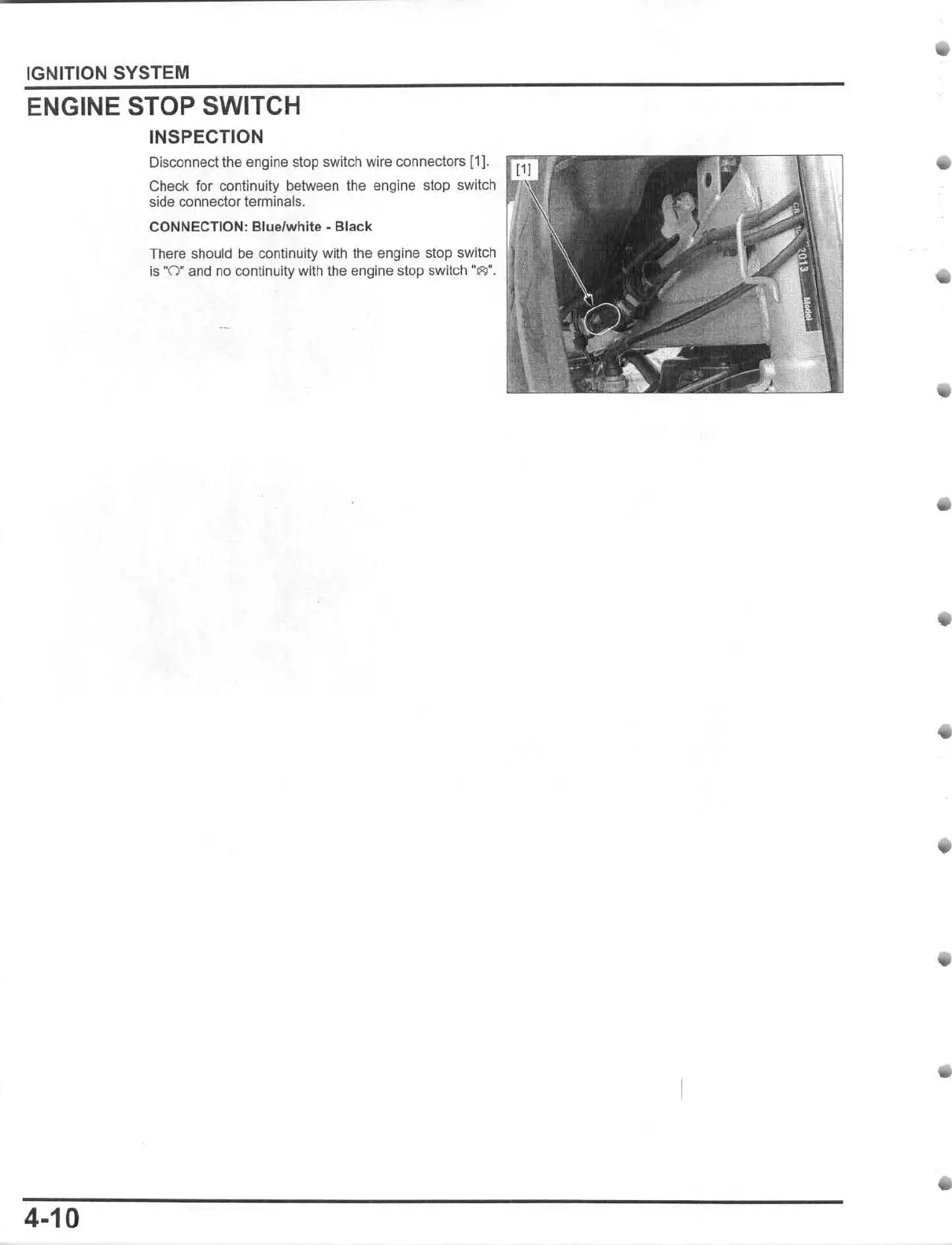

IGNITION SYSTEM
ENGINE STOP SWITCH
INSPECTION
4·10
Disconnect the engine stop switch wire connectors [1].
Check for continuity between the engine stop switch
side
connector terminals.
CONNECTION: Blu
e/white·
Black
There should be continuity with the engine stop switch
is
-('f
and no continuity with the engine stop switch
.~
•.
