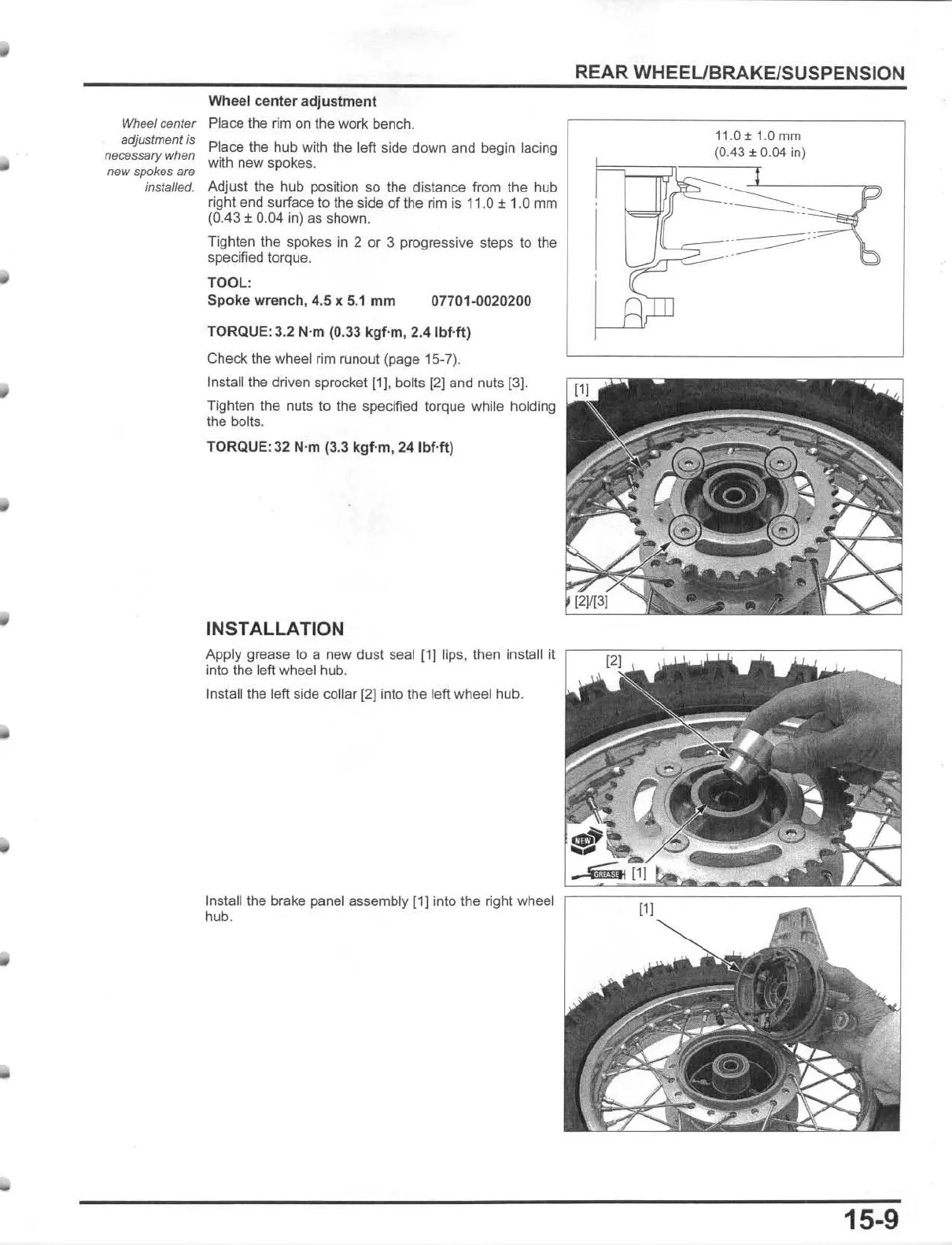

Wheel center
adjustment
Wheel
center Place the rim
on
the work bench.
adjustment is
necessary when
new spokes are
installed.
Place the hub with the left side down and begin lacing
with
new spokes.
Adjust the hub position so the distance from the hub
right end surface to the side
of
the rim is
11
.0 ± 1
.0
mm
(0.43 ± 0.04 in)
as
shown.
Tig
hten the spokes in 2 or 3 progressive steps to
the
speci
fi
ed torque.
TOOL:
Spoke wrench, 4.5 x 5.1 mm
07701-<l020200
TORQUE: 3.2 N'm
(0
.
33
kgf
'm, 2.4
IbHt)
Check the wheel rim runout (page 15-7).
Instalilhe
driven sprocket
[1
j.
bolts [2] and nuts (3).
Tighten the nuts to the specified torque while holding
the boll
s.
TORQUE:
32
N'm
(3
.3
kgf
·
m.
24
IbUt)
INSTALLATION
REAR WHEEL/BRAKE/SUSPENSION
11.0±
1.0mm
(0.43 ± 0.04 in)
..~
Apply grease to a new dust seal [1] lips, then install
it
,-
--::::-
---,
-",-
-
OC-
---c-
-
---,
into the left wheel hub.
Install the left side collar
[21
into the left wheel hub.
Install the brake panel assembly
[11
into the right wheel
hub.
15-9
