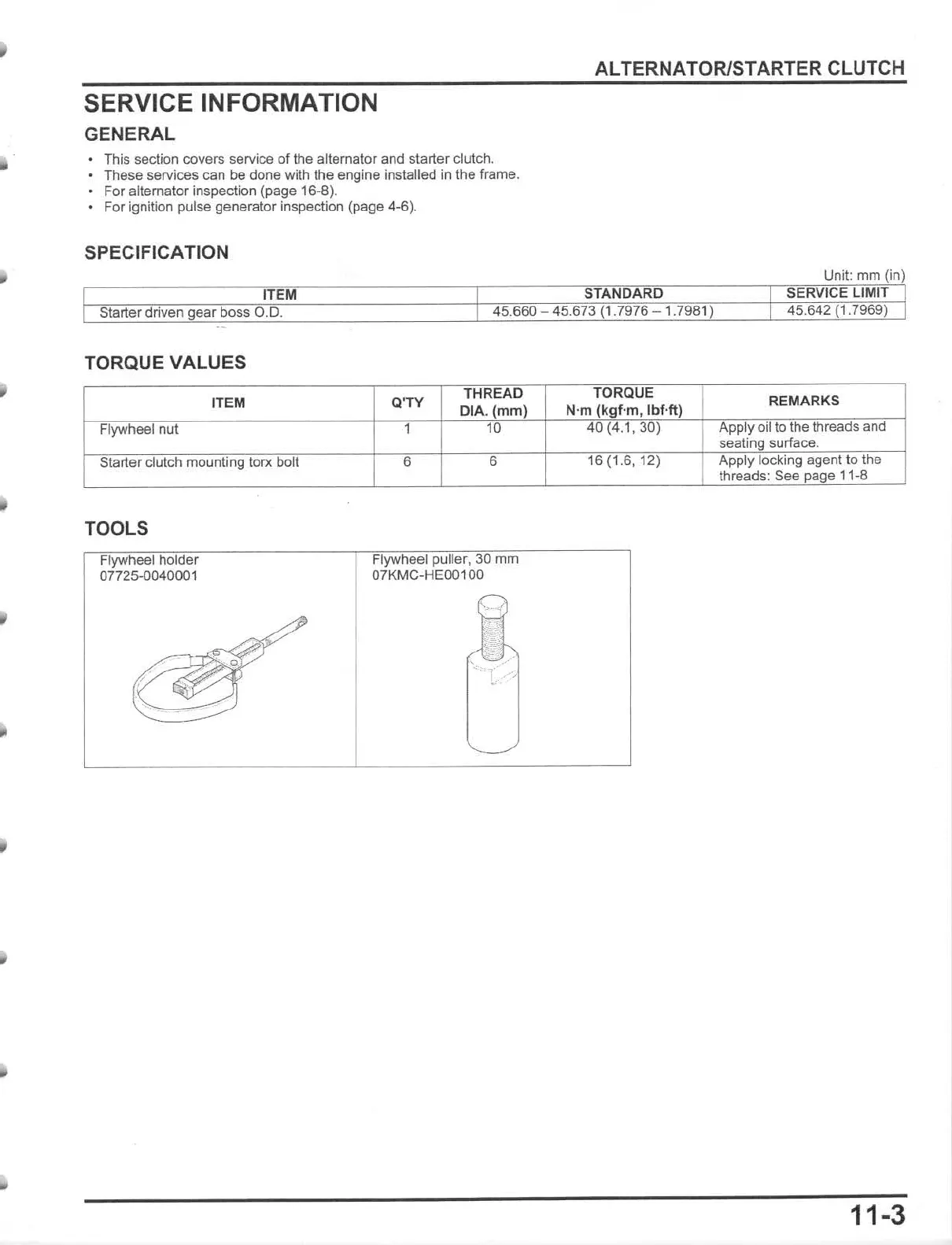

SERVICE INFORMATION
GENERAL
This section covers service of the alternator and starter clutch.
These services can be done with the
engine installed in the frame.
For alternator inspection (page 16-8).
For ignition pulse generator Inspection ( page 4-6).
SPECIFICATION
TORQUE VALUES
ITEM
Flywheel nut
Starter clutch mounting
lorx bolt
TOOLS
Flywheel holder
07725-0040001
Q'
TV
THREAD
OIA . ( mm)
1 10
6 6
Flywh eel puller, 30 mm
07KMC-HE00100
AL TERNATORISTARTER CLUTCH
TORQUE
REMARKS
N-m ( kgf 'm, IbHt )
40 (4.1 , 30)
Apply oil to the threads and
sealing surface.
16 (1.6, 12) Apply locking agent 10 the
threads:
See page 11-8
11-3
