Honda CRF110F - Clutch

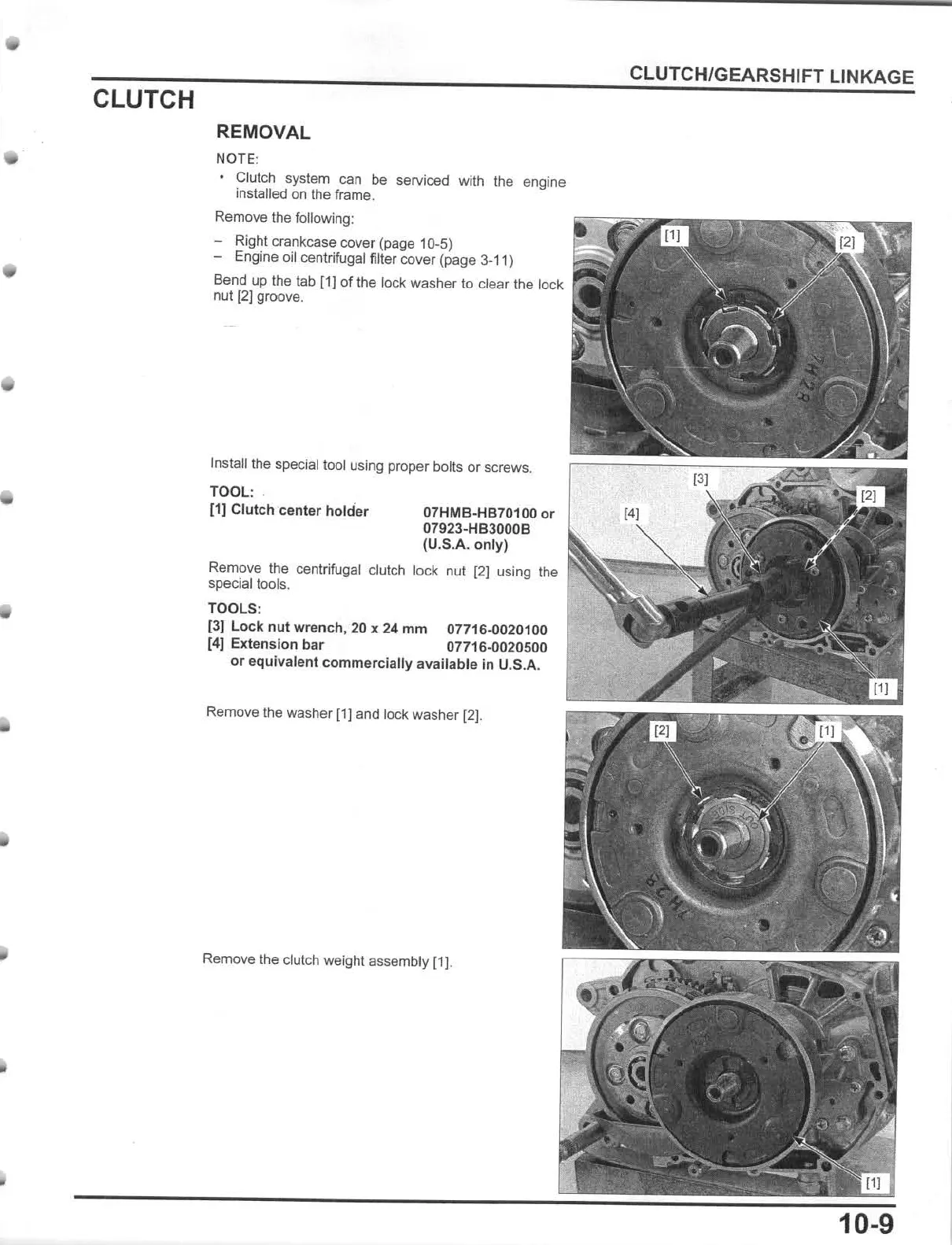

CLUTCH
REMOVAL
NOTE:
• Clutch system can be serviced with the engine
installed on the frame.
Remove the following:
- Righi crankcase cover (page 10-5)
- Engine oil cent rifugal filter cover (page 3-11)
Bend up the tab [1) of the lock washer 10 clear the lock
nut (2] groove.
Install the special tool u sing proper bolts or screws .
TOOL:
[1] Clutch center holder 07HMB·HB70100 or
07923·HB3000B
(U.S.A. only)
Remo ve the centrifugal clutch lock nut [2J using the
special tools.
TOOLS:
[ 3] lock nut wrench , 20 x 24 mm 07716'{)020100
[4] Extension bar 07716-0020500
or equivalent commercially available In U.S.A.
R emove the washer [1J and l oc k washer [2].
Remove the clutch weig ht assembly (1).
CLUTCH/GEARSHIFT LINKAGE
10-9
