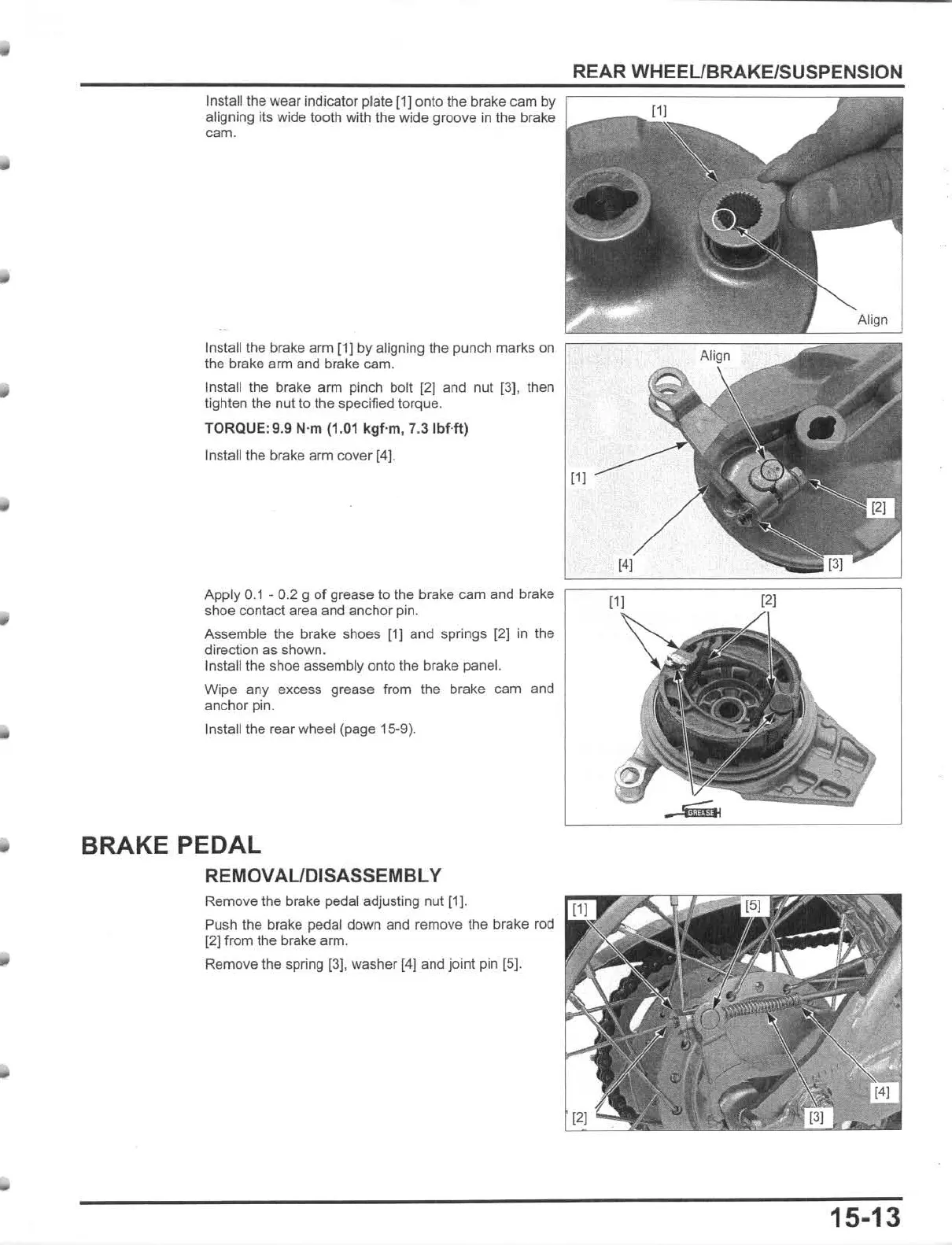

Install the
wear
indicator plate
(1)
onto the brake
cam
by
aligning its wide tooth wi
th
the wide groove in the brake
oam.
REAR WHEEUBRAKE/SUSPENSION
Install the brake arm
[11
by
aligning the punch marks on
~~~~;==~;~~
~~
~;;;;~~
the brake arm and brake cam.
Install the brake arm pinch
bott
[21
and nut
[3
]. then
lighten the nut to the specified torque.
TORQUE: 9.9 N'm (1.
01
kgf'm
, 7.3
lbHt)
Instalilhe brake arm cover
[4}.
Apply 0.1
·0.2
9 of grease to the brake cam and brake
~==
=======~12:=1
=====
~
shoe contact area and anchor pin.
Assemble the brake shoes
[11
and springs
(2]
in
the
direction as shown.
Install the shoe assembly onto the brake panel.
Wipe any excess grease
from
the brake cam and
anchor pin.
Instalilhe
rear wheel (page 15-9
).
BRAKE PEDAL
REMOVAUDISASSEMBLY
Remove the brake pedal adjusting nut
[1J
.
Push the brake pedal down and remove the brake rod
[2] from the brake arm.
Remove the spring [3], washer [4] and joint pin [5].
15·13
