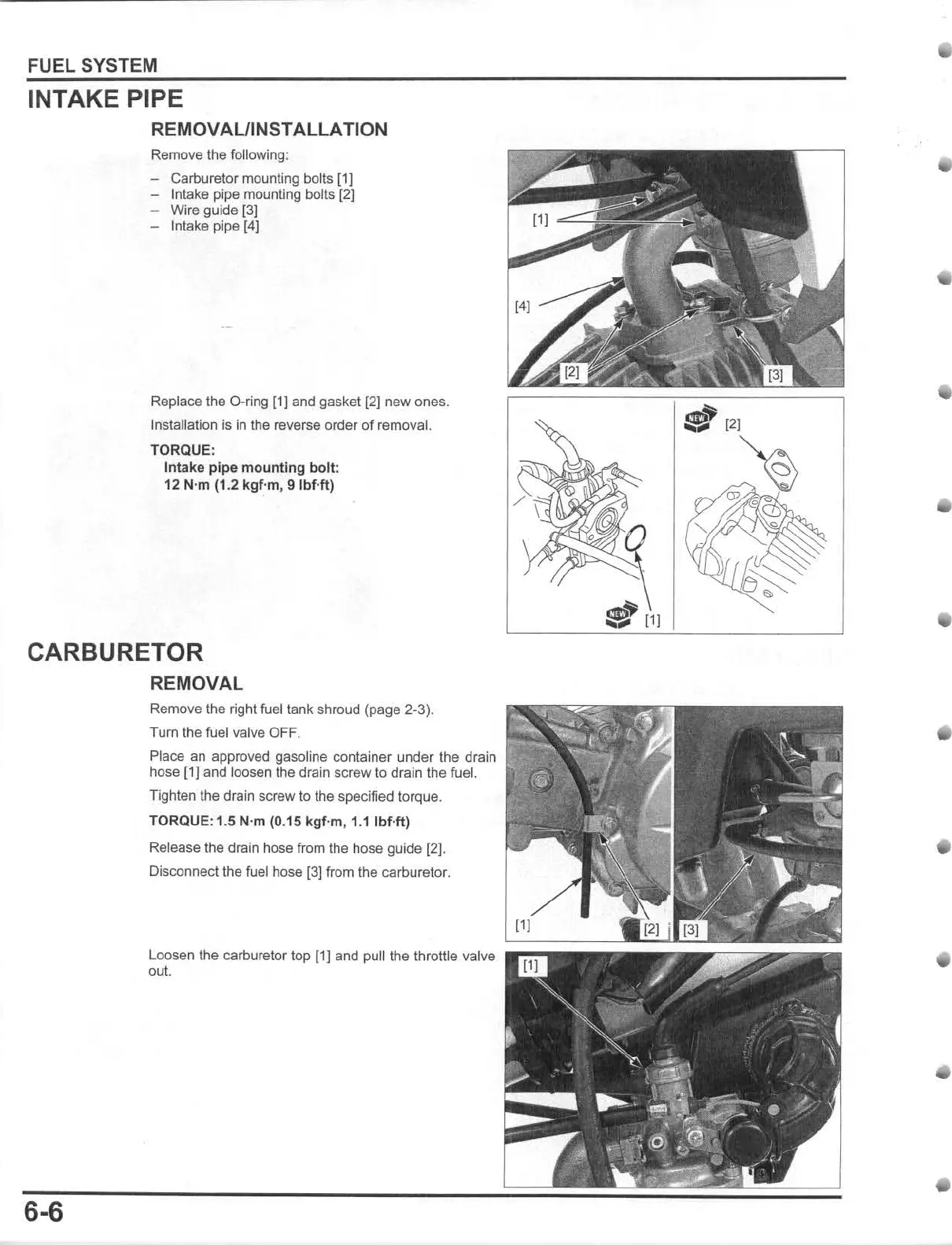

FUEL SYSTEM
INTAKE PIPE
REMOVAL/INSTALLATION
Remoye
the
following
:
- Carburetor mounting bolls [1]
- Intake
pipe mounting bolts
12]
- Wire guide (
3)
- Intake pipe [4)
Replace the O-ring (1] and
gaske
t
[2
J
new
ones.
Installation is
in
the reverse order
of
removal.
TORQUE
:
Intake pipe
mount
ing
bolt
:
12 N'm
(1
.2
kgf
'm, 9
IbUt)
CARBURETOR
REMOVAL
6-6
Remove the right fuel tank shroud (page
2-3)
.
Turn the fuel valve OFF.
Place
an
approved gasoline container under the drain
hose
[1]
and toosen the drain
screw
to drain the fuel.
Tighten the drain screw to the specified torque.
TORQUE:
1.5 N'm (0.15
kgf
-m, 1.1
IbHt
)
Release the drain hose from the h
ose
gui
de
[21
.
Disconnect the fuel hose
[31
from the carburetor.
Loosen the carburetor top [1]
and
put! the throttle valve
out.
g
[21
~
S [1]
~
O?~
•
