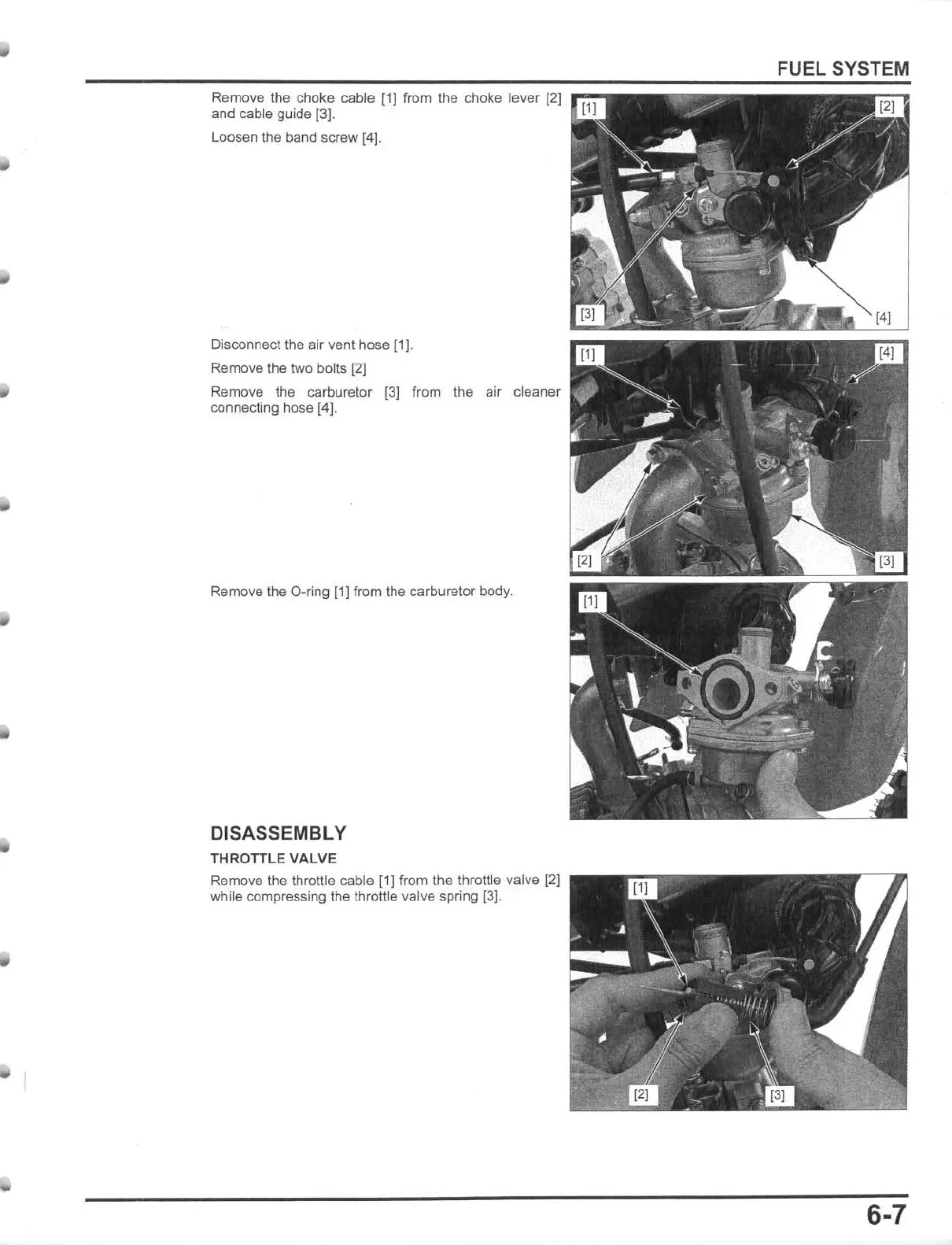

Honda CRF110F - Carburetor Disassembly; Throttle Valve

Remove the choke cable 11] from the choke lever [2]
and cable guide [3J.
Loosen the band screw [4].
Disconnect the air vent hose
[1].
Remove the two bolts [2]
Remove the carburetor
13] from the air cleaner
connecting hose [4].
Remove the O-ring
(1) from the carburetor body.
DISASSEMBLY
THROTILE V ALVE
Remove the throttle cable [1] from the throttle valve [21
while compressing the throttle valve spring [3].
FUEL SYSTEM
6·7
