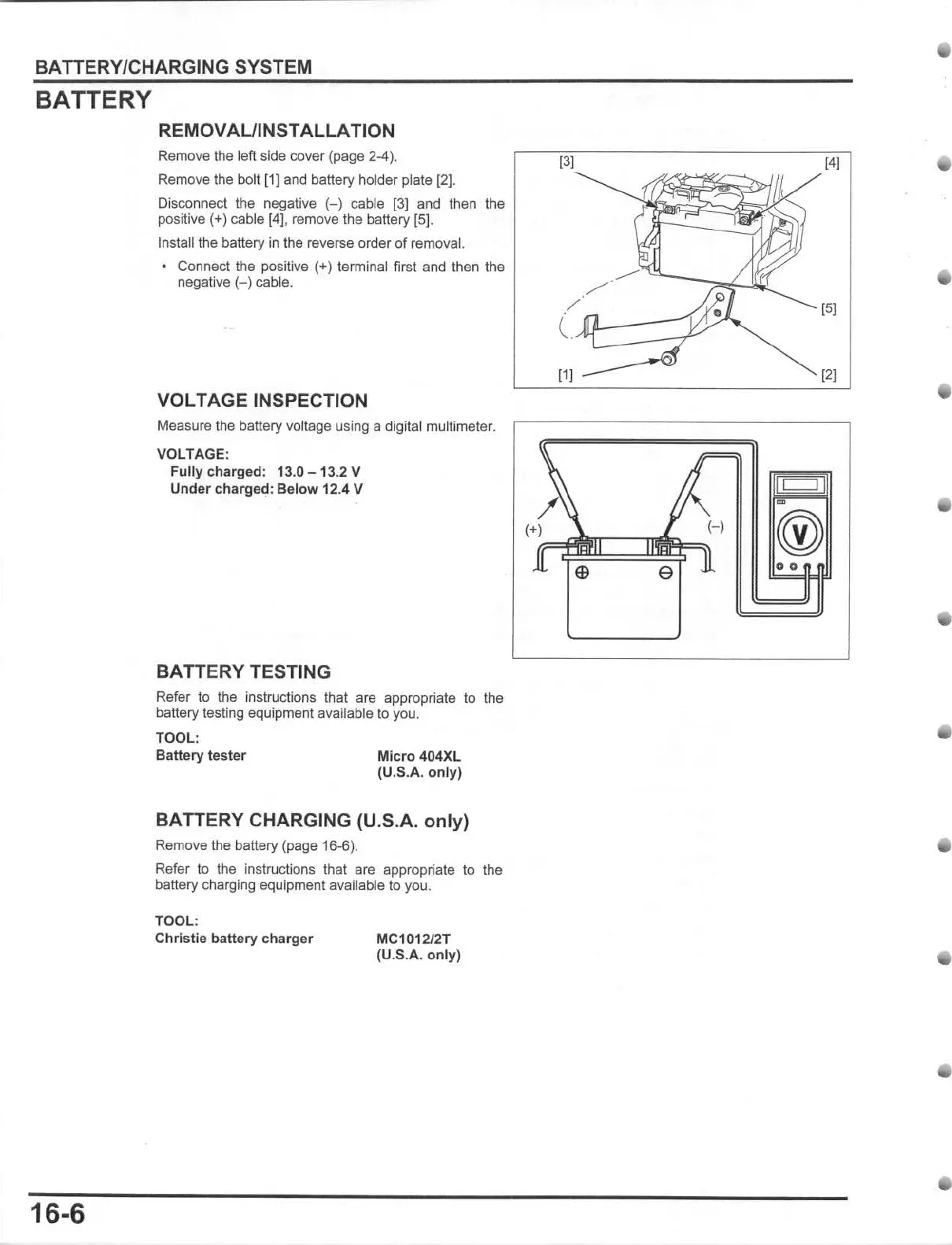

BATTERY/CHARGING SYSTEM
BATTERY
16-6
REMOVAUINSTALLATION
Remove the left side covet (page 2-4).
Remove the
bolt
[1J
and battery holder plate
[2J
.
Disconnect the negative
(-)
cable
(3]
and then the
positive (+) cable
[4J
, remove the battery [5].
Install the battery in the reverse order
of
removal.
Connect the positive (+) terminal first and then the
negative
H cable.
VOLTAGE INSPECTION
Measure t
he
battery vollage using a digital mullimeter.
VOLTAGE:
Fully
cha
rged: 13.0 - 13.2 V
Under ch
ar
ged: Be
lo
w 12.4 V
BATTERY TESTING
Refer
to
the ins
tru
ctions that are appropriate to the
battery testing equipment available to you.
TOOL:
Ba
tt
ery tester
Mi
cr
o 404Xl
(U.S.A.
onl
y)
BATTERY CHARGING
(U
.S.A.
only)
Remove the battery (page 16-6).
Refer
to
the
instructions that are appropriate to the
battery charging equipment available to you.
TOOL:
C
hr
is
tie battery charger
MC101
212
T
(U.S.A. on
ly)
131
141
/'
---
--..,....c....
151
/
l
1t==::::;t
1
11
121
