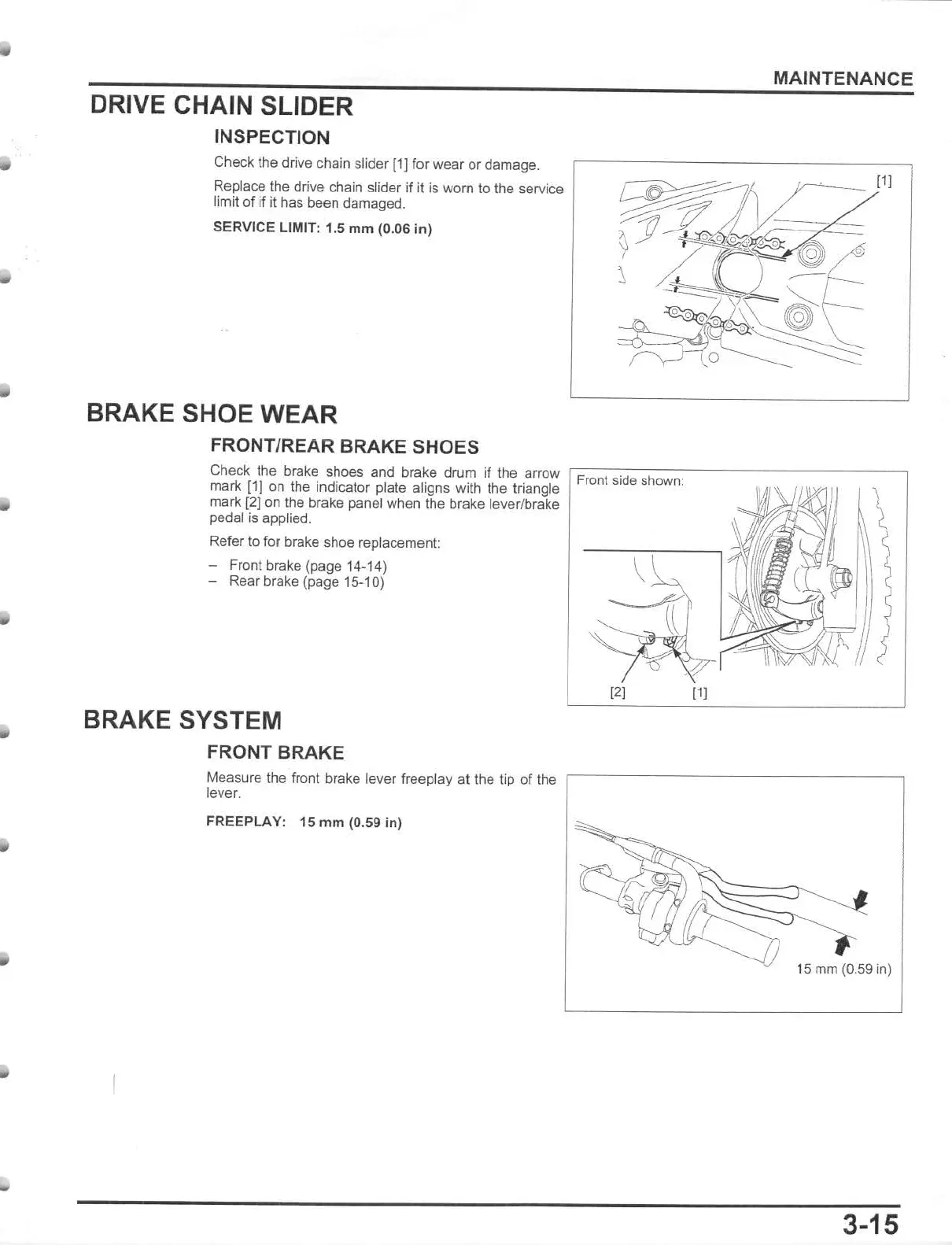

DRIVE CHAIN SLIDER
INSPECTION
Check the drive chain slider (1] for
wear
or damage.
Replace the drive chain slider if II is worn to the service
limit
of
if
it has been damaged.
SERVICE LIMIT: 1.5
mm
(0.06 i
n)
BRAKE SHOE WEAR
FRONT/REAR BRAKE SHOES
Check Ihe brake shoes and brake drum if the arrow
mark [1] on the indicator plate aligns with the triangle
mark
[2)
on the brake panel
when
the brake leverlbrake
pedal is applied.
Refer to for brake shoe replacement:
- Front brake (page 14-14)
- Rear brake (page 15-10)
BRAKE SYSTEM
FRONT BRAKE
MAINTENANCE
Front side shown:
[21
[11
Measure the front brake lever free play at the tip of the
r---------
-
---------,
lever.
FREEPLAY
: 15
mm
(0.59 in)
F
15 mm (0.
59
in)
3·15
