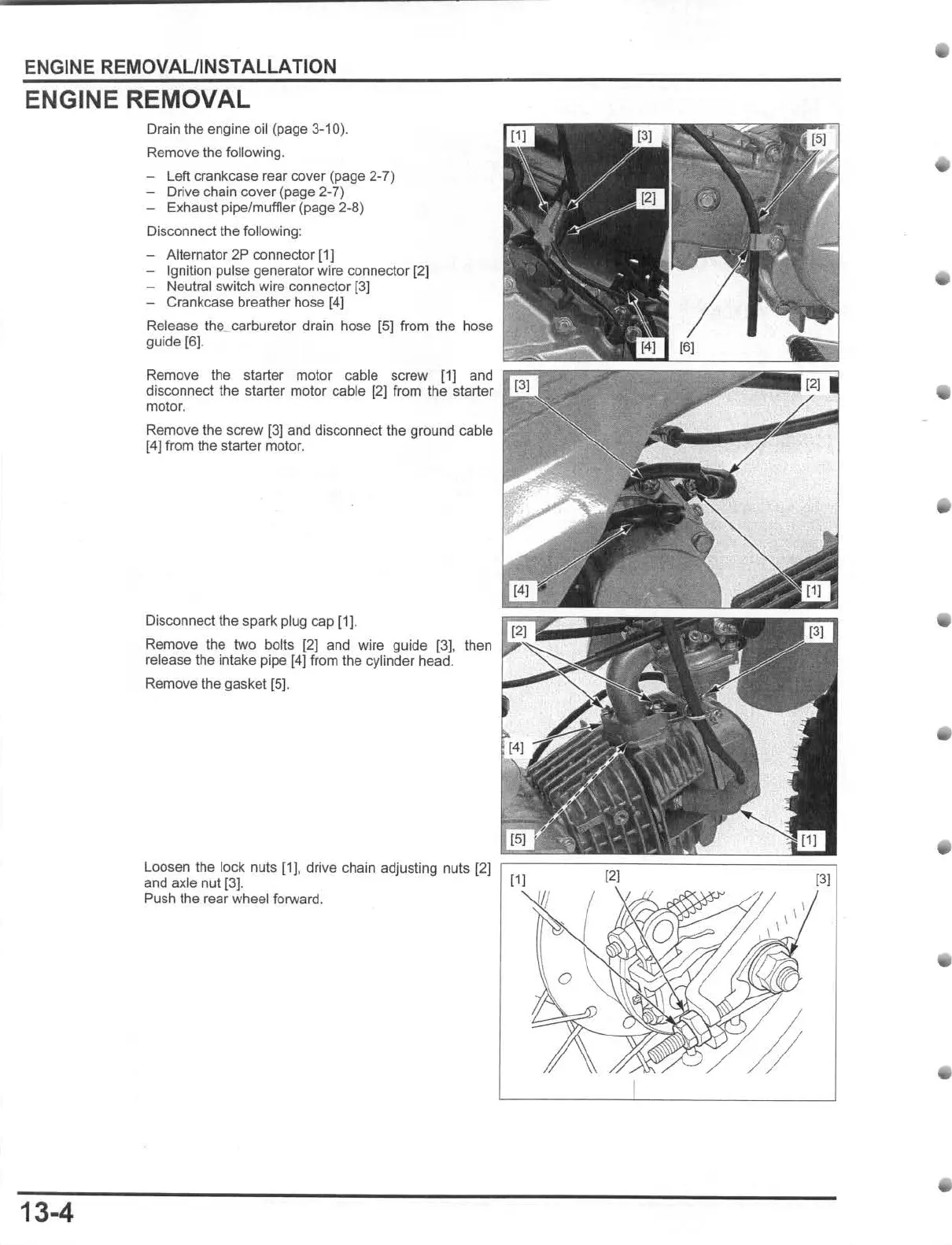

ENGINE REMOVAUINSTALLATION
ENGINE REMOVAL
13-4
Drain the engine oil (page 3-10).
Remove
the following.
- l eft crankcase r ear cover (page 2-7)
- Drive chain cover (page 2-7)
- Exhaust pipe/muffler (page 2- 8)
Disconnect the following:
- Alternator
2P connector [1]
- Ignition pulse generator wire connector (2)
- Neutral switch wire co nnector 13J
- Crankcase breather hose [4]
Release the carburetor drain hose [5) from the hose
guide 16] .
Remove the sta rter molor cable screw (1] and
disconnect the starter motor cable [2] from the starter "-'~ .. '
molor.
Remove the screw ( 3] and disconnect the ground cable
(4] from the starter motor.
Oisconnect the spark plug cap [1).
Remove the two bolls [2) and wire guide [3J . then
release the intake pipe 14] from the cylinder head.
Remove the gasket [S] .
Loosen the lock n uts [1 j. drive chain adjusting nuts [2 1
and axle nut [31 . 11]
Pu sh the rear wheel forward .
121
131
