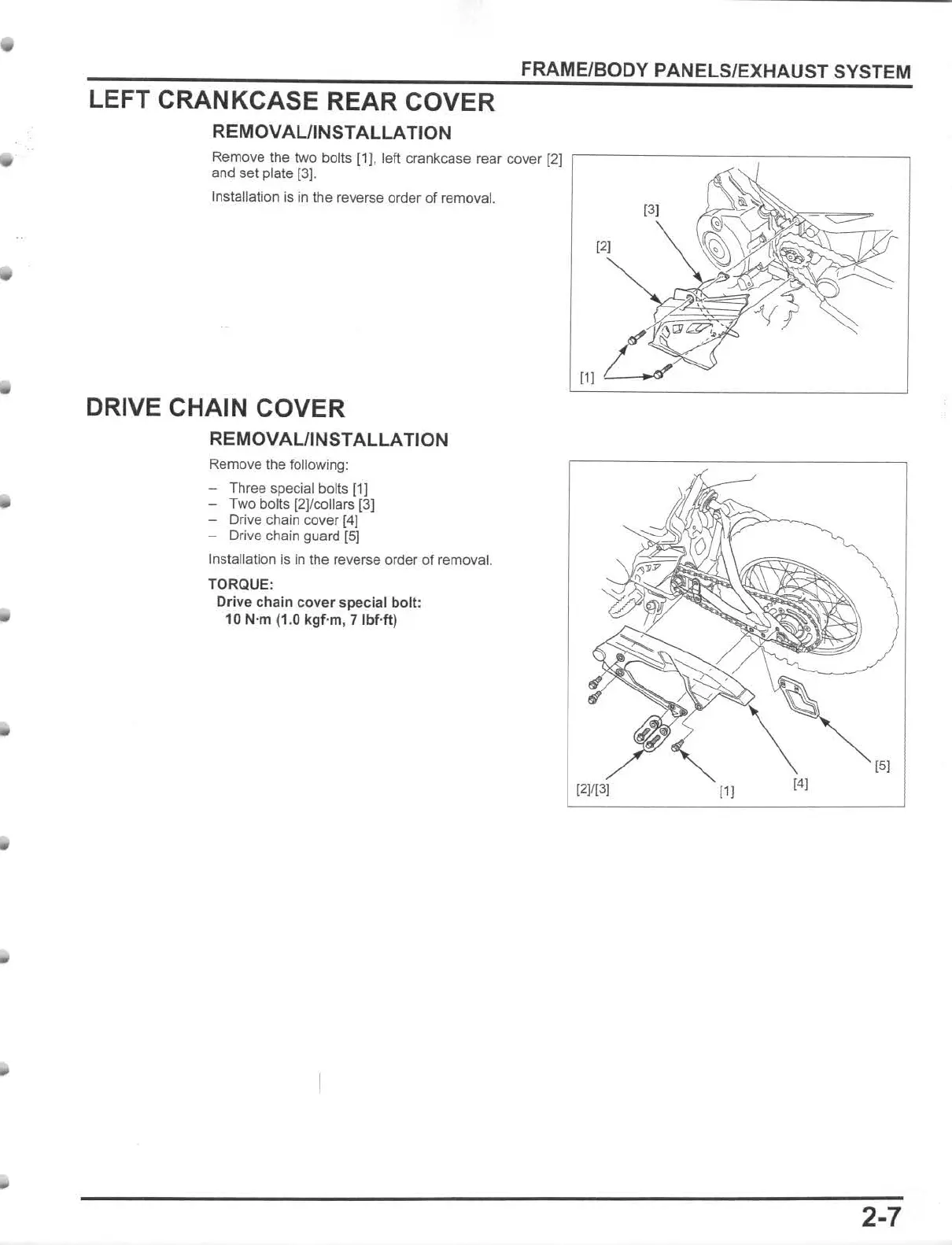

Honda CRF110F - Drive Chain Cover Removal;Installation; Left Crankcase Rear Cover Removal;Installation

LEFT CRANKCASE REAR COVER
REMOVAUINSTALLA TION
FRAME/BODY PANELS/EXHAUST SYSTEM
Remove the two bolts [1]. left crankcase rear cover [21 r---- -- ------, ---- -- -
and set plate (3].
Installation is in the reverse order of removal.
DRIVE CHAIN COVER
REMOVAUINSTALLATION
Remove the following:
- Three special bolts [1]
- Two bolts [2}1collars (3]
- Drive chain cover [4]
- Drive chain guard (5]
Installation is in the reverse order of removal.
TORQUE:
Drive chain cov er special bolt:
10 N'm (1 .0 kgf -m, 7 tbHt)
