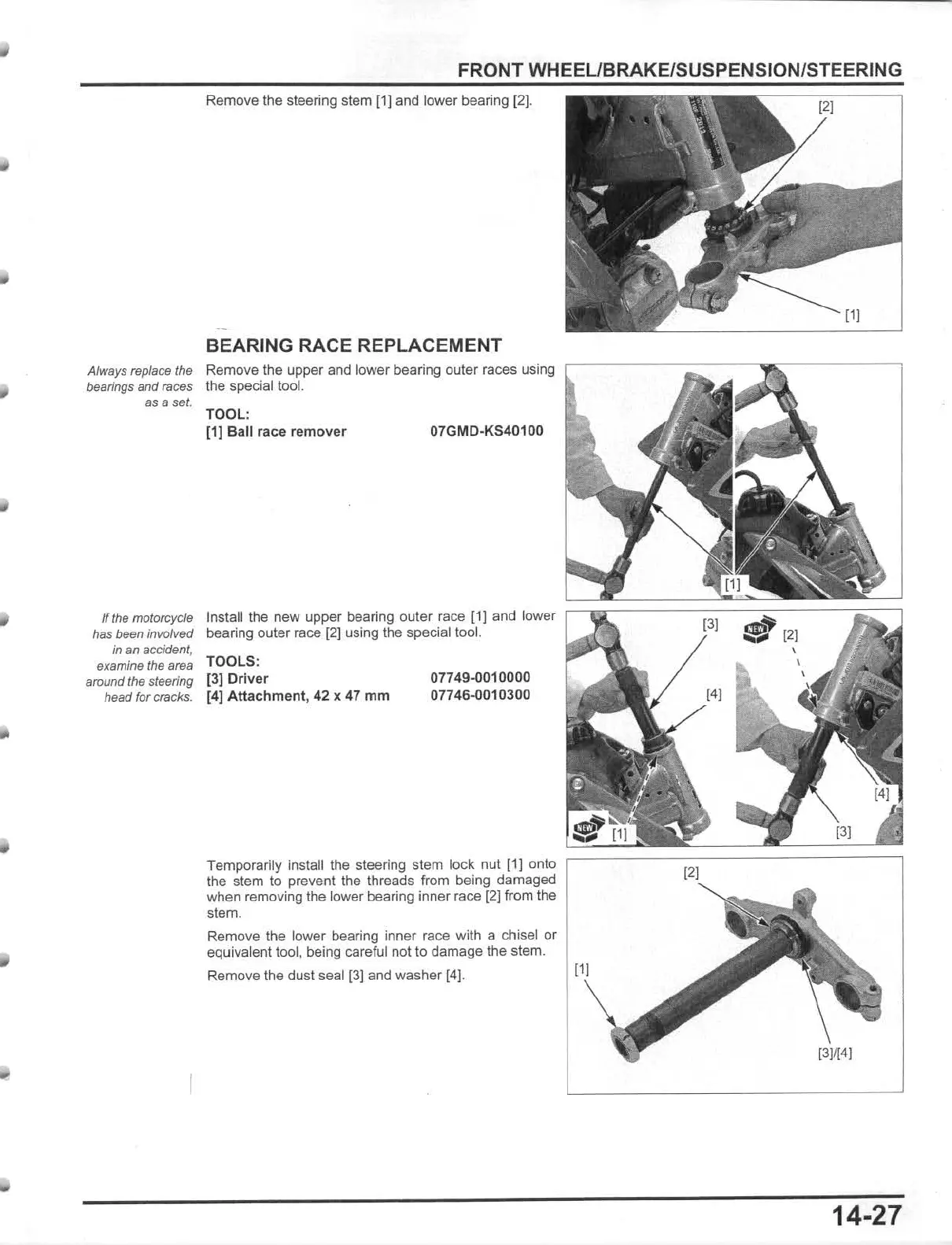

Honda CRF110F - Bearing Race Placement

FRONT WHEEUBRAKE/SUSPENSION/STEERING
Remove the steering stem [1 ) and lower bearing [ 2J .
BEARING RACE REPLACEMENT
Alw ays raplaee the Remove the upper and lo wer bearing outer races using ~---------~ ~ ------,
bearings and races the special tool.
as a sel.
TOOL :
[1] BaH race remover
07GMD-KS40100
Iflha motorcyc~ Install the n ew upper bearing outer race [ 1] and lower := ::;: ~===== ::::::':::: ~~~~~ ~=~
has baen involved bearing outer race [2 ) using the special too l.
in an accident,
examine the area TOOLS :
around 11'/6 steering (3) Dri ver
head for Clacks . [4] Attachment , 42 x 47 mm
07749"(}010000
07746..(J010300
Temporarily install the steering stem lock nut
PJ onto ~ ===~~~====~ =====~~
the stem to prevent the threads from being damaged
when removing the lower beari
ng inner race [2] from the
stem.
Remove the lower bearing inner race with a chisel or
equivalent tool, being careful
not to damage the stem.
Remove the dust seal (3] and washer (4].
14·27
