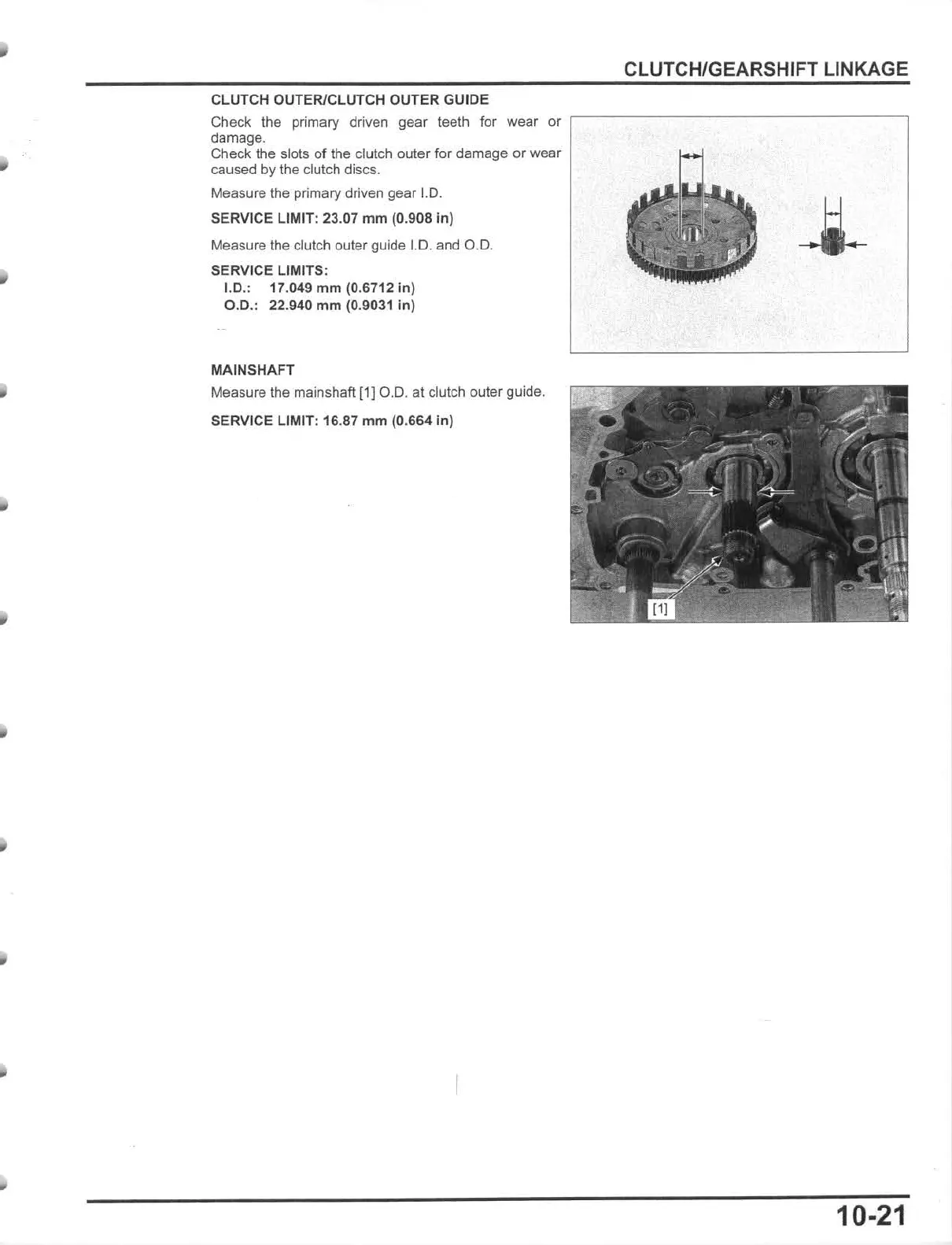

CLUTCH/GEARSHIFT LINKAGE
CLUTCH
OUTER/CLUTCH
DUrER
GUIDE
Check the primary driven gear teeth for wear or
,-------------------,
damage.
Check the slots of the clutch
outer
for damage or wear
caused by the clutch discs.
Measure the primary driven gear 1.0.
SERVICE LIMIT: 23.07
mm
(0.908 In)
Measure the clutch
outer
guide 1.0. and 0 .0 .
SERVICE LIMITS:
1.0.: 17.049 mm (0.6712 in)
0 .0
.:
22.940
mm
(0.9031 in)
MAINSHAFT
Measure the mainshaft {1]
0.0
.
al
clutch
outer
guide.
SERVICE LIMIT:
16
.87
mm
(0.
664
in)
10·21
