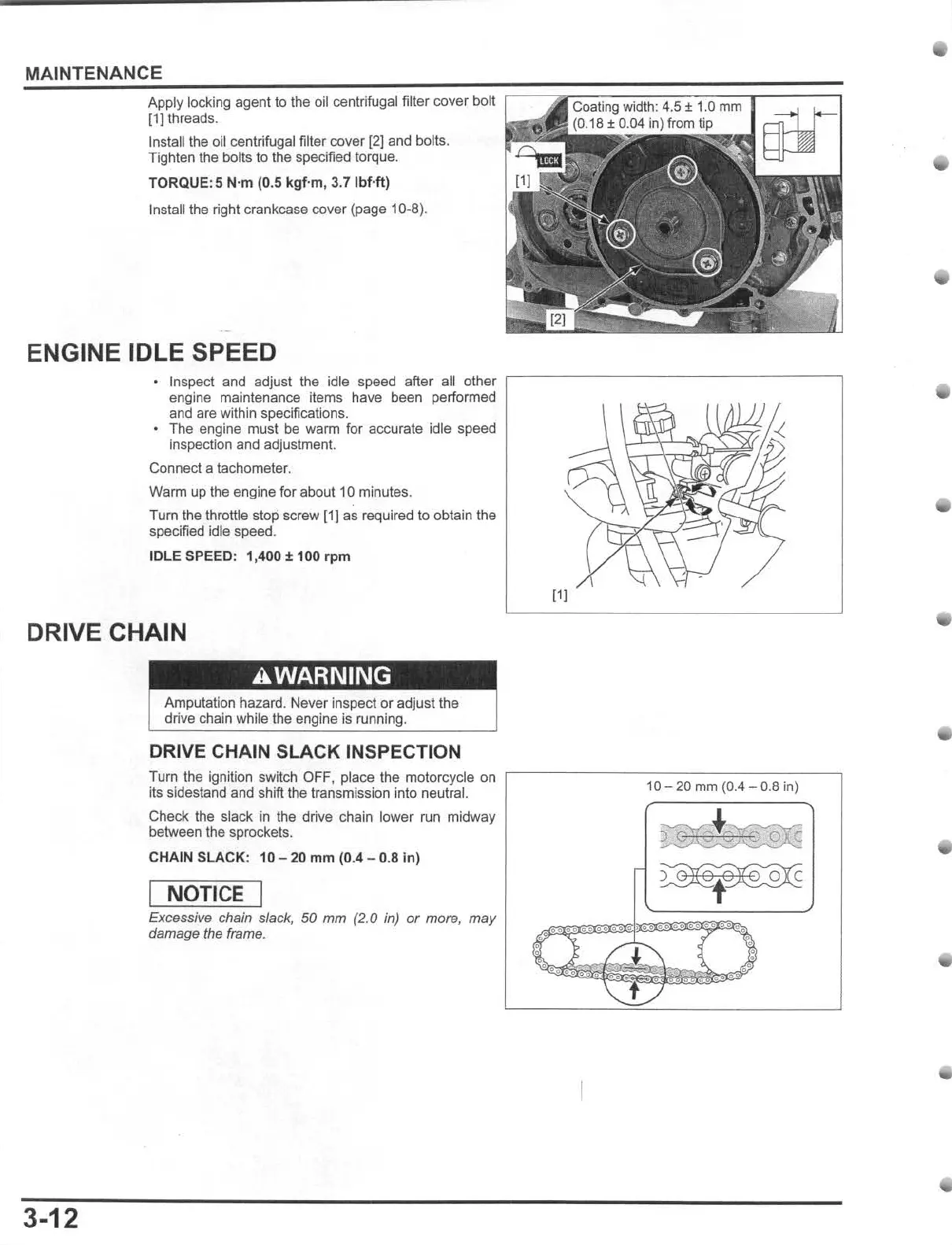

MAINTENANCE
Apply locl<ing agent to the oil centrifugal filter cover bolt
[1] threads.
Install the oil centrifugal filler cover
12]
and bolls.
Tighten Ihe bolls to the specifted torque.
TORQUE:5 N'm (0.5 kgf'm, 3.7
IbHt)
I
nslallthe
right crankcase cover (page 10-8
).
ENGINE IDLE SPEED
Inspect and adjust the idle speed after all olher ,
-------
---
--------,
engine maintenance items have been performed
and are within specifications.
The engine must
be
warm for accurate idle speed
inspection and adjustment.
Connect a tachometer.
Warm up the engine for about
10
minutes.
Tum
the throttle stop screw
[1
)
as
required to obtain the
specified idle speed.
IDLE SPEED: 1,400
± 100 r
pm
DRIVE CHAIN
3-12
Amputation hazard. Never inspect or adjust
the
drive chain while the
DRIVE CHAIN SLACK INSPECTION
Turn the ignition switch OFF, place the motorcycle on
its side stand and shift the transmission into neutral.
Check the slack
in
the drive chain lower run midway
between the sprockets.
CHAIN SLACK:
10
-
20
mm (0.4 - 0.8 In)
I
NOTICE
I
Excessive chain slack, 50
mm
(2.0 in)
or
more, may
damage
the
frame.
11]
10
- 20 mm (0.4 - 0.8 in)
~
~
