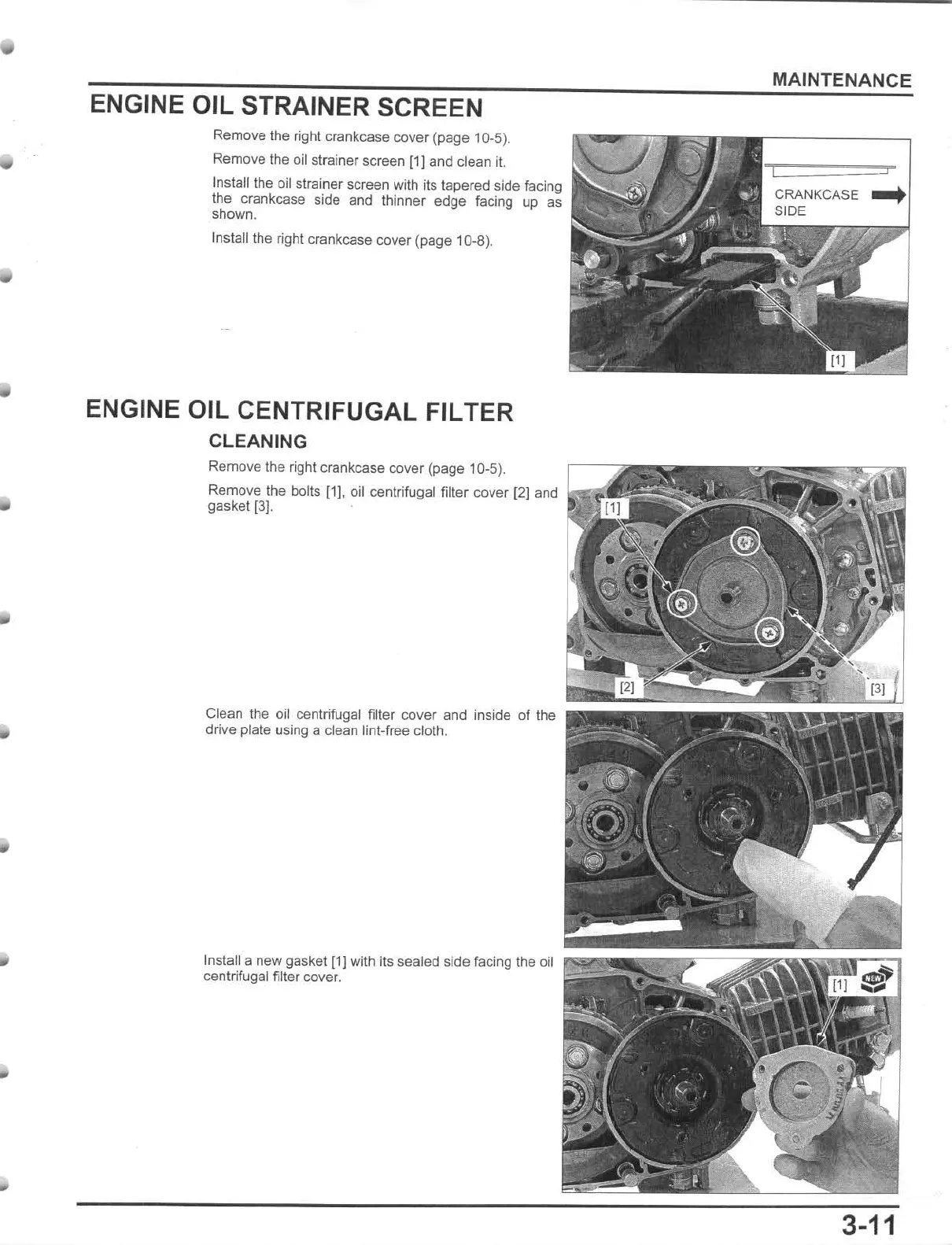

ENGINE OIL STRAINER SCREEN
Remove the right crankcase cover (page 10-5).
Remove the oil st rainer screen [1] and clean it.
Install the oil strain er screen with its tapered side facing
the crankcase side and thinner edge facing up as
shown.
Install the right crankcase cover (page 10-8).
ENGINE OIL CENTRIFUGAL FILTER
CLEANING
Remove the right crankcase cover (page 10-5 ).
Remove the bolls (1). oil centrifugal filler cover [2] and
gaskeI13].
Clean the oil centrifugal filter cover and inside of the
drive plate using a clean lint-free cloth.
Install a
new gasket [1) with its sealed side facing the oil ~~:::~~!!!!~
centrifugal filter cover.
MAINTENANCE
3-11
