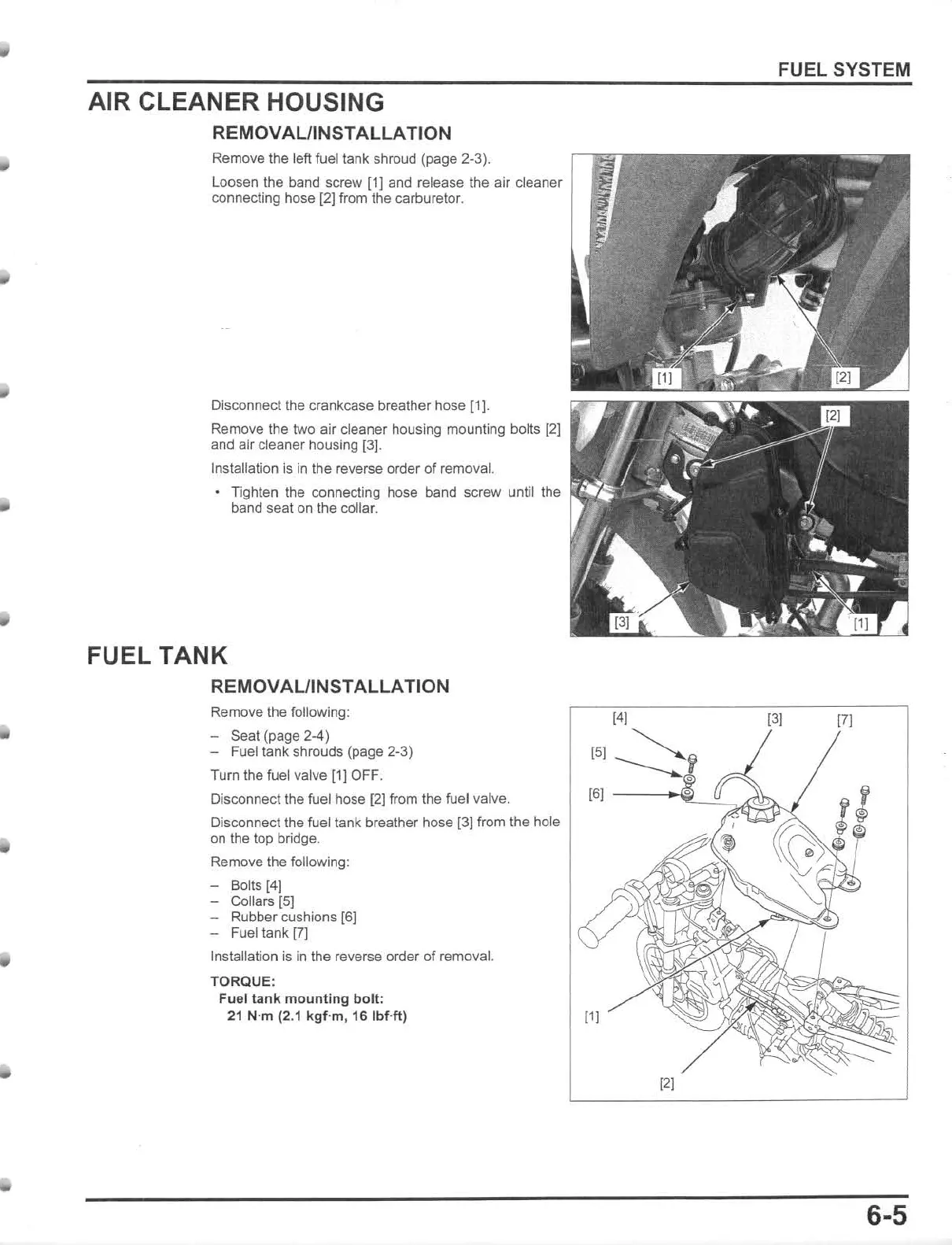

AIR CLEANER HOUSING
REMOVAL/INSTALLATION
Remove the left fuel tank shroud (page 2-3).
loosen the band screw [1] and release the air cleaner
connecting hose [2) from the carburetor.
Disconnec t the crankcase breather hose [1].
Remove the two air cleaner housing mounting bolts [2]
and
air cleaner housing (3J.
Ins lallation is in the reverse order of removal.
Tighten the connecting hose band screw until the
band seat on the collar.
FUEL TANK
REMOVAL/INSTALLATION
Remove the following:
- Seat (page 2-4)
- Fuel tank shrouds (page 2-3)
Turn the fuel valve [1]
OFF.
Disconnect the fuel hose [2] from the fuel valve.
Disconnecllhe fuel tank breather hose [3] from the hole
on the top bridge.
Remove the following:
- Bol ls [4]
- Collars [5]
-
Rubber cushions [6)
- Fuel tank [7)
Installation is in the reverse order of removal.
TORQUE:
Fuel tank mounting bolt :
21 N"m (2.1 kgf "m, 161bHt )
