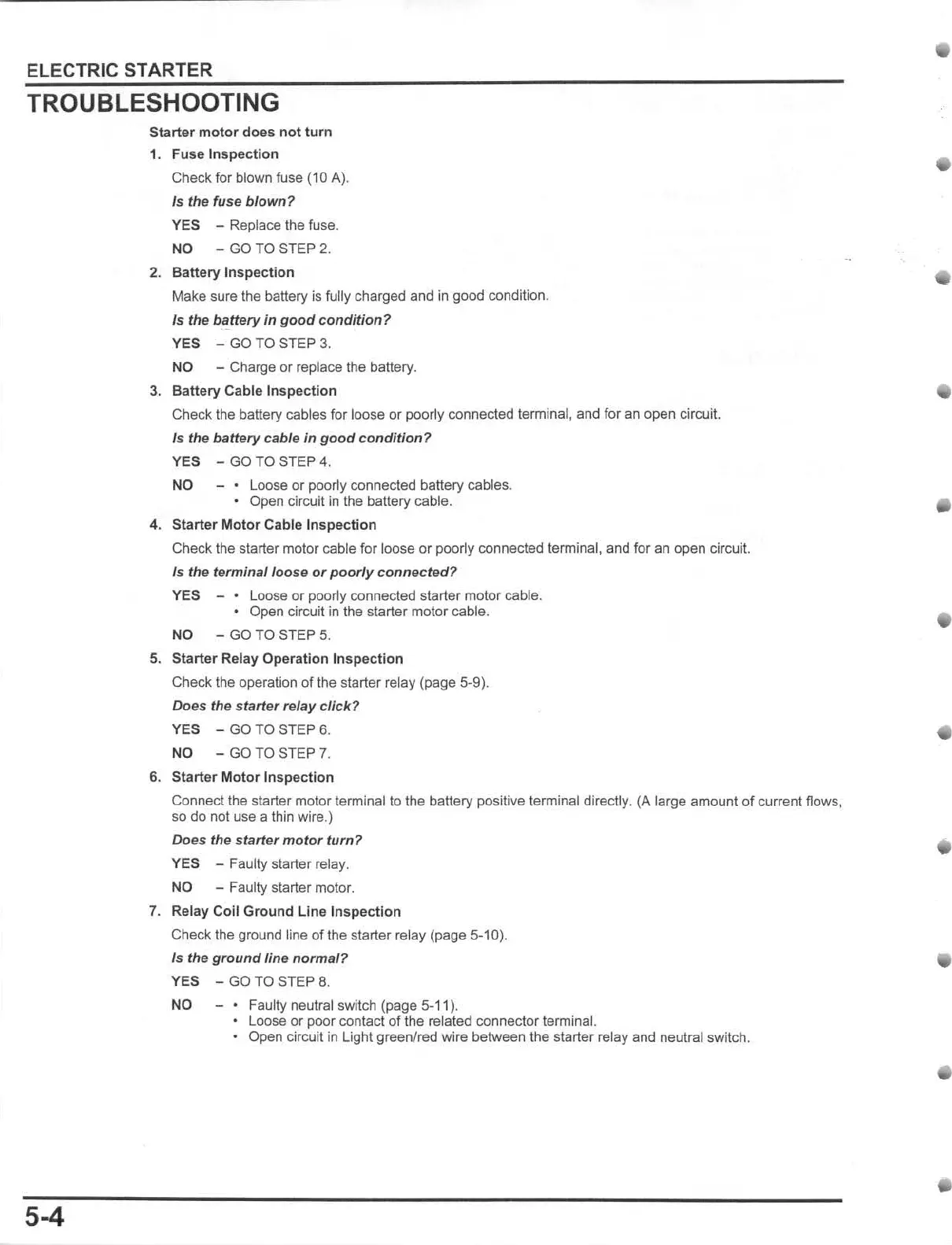

ELECTRIC STARTER
TROUBLESHOOTING
5-4
Starter motor does not turn
1. Fuse
In
spection
Check for blown fuse (10 A).
Is the fuse
blown?
YES - Replace the fuse.
NO -
GO
TO
STEP 2.
2.
BaHery
Inspection
Make
SUfe
the battery is fully charged and in good condition.
Is
the battery
in
good
condition?
YES - GO
TO
STEP
3.
NO
-
Charge
or
replace
the
battery.
3.
Battery Cable Inspection
Check the battery cables for loose or poorly connected terminal, and for an open circuit.
/s the
battery
cable
in
good
condition?
YES - GO
TO
STEP 4.
NO
-'
Loose
or
poorly connected battery cables.
• Open circuit
in
the battery cable.
4.
Starter
Motor
Cable
Inspection
Check the starter motor cable for loose or poorly connected terminal, and for an open circuit.
Is the terminal loose
or
poorly
connected?
YES
-'
Loose or poorly connected starter motor cable.
• Open circuit
in
the starter
motor
cable.
NO - GO
TO
STEP
5.
5.
Starter
Relay
Operation
Inspection
Check the operation of the starter relay (page 5¥9).
Does the starter relay
click?
YES - GO
TO
STEP
6.
NO - GO
TO
STEP 7.
6.
Starter
Motor
Inspection
Connect the starter motor terminal to the battery positive terminal directly. (A large amount
of
current flows,
so do not use a thin wire.)
Does
the
starter
motor
turn?
YES - Faulty starter relay.
NO - Faulty starter motor.
7.
Relay
Coil
Ground
Une
Inspection
Check the ground line
of
the starter relay (page
5--10)
.
Is the
ground
line
normal?
YES - GO
TO
STEP 8.
ND
Faulty neutral switch (page
5--11).
Loose or poor contact of t
he
related connector terminal.
Open circuit in Light greenfred wire between the starter relay and neutral switch.
•
•
•
•
To Next Page
