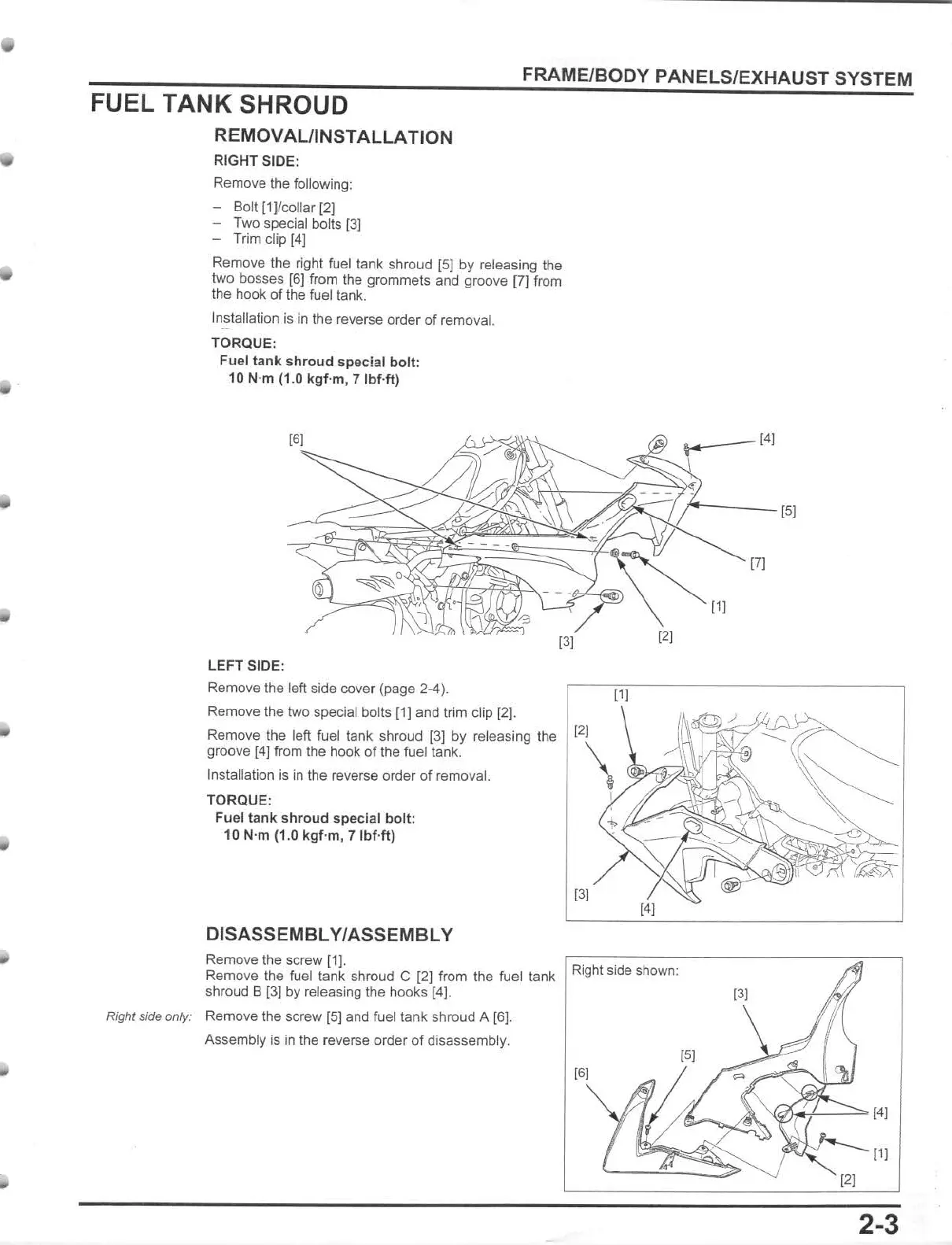

FRAME/BODY PANELS/EXHAUST SYSTEM
FUEL TANK SHROUD
REMOVAUINSTALLATION
RIGHT SIDE:
Remove the following:
- Bolt
(1}1collar
[2]
- Two special bolts [3]
- Trim clip
14]
Remove the right fuel tank shroud
15J
by releasing the
two
bosses
[61
from the grommets and groove [7) from
the
hook
of
the fuel tank.
Installation is in
the
reverse
order
of
removal.
TORQUE
:
Fuel tank
shroud
special
bolt
:
10 N'm
(1
.0
kgf
'm,
7Ibf
·ft)
161
LEFT
SIDE
:
Remove the left side cover (page 2-4).
Remove the two special bolls [1] and trim
clip [2].
Remove the left fuel tank shroud [3] by releasing the
[2]
groove
[4]
from the hook
of
the fuel tank.
Installation
Is
in the reverse
order
of
removal.
TORQUE
:
Fuel
tank
shroud
special
bolt
:
10
N'm
(1
.0
kgf
'm,
7lbHt)
DISASSEMBLY/ASSEMBLY
131
111
Remove the screw Ill.
Remove the
fuel
t
an
k
sh
roud C
(2)
from the fuel lank
shroud B
(3)
by releasing
the
hooks
[4J.
Right side shown:
Right
side
only: Remove the screw [5) and fuel tank shroud A
[61.
Assembly is
in
the reverse order
of
disassembly.
161
.....
_--141
171
111
121
2-3
