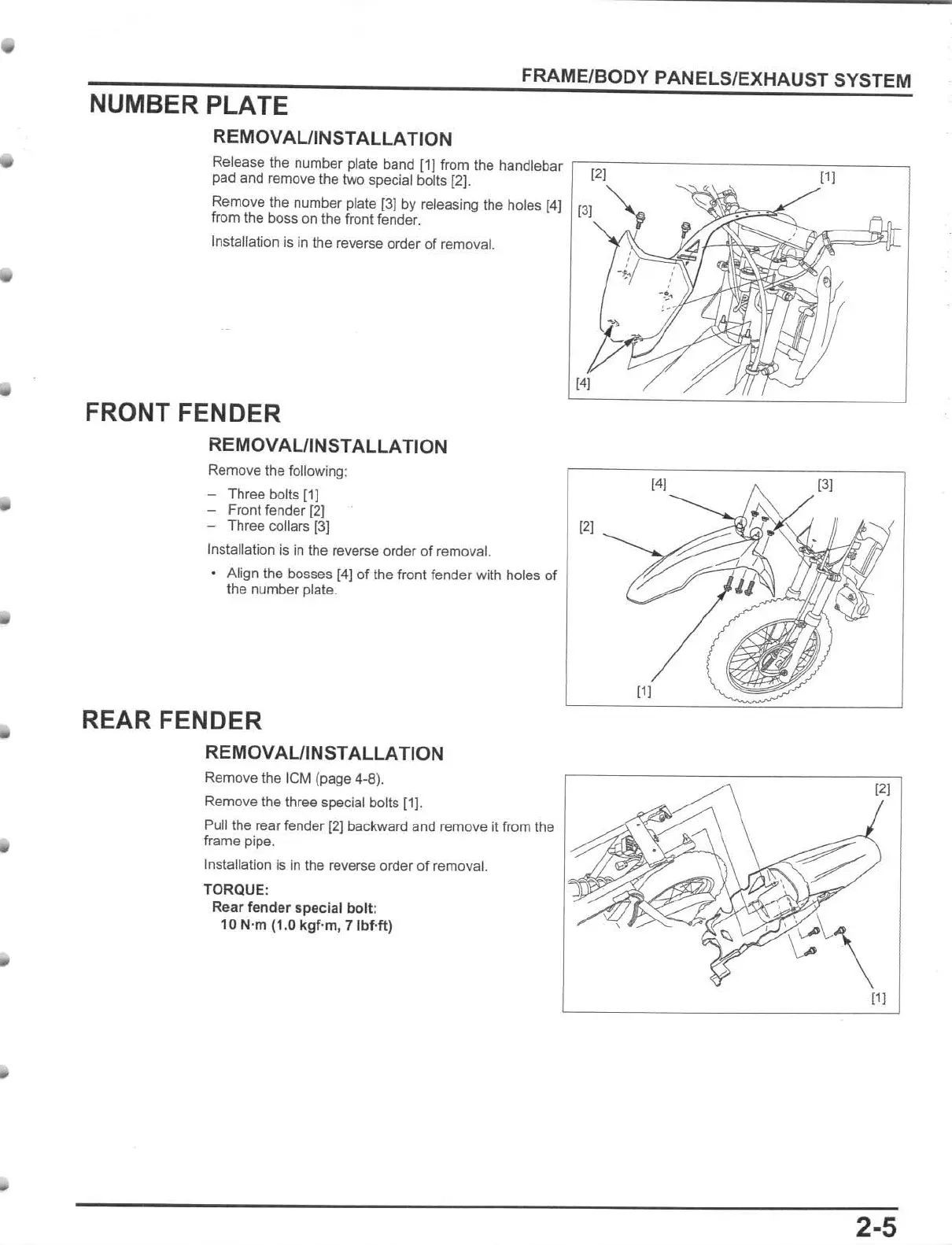

FRAME/BODY PANELS/EXHAUST SYSTEM
NUMBER PLATE
REMOVAUINSTALLATION
Release the number plale band
III
from the handlebar
,,=-----
-
--
-
----:-::------,
pad and remove the two special bolts [2].
Remove the number plale
[3)
by releasing the holes [4]
from the boss on the front fender.
installation is in the reverse order of removal.
FRONT FENDER
REMOVAUINSTALLATION
Remove the following:
- Three bolls [1]
- Front fender (2]
-
Three
collars
131
Installation
Is
in
the reverse order of removal.
Align the bosses
[4)
of
the front fender with holes
of
the number plate.
REAR FENDER
REMOVAUINSTALLATION
Remove the l
eM
(page 4-8).
Remove the three special bolts [1].
Pull the rear fender
(2)
backward and remove it from the
frame
pipe.
Installation is in the reverse order
of
removal.
TORQUE:
Rear fender special bolt:
10 N'm (1.0
kgf
'm,
7lbHt)
(4J
(3J
(2J
(2J
'
v::
"'
\
(1
J
2-5
