Honda CRF110F - Right Crankcase Cover Assembly

Make sure that the
snap ring Is firmly
seated in the
groove.

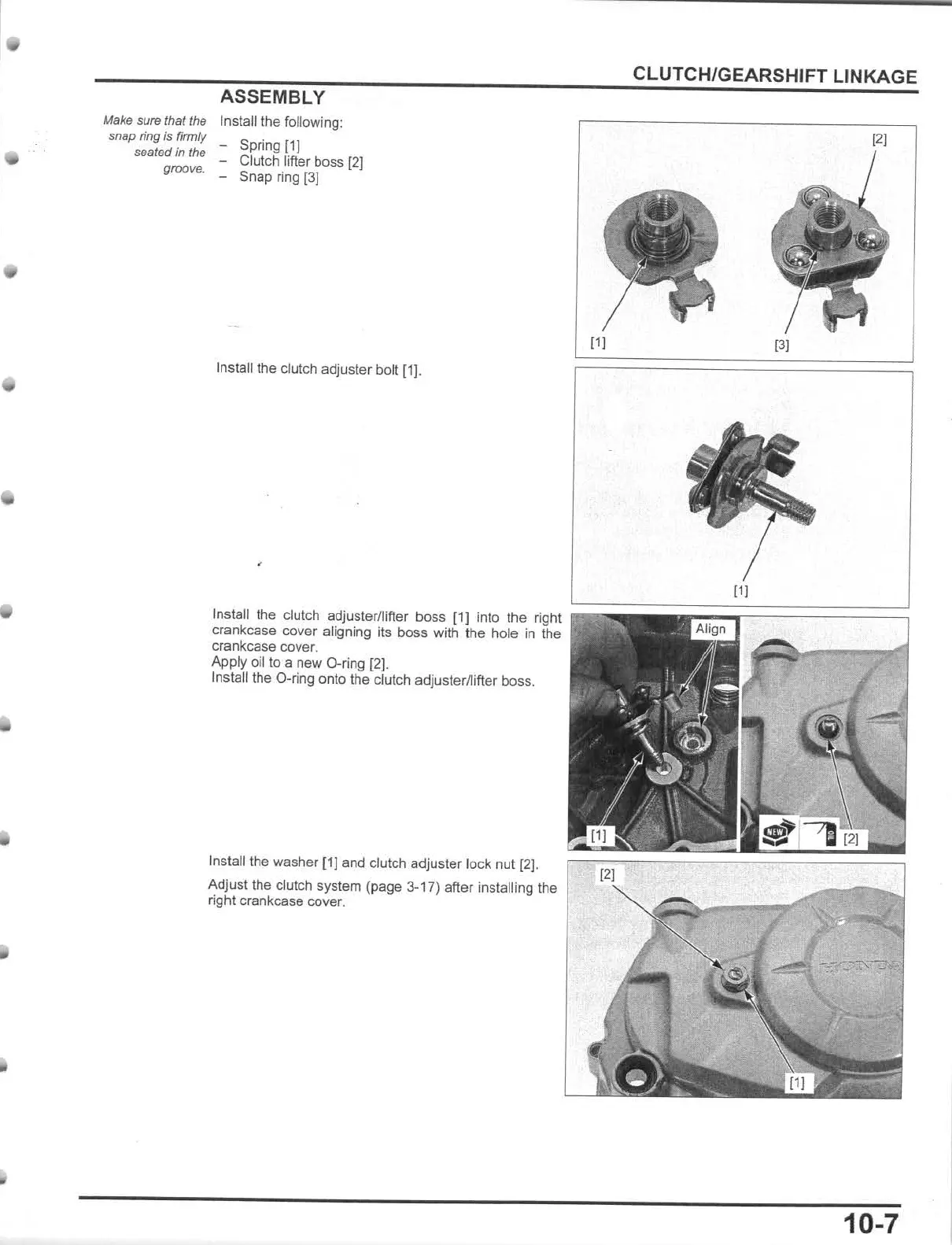

ASSEMBLY
Install the following:
- Spring!1}
- Clutch lifter boss [2)
- Snap ring [3]
Install the dutch adjuster bolt (1).
Install the clutch adjusterllifter boss (1) into the right
crankcase cover aligning its boss with Ihe hole in Ihe
crankcase cover.
Apply oil to a new O-ring [2].
Inslall the D·ring onto the clutch adjuster/lifter boss.
Install the washer {11 and clutch adjuster lo ck nut 121.
Adjusllhe clutch system (page 3-17) after installing Ihe
right crankcase cover.
CLUTCH/GEARSHIFT LINKAGE
121
11) 13)
10-7
