FRONT WHEEUBRAKE/SUSPENSION/STEERING

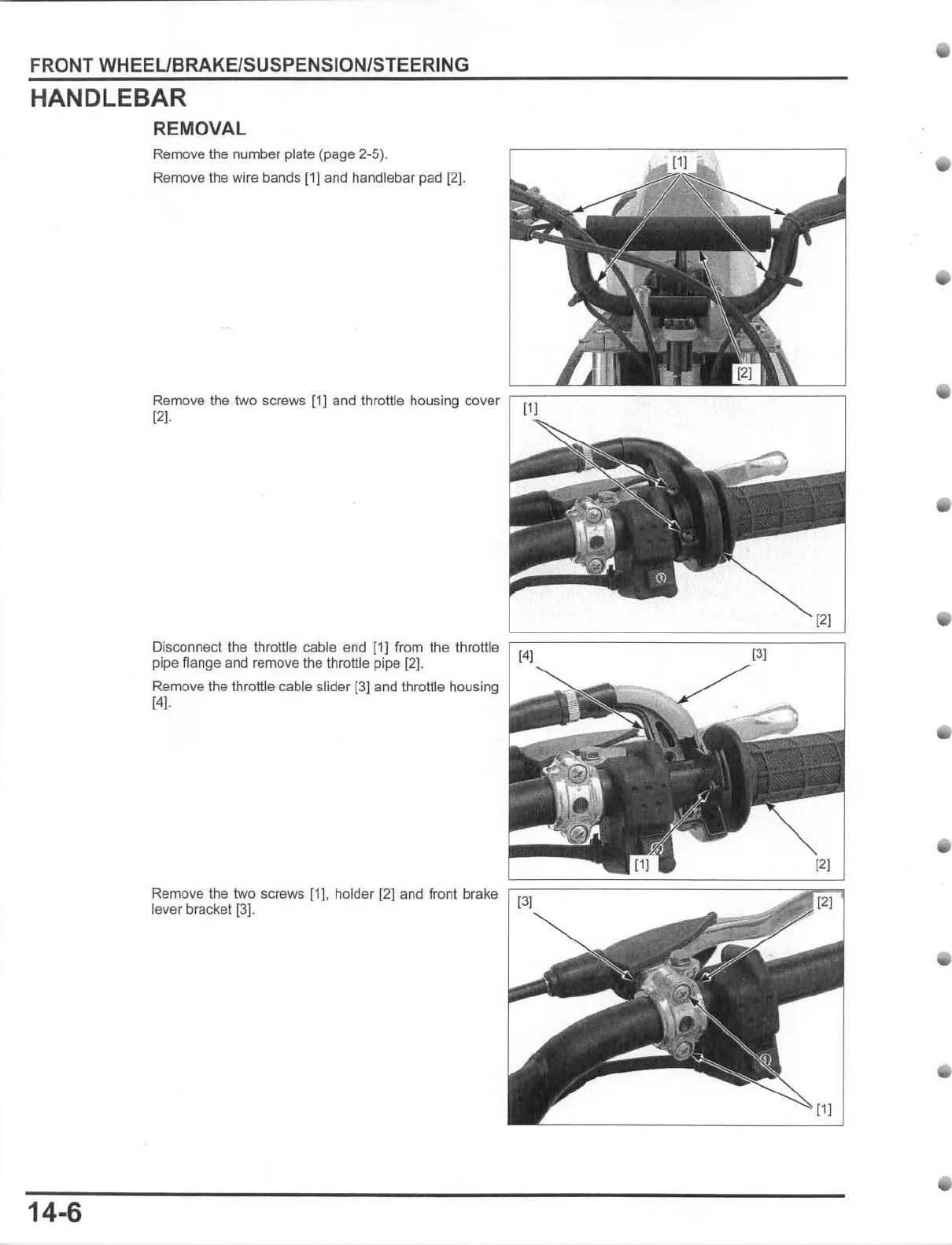

HANDLEBAR
REMOVAL
14·6
Remove the number plate (page 2-5).
Remove the wire bands [1] and handlebar pad
[21.
Remove the two screws [1] and throttle housing cover ~= ~~~~ """ """~~ """~ =~~ =~
121 .
121
Disconnect the throttle cable end (1] from the throttle ~ 14 = 1 ======= ====:::====~
pipe flange and remove the throttle pipe [2].
Remove the throttle cable slider
[31 and throttle housing
141 ·
Remove the two screws [11. holder {2] and front brake
lever bracket [3J .
