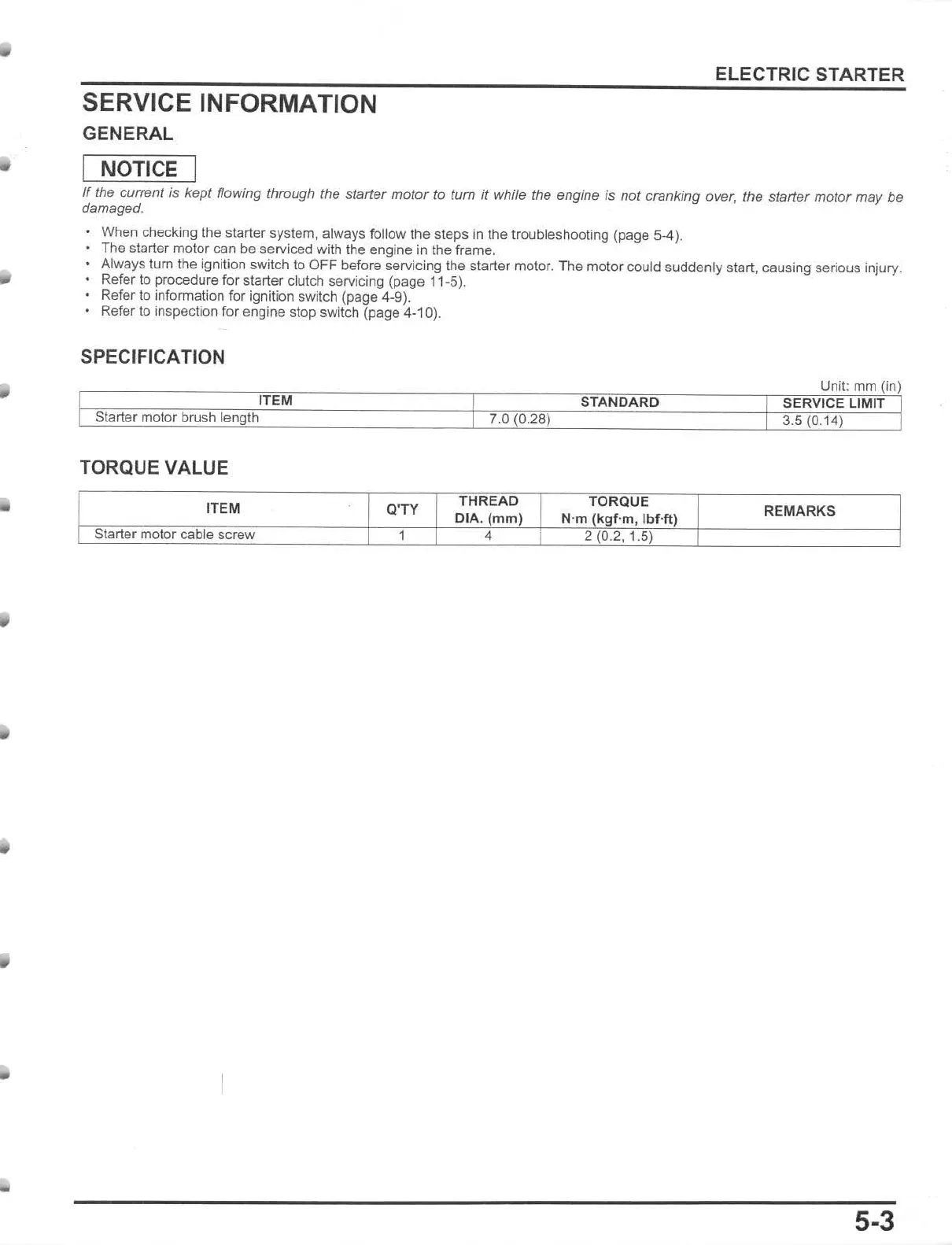

SERVICE INFORMATION
GENERAL
I
NOTICE
ELECTRIC STARTER
If
the
current is kept flowing through the starter motor to tum
it
while the engine is not cranking
Oller,
the starter motor may be
damaged,
When checking the starter system, always follow
the
steps
in
the troubleshooting (page 5-4).
The starter motor can be serviced with the engine in the frame.
Always
tum
the
ignition switch to
OFF
before servicing the starter motor.
The
motor
could suddenly start, causing serious injury.
Refer
to procedure for starter clutch servicing (page
11
-5).
Refer to information for ignition switch (page 4-9).
Refer to inspection for engine stop switch (page 4-10).
SPECIFICATION
I
TEM
Starter motor brush length
TORQUE VALUE
ITEM
Q'TY
Starter motor
cable
screw
1
STANDARD
7.0 (0.28)
THREAD
TORQUE
DIA
. fmml N"m l
kgf
'm, I
bHt
l
4
2 (0.2,1.5)
Unit: mm (in)
SERVICE LIMIT
3.5 (0.
14
)
REMARKS
5-3
