Honda CRF110F - Handlebar Installation

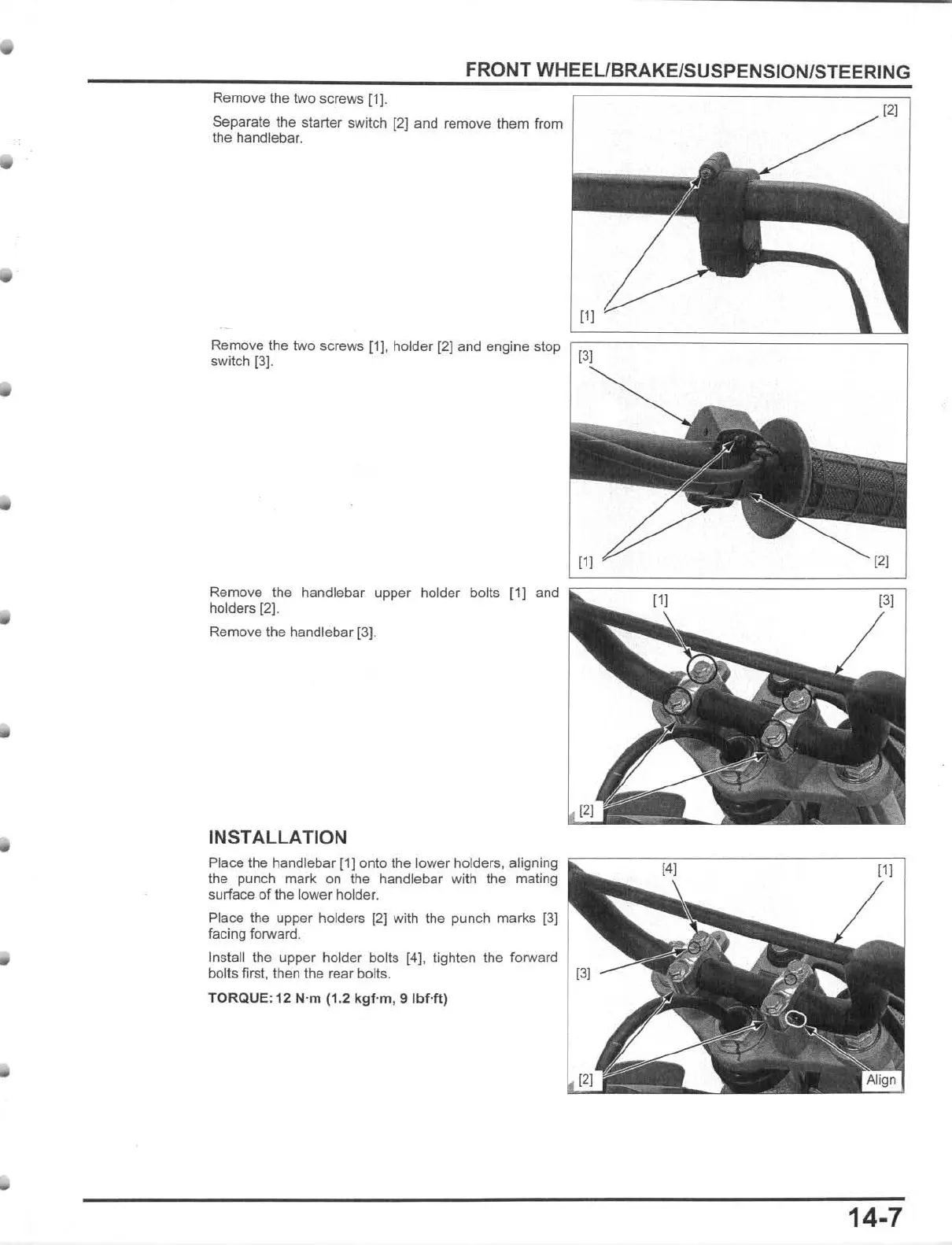

FRONT WHEEUBRAKE/SUSPENSION/STEERING
Remove the two screws [1].
Separate the starter switch [21 and remove them from
the handlebar.
Remove the two screws [1), holder [2] and engine stop [3]
switch [3].
11)
12)
{2{
Remove the handlebar upper holder bolts (1] and ~ === =============;==
holders [2) .
Remove the handlebar [3J.
INSTALLATION
Place the handlebar {1] onto the lower holders, aligning ~ ------cc;,---------- --c""
the punch mark on the handlebar with the mating
surface of the lower holder.
Place the upper holders [21 with the punch marks [3]
facing forward.
Inst all the upper holder bolls [4], lighten the forward
bolts first, then the rear bolts.
TORQUE:12 N-m (1 .2 kgf 'm, 9lbHt )
14-7
