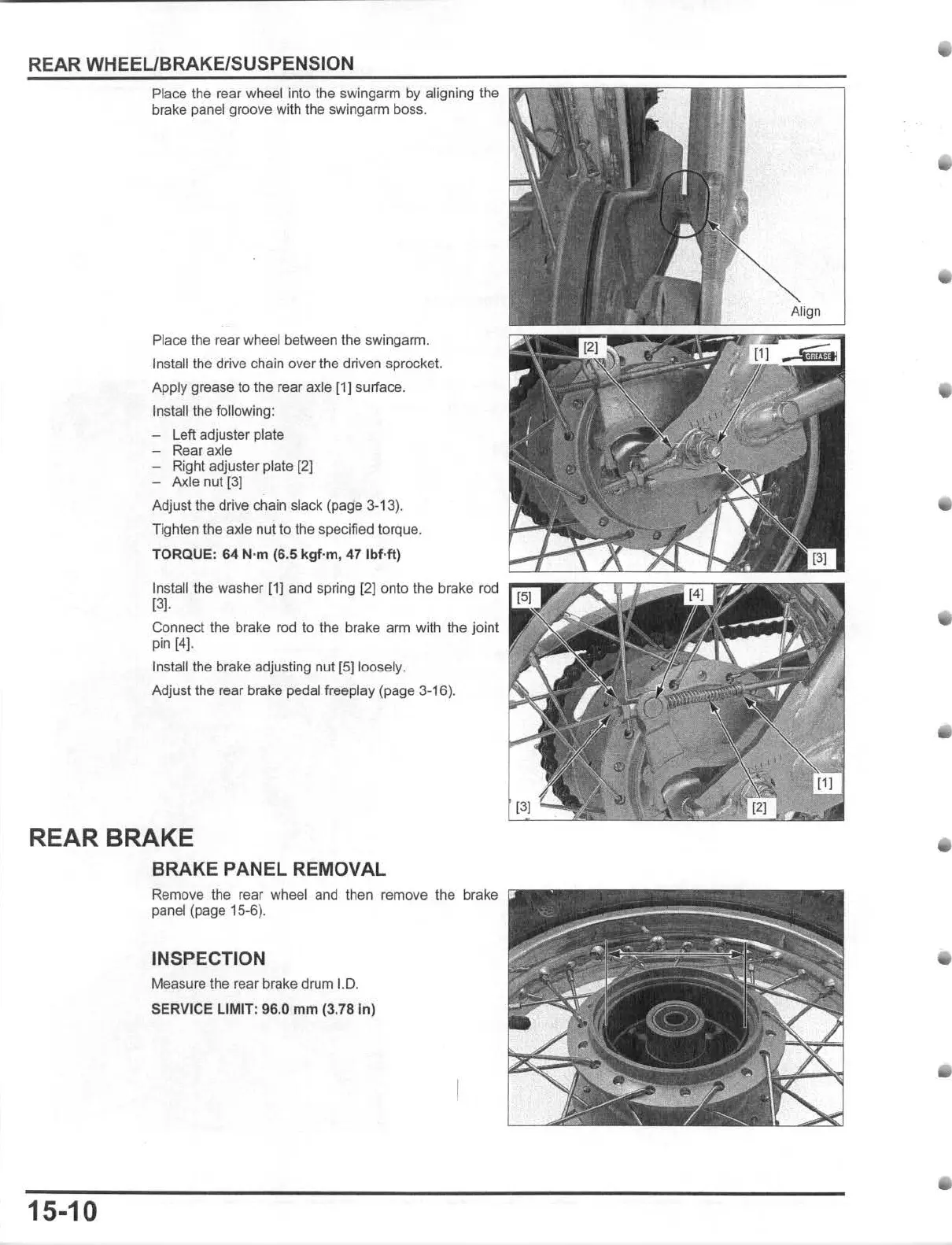

REAR WHEEUBRAKE/SUSPENSION
Place the rear wheel into the swingarm
by
aligning the
brake panel groove with the swingarm boss.
Place the rear wheel between the swingarm.
Install the drive chain over the driven sprocket.
Apply grease
to
the rear axle
11
1 surface.
Install
the
following:
- Left adjuster plale
- Rear axle
- Right adjuster plate [2]
- Axle nut [3]
Adjust the drive chain slack
(p
age
3-
1
3).
Tighten the axle nul to the specified torque.
TORQUE: 64 N'm
(6
.5
kgf
'm, 47
IbHt)
~~~~~~~~!~~
Install the washer
[1
J and spring [2] onto the brake rod ;
1
31.
Connect the brake
rod
to the brake arm with the jOint
pin
[4].
Install the brake adjusting nut
[5J
loosely.
Adjust the rear brake pedal freeplay (page 3-16),
REAR BRAKE
15-10
BRAKE PANEL REMOVAL
Remove
the
rear wheel
and
then
remove
the
brake
panel (page 15-S
).
INSPECTION
Measure the rear brake drum I.D.
SERVICE LIMIT: 9
6.
0
mm
(3.78 I
n)
•
