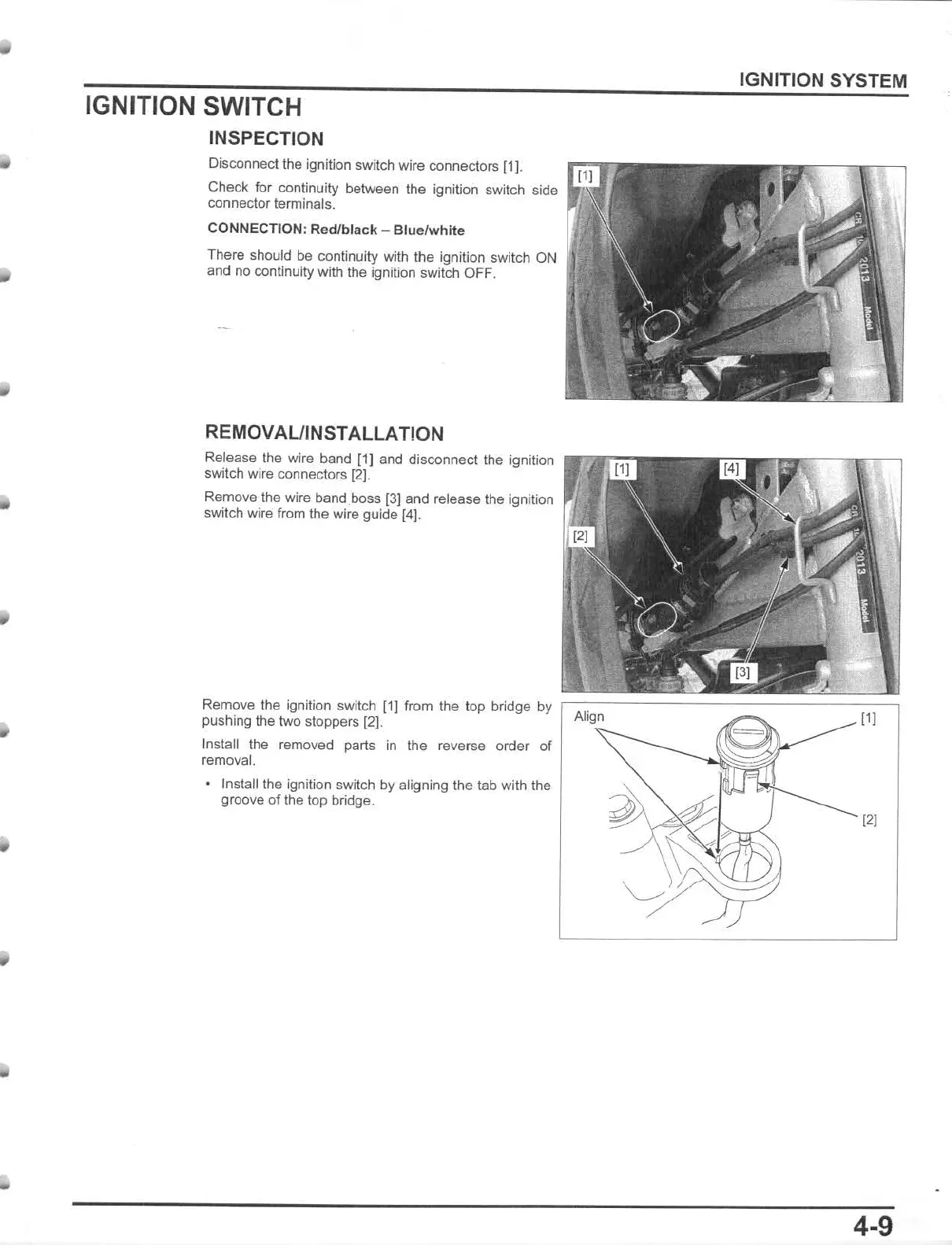

IGNITION SWITCH
INSPECTION
Disconnect the ignition switch wire connectors [1).
Check for continuity between Ihe igniUon switch side
connector terminals.
CONNECTION: Red/
black
-
Bluelwhite
There should
be
continuity with
the
ignition switch ON
and no continuity with
the ignition switch OFF.
REMOVAlIlNSTALLA
TION
Release Ihe wire band [1) and
disconnect
the ignition
switch wire connectors [2).
Remove the wire
band
boss
13)
and release the ignition
switch wire from the wire guide [4].
Remove the ignition switch [1] from the t
op
bridge by
pushing the two stoppers [2].
Install the removed parts
in
the reverse order
of
removal.
Inslalithe ignition switch
by
aligning the tab with the
groove
of
the
lop
bridge.
IGNITION SYSTEM
4-9
