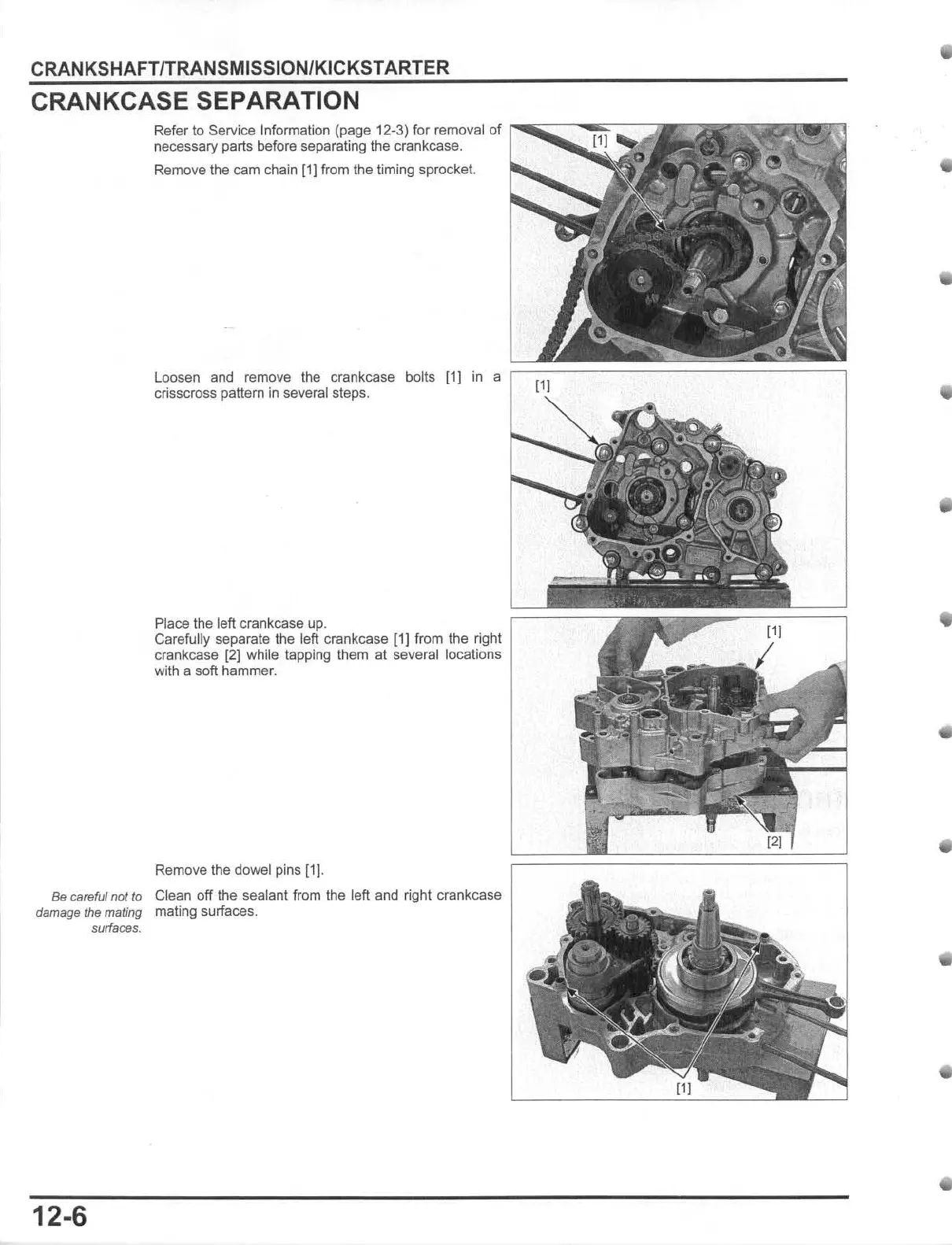

CRANKSHAFTITRANSMISSION/KICKSTARTER
CRANKCASE SEPARATION
Refer to Service Information (page 12-3) for removal
of
necessary parts before separating the crankcase.
Remove the cam chain
(1)
from the timing sprocket.
Loosen
and
remove
the
crankcase bolts
[1J
in a
~
~~IIIIIIIIIIII
IIIIIIIIIIII
~
::'
''''='''''~~~I11111~
crisscross pattern
in
several steps.
[1J
Place
the
left
crankcase
up
.
Carefully separate the left crankcase [1) from the right
crankcase [2] while tapping them at several locations
with a soft hammer.
Remove the dowel pins [1].
Be
careful
not
fo
Clean off
the
sealant from the left
and
right crankcase
damage the mating mating surfaces.
surfaces.
