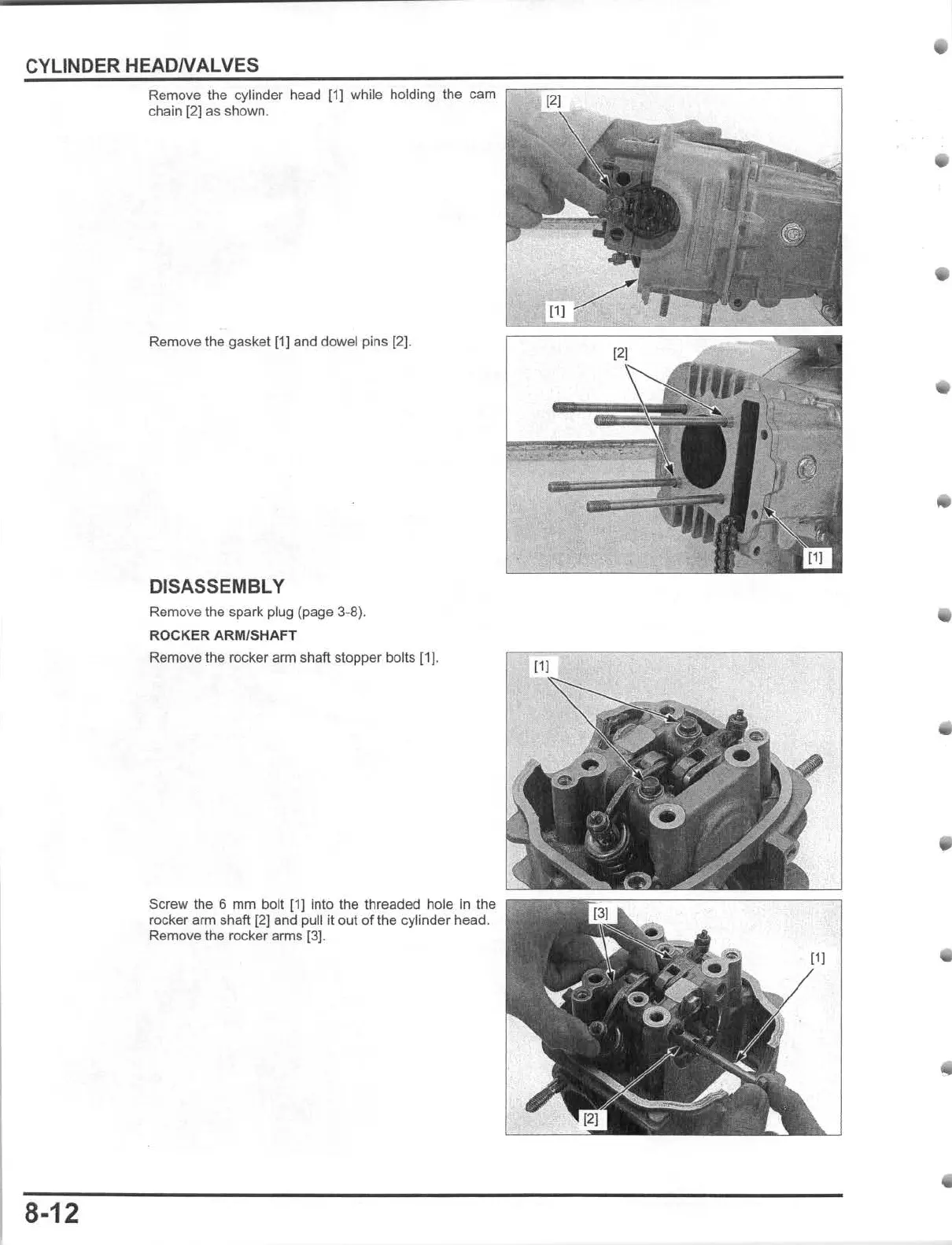

CYLINDER HEADNALVES
8·12
Remo .... e the cylinder head [1] while holding the cam
chain [2] as shown,
Remove the gasket [1 J and dowel pins [2].
DISASSEMBLY
Remove the spark plug (page 3-8).
ROCKER ARM/SHAFT
Remove the rocker ann shaft stopper bolls [1].
Screw the 6 mm bolt [ 1] into t he threaded hole in the
rocker arm sha ft [2J and pull it out of the cylinder head.
Remove the rocker arms [3J .
•
•
