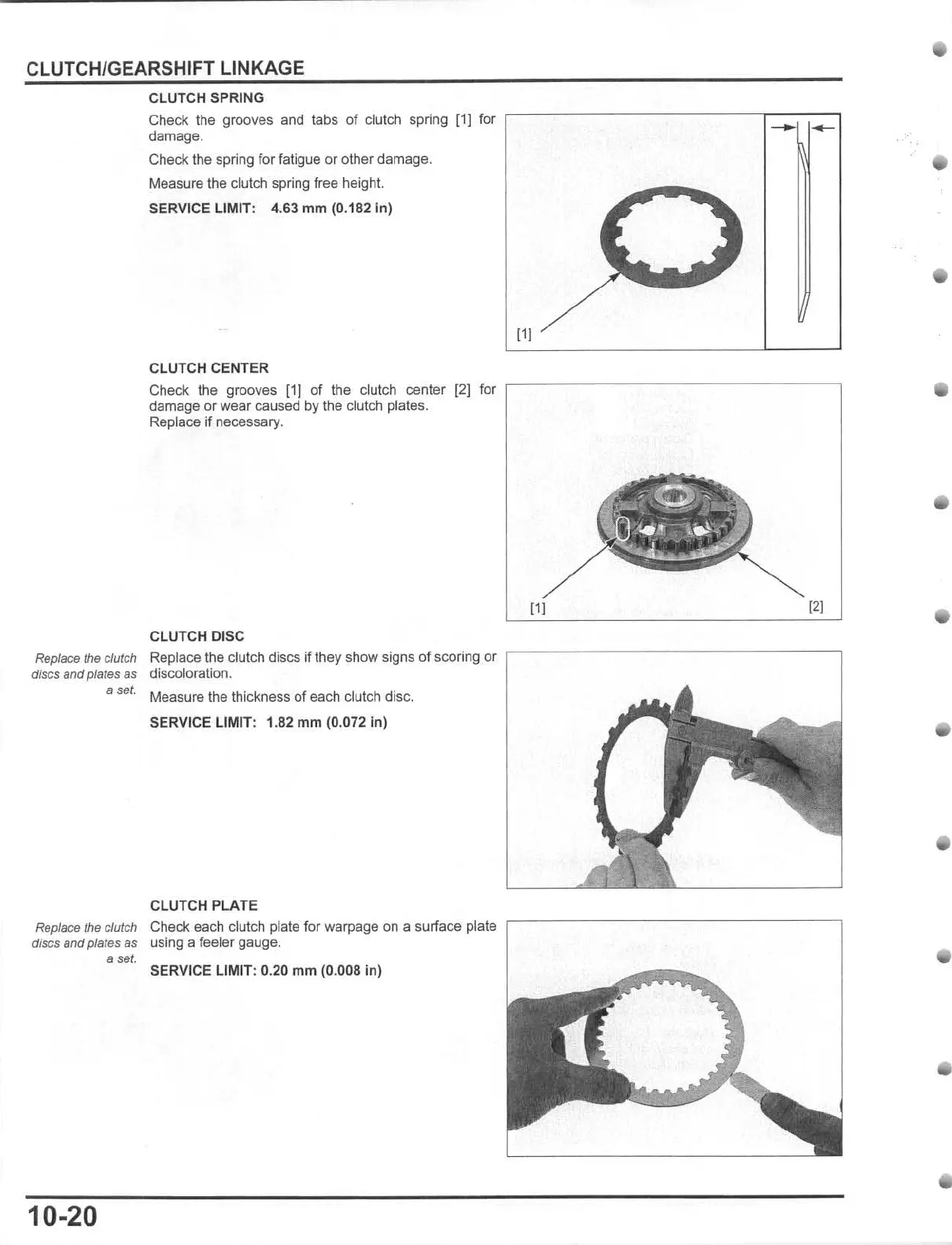

CLUTCH/GEARSHIFT LINKAGE
Replace the clutr;/)
discs and plates 8S
sse!.
CLUTCH SPRING
Check the grooves and tabs of clutch spring (1] for ,------------- ,----,
damage . - -
Check the spring for fatigue or other damage.
Measure t he clutch spring free height.
SERVICE LIMIT: 4. 63 mm (0 . 182 In)
CLUTCH CENTER
111
Check th e grooves [1] of the clut ch center 121 for ,------------------,
damage or wear caused by the clutch plates.
Replace
if necessary.
111
121
CLUTCH DISC
Replace the clutch discs
if t hey show signs of scoring or , --- ---------------,
discoloration.
Measure the thickness
of each clutch di sc .
SERVICE LIMIT: 1.82
mm (0.072 in)
CLUTCH PLATE
Replace the clutch Check each clutch plale for warpage on a surface plate
discs
and plales 8S using a feeler gauge.
8S81.
SERVICE LIMIT: 0.20 mm (0 .008 In)
