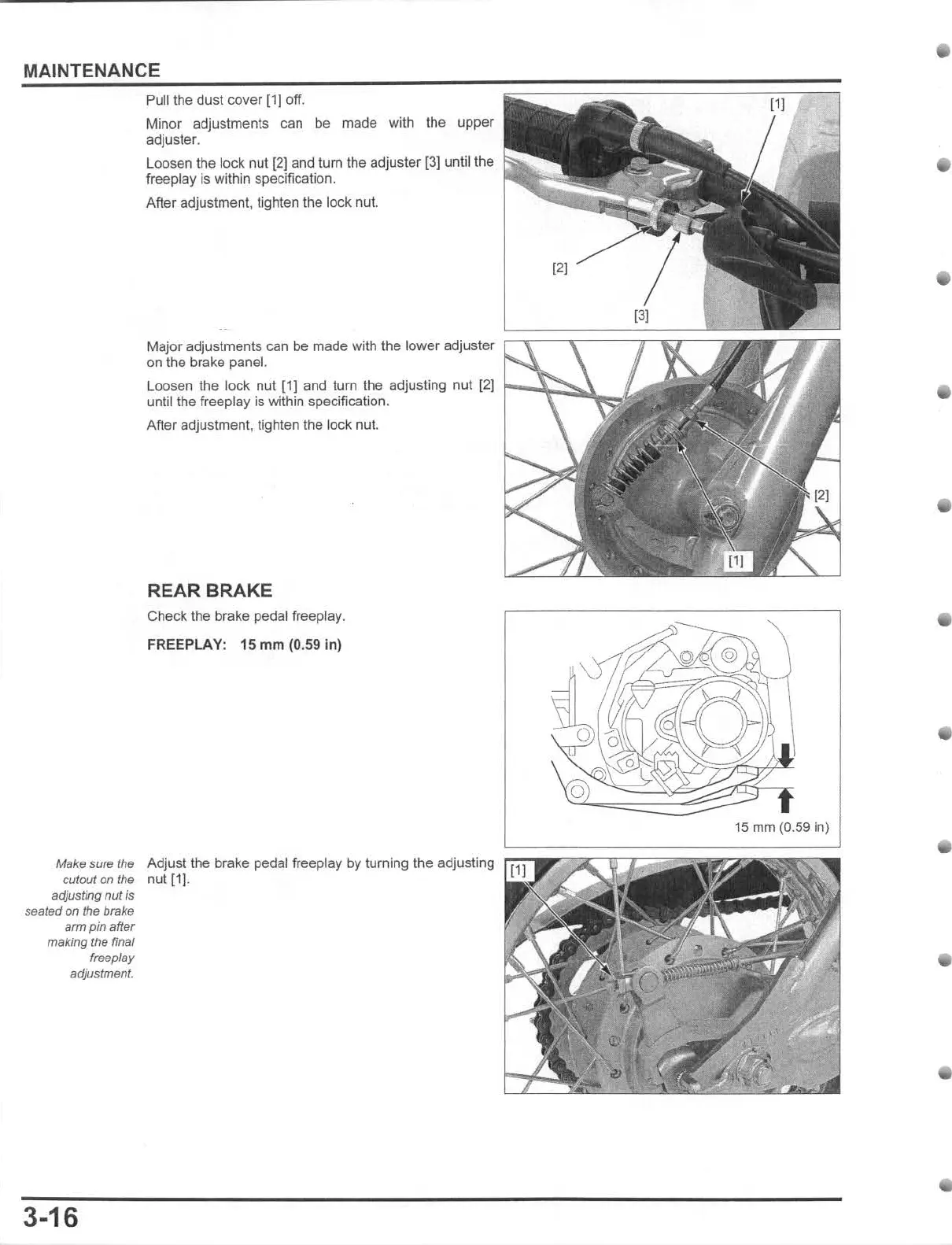

MAINTENANCE
Pull the dust cover [1] off.
Minor adjustments
can
be
made with the upper
adjuster.
Loosen the lock nut [2} and
tum
the adjuster [3] until the
freeplay is within specification.
After adjustment, tighten the lock nut.
Major adjustments can be made with the lower adjuster
;:::;:=
=;:::==:::;:=;~;::::::"'-;=
on the brake panel.
Loosen the
Jock
nul
[1]
and tum the adjusting nut
[21
I--~':::::"':~.J
untillhe
freepJay
is
within specification. I
After adjustment, tighten the lock nut.
REAR BRAKE
Check the brake pedal freeplay.
FREEPLA
Y:
15 mm
(0
.
59
In)
15
mm
(0.59 in)
Make sure the Adjust the brake pedal freeplay
by
turning the adjusting
~:;
;;
;:;~=
;;=~:;;::;
::;;:;;;;;;;;;~;;,;
cutout
on
the
nut
[1]
.
adjusting nut is
seated
on
the
brake
arm
pin
after
making the final
'reap/ey
adjustment.
3-16
•
•
•
•
•
•
•
