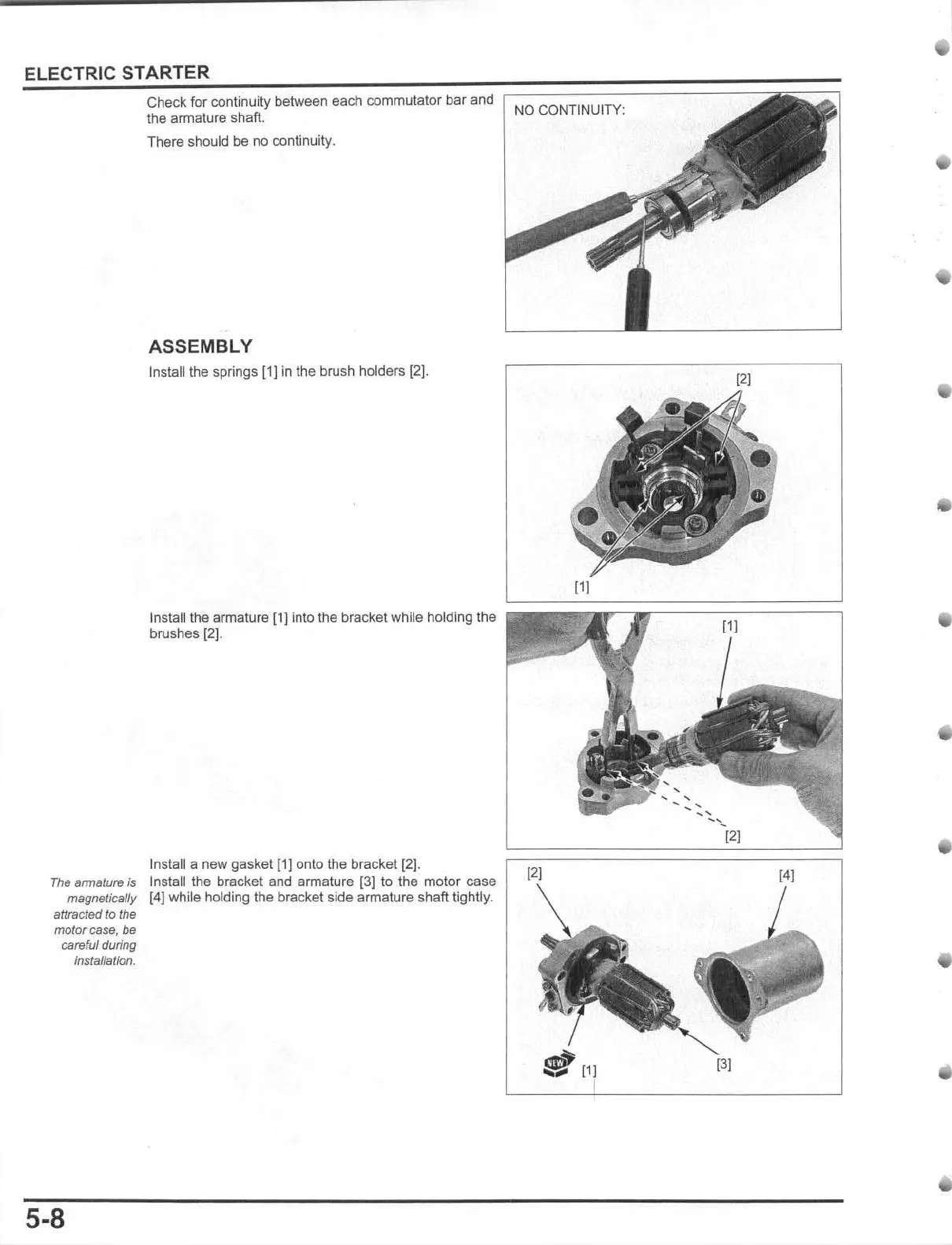

ELECTRIC STARTER
Check for continuity between each commutator bar and
the armature shaft.
There should be no continuity.
ASSEMBLY
Install the springs [1] in the brush holders 12J.
NO CONTINUITY:
[21
Install the armature (1) into the bracket while holding the ::;;;;;;;;;;;::;;;;::::;;;:::========= ~
brushes (2] .
Install a new gasket [1J onto the bracket [2).
The armalUfB /S Install the bracket and armature 13] to the motor case
magnetically (4] while holding the bracket side armature shaft
tlghUy.
attracted to the
motorCSS8, be
car&fui during
instaHstion.
5-8
[11
