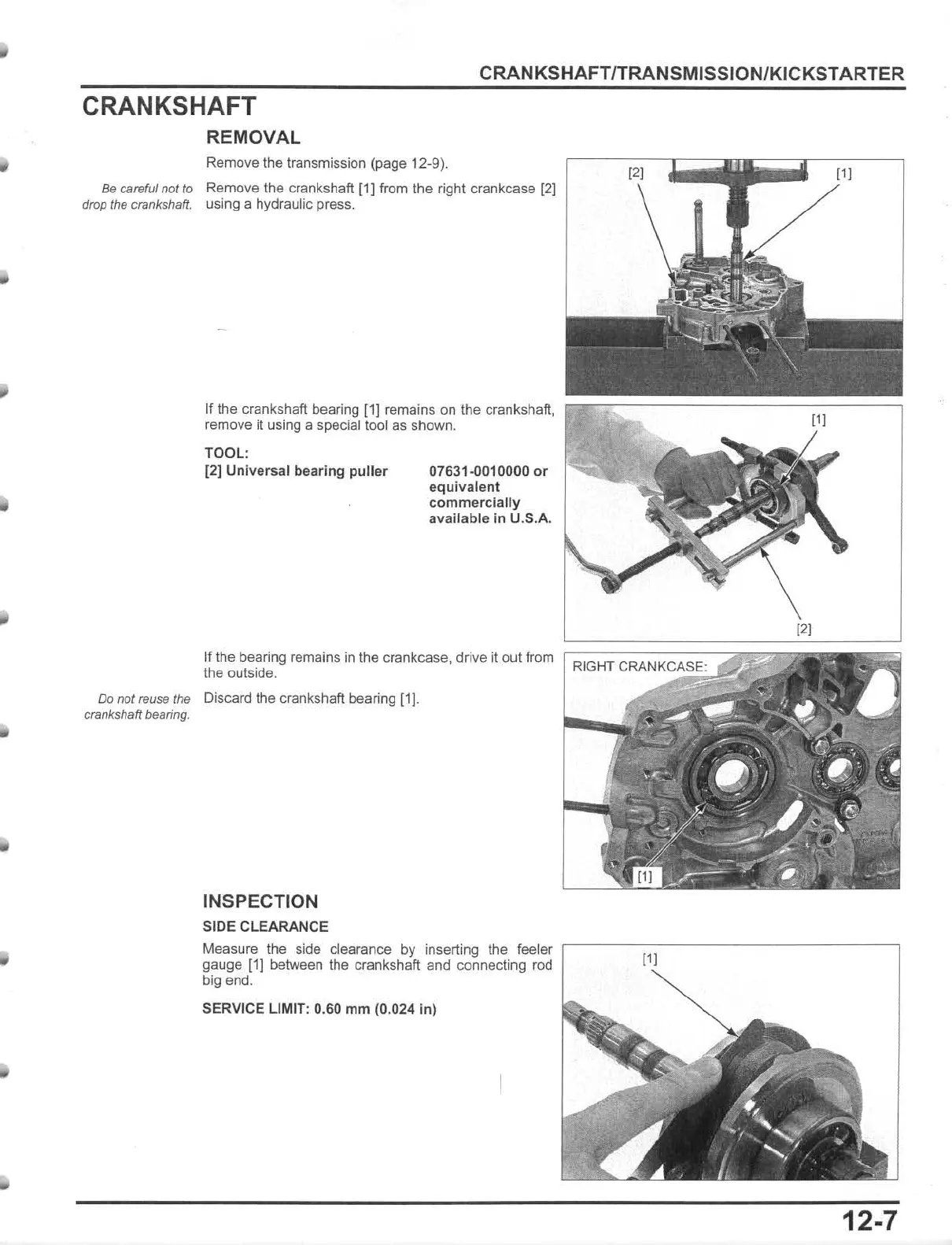

CRANKSHAFTITRANSMISSION/KICKSTARTER
CRANKSHAFT
REMOVAL
Remove t
he
transmission (page 12-9).
Be
careful
not
to
Remove the crankshaft [1] from the right crankcase
(2)
drop
the
crankshaft. using a hydraulic press.
If the crankshaft bearing [1) remains on
the
crankshaft,
~;:::::=============------'-
---,
remove it using a special tool
as
shown.
TOOL:
[2]
Universal
bearing
puller
07631-0010000
or
equivalent
commercially
av
ailable
in U.S.A,
121
If
the bearing remains
in
the crankcase, drive it
out
from
~
;Z~z,~
:~;Ji~:iiiii
;i
.
the outside. I
Do
not
reuse the Discard the crankshaft bearing
111.
crankshaft bearing.
INSPECTION
SIDE
CLEARANCE
Measu
re
the side clearance by inserting the feeler
,---
-
--
-------
--
-
----,
gauge [1] between the crankshaft and connecting
rod
big end.
SERVICE LIMIT: 0.60
mm
(0.024 in)
12-7
