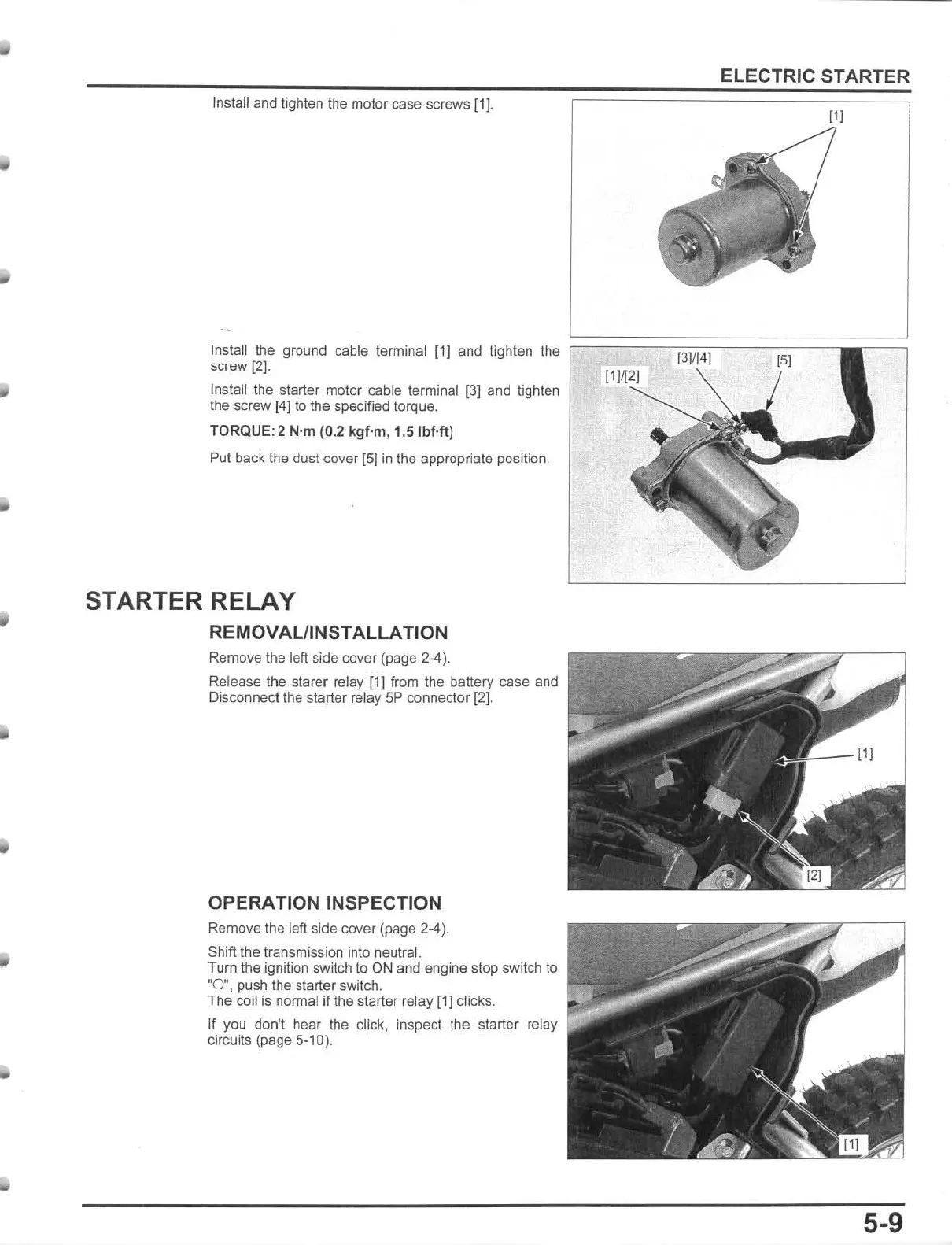

ELECTRIC STARTER
Install and tighten the motor case screws [lJ.
Install the ground cable terminal
[1]
and tighten
the
~=
=
===;;:;;;::
;====.
:::::=
=;
_
=~
screw
[2J.
Install the starter motor cable terminal
(3]
and tighten
the screw [
4]
to the specified torque.
TORQUE: 2 N'm (0.2 kgf'm, 1.
5IbHt
)
Put back the dust cover [5] in the appropriate position.
STARTER RELAY
REMOVAL/INSTALLATION
Remove the left side cover (page 2-4).
Re
lease the starer relay
[lJ
from the battery case and
Disconnect the starter relay
5P
connector
[2].
OPERATION INSPECTION
Remove the left side cover (page 2-4).
Shift
the
transmission into neutra!.
Turn the ignition switch
to
ON
and engine stop switch
to
.0"
, push the starter switch.
The coil is normal if the starter relay [1] clicks.
If you don't hear the click, inspect the starter relay
circuits (page 5-10).
