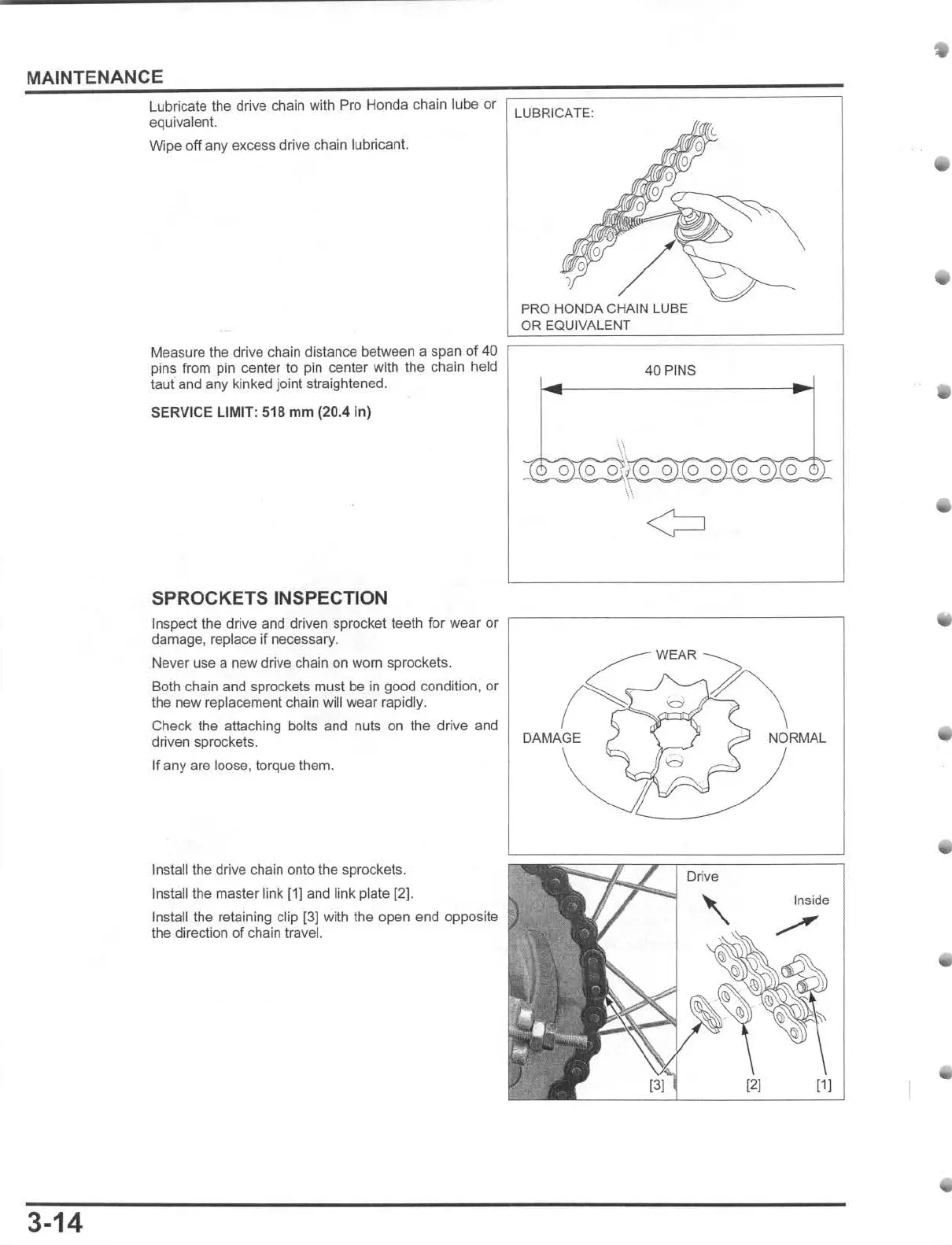

MAINTENANCE
3·14
Lubricate the drive chain with Pro Honda chain lube
or
equivalent.
Wipe o
ff
any excess drive chain lubricant.
LUBRICATE:
PRO
HONDA
CHAIN LUBE
~
O=
R
==
E=a=U=
'
V=A=L=E=N=T
====================~
Measure the drive chain distance between a span
of
40 r
pins from pin center
to
pin center with the chain held
40
PINS
taut and any kinked joint straightened.
SERVICE LIMIT:
51
8 mm (20.4 In)
II
o 0
0.
0 0 0 0 0 0 0
\
SPROCKETS INSPECTION
Inspect the drive and driven sprocket teeth for
wear
or
,--------------
-
----,
damage, replace jf necessary.
Never use a
new
dri
ve
chain
on
worn sprockets.
Bolh chain and sprockets must be in good condition,
or
the new replacement chain will wear rapidly.
Check the attaching bolts and nuts on the drive and
driven sprockets.
If any are
loose
, torque
them
.
Install the drive chain onto the sprockets.
Install the master link [1] and link plate [2].
Install the retaining clip [3] with the open end opposite
the direction of chain travel.
NORMAL
Drive
Inside
[21
(1)
•
