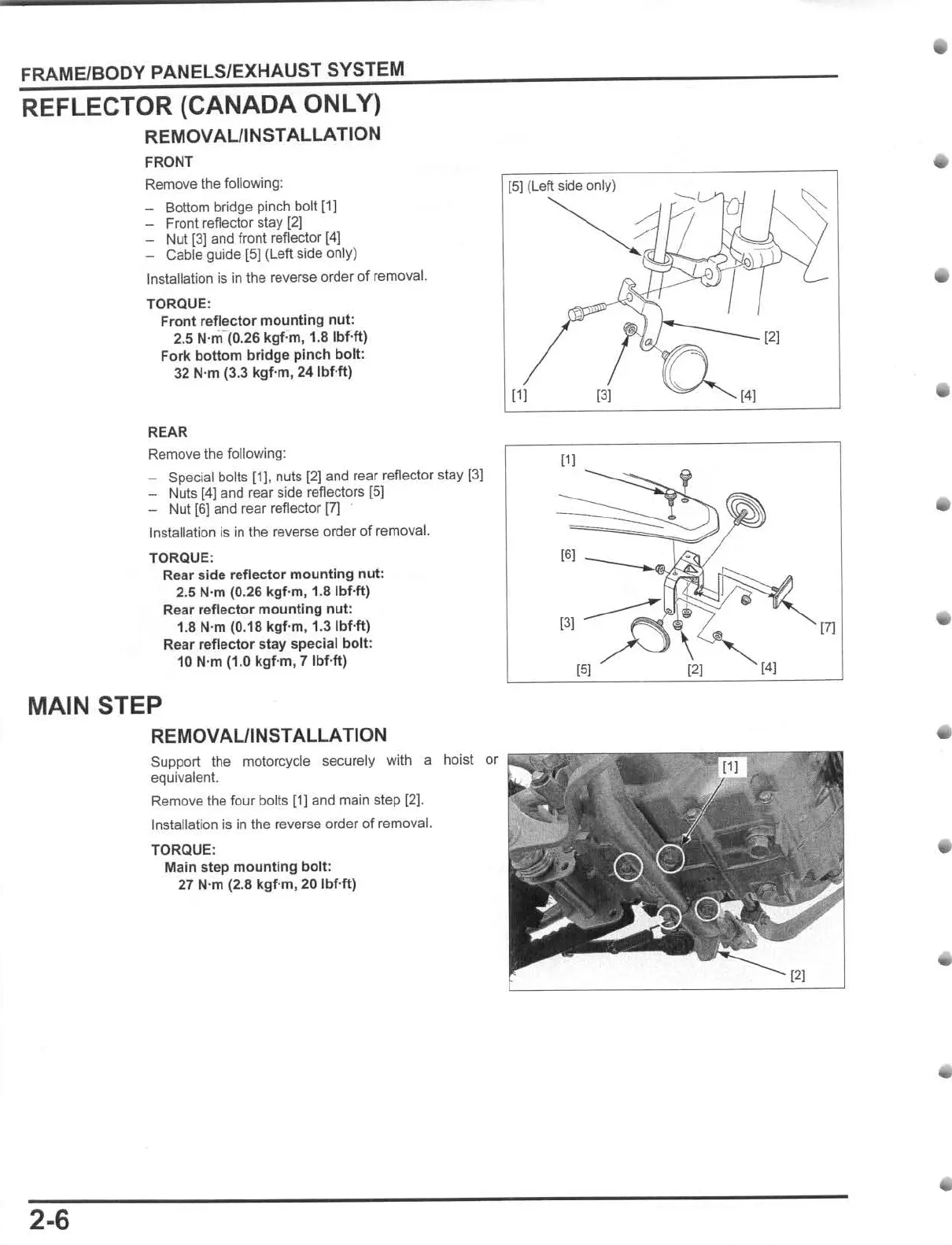

FRAME/BODY PANELS/EXHAUST SYSTEM
REFLECTOR (CANADA ONLY)
REMOVAUINSTALLATION
FRONT
Remove the following:
- Bottom bridge pinch bolt (1]
- Front reflector stay [2)
- Nut [3] and front reflector [4]
- Cable guide [5] (Le
ft side only)
Inslallalion is in the reverse order
of remova l.
TORQUE:
Front reflector mounting nut :
2.5 N·m-(O.26 kgf'm, 1. 8IbHt)
Fork bottom bridge pinch bolt:
32 N'm
(3 .3 kgf 'm, 24 IbHt)
REAR
Remove the following:
- Special bolts
[11 . nuts (2] and rear reflector slay [3]
- Nuts [4] and rear side reflectors [5]
- Nut
(6) and rear reflector (7)
Installation is in the reverse order of removal.
TORQUE:
Rear side reflec tor mounting nut :
2.5 N'm (0.26 kgf·m, 1. 8IbHt)
Rear reflector mounting nut:
1.8 N'm (0 . 18 kgf 'm, 1. 3IbHt)
Rear reflector stay special bolt :
10 N'm
(1 .0 kgf 'm, 7 IbUt)
MAIN STEP
2·6
REMOVAUINSTALLA TION
Support the motorcycle securely with a hoist or
equival
en t.
Remove the four bolts [1] and main step [2].
Installation is in the reverse order of removal.
TORQUE:
Main step mounting bolt:
27 N'm
(2 .8 kgf 'm, 20 IbHt)
[5] (left side on ly)
~~ ---:~~I
1""---_[21
[1[
[41
[11
[6
1
___ r;
1"71
[5[
[21
[41
