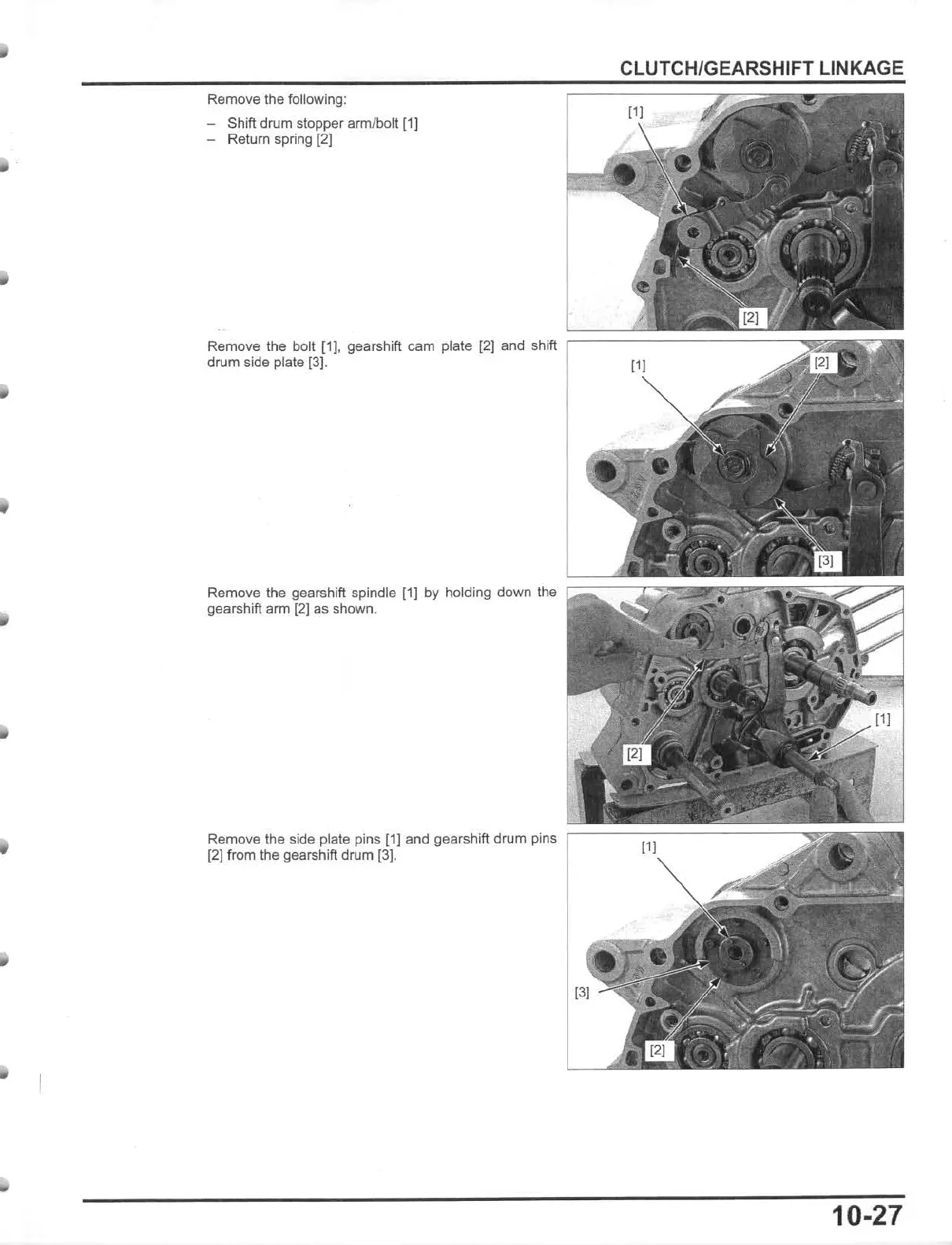

CLUTCH/GEARSHIFT LINKAGE
Remove the following:
- Shift drum stopper armlbolt
(1)
- Return spring [2]
Remove the bolt (1). gearshift cam plale [2J and shift ;::==== ~~~~~=~~
drum side plale [3).
Remove the gearshift spindle (1) by holding down the [;;~~ ~~~;;;;;=:
gearshift arm [2) as shown.
Remove the side plate pins (1] and gearshift
drum pins
(2] from the gearshift drum (3].
10·27
