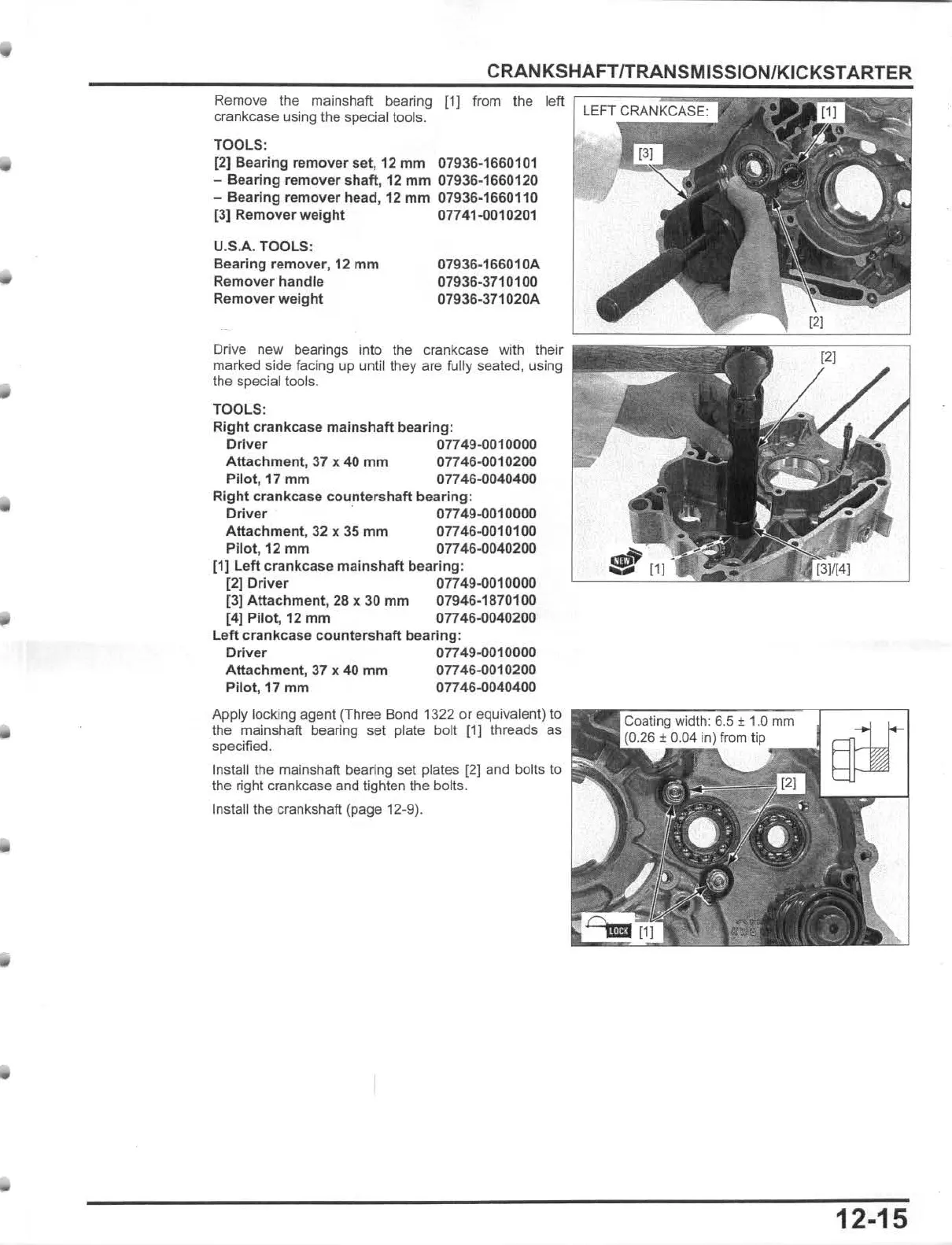

CRANKSHAFTITRANSMISSION/KICKSTARTER
Remove the mainshaft bearing [1] f rom t he le ft
crankcase usi
ng the speciallools.
TOOLS:
[2] Bearing remover set, 12
mm 07936·1660101
- Bearing remover
shaft , 12 mm 07936·1660120
- Bearing remover head, 12 mm 07936·1660110
[31 Remover weight 07741-0010201
U.S.A. TOOLS:
Bearing remover, 12
mm
Remover handle
Remover
weight
07936·166010A
07936·3710100
07936·371020A
Drive new
bea ri ngs in lo I he crankcase with Iheir ~;;;;;;;;;;;,;~;;;;::~ ;;;;;;;; :='=~~===~
marked side facing up un lil lhey are fully sealed, using
Ihe special tools.
TOOLS:
Right crankcase
mainshaft bearing:
Driver 07749·0010000
Attachment,
37 x 40 mm 07746-0010200
Pilot, 17 mm 07746-0040400
Right crankcase
countershaft bearing:
Driver 07749-0010000
Attachment,
32 x 35 mm 07746-0010100
Pilot , 12 mm 07746-0040200
[1] Left crankcase mainshaft bearing:
[2]
Driver 07749-0010000
[3] Attachment,
28 x 30 mm 07946·1870100
[4] Pilot,
12 mm 07746-0040200
Left crankcase
countershaft bearing:
Driver 07749-0010000
Attachment , 37 x 40 mm 07746-0010200
Pilot, 17 mm 07746-0040400
Apply locking agent (Three Bond 1322 or equivalent) to
the m
ai n sh aft bearing set plate boll (1 J threads as
specified.
Install the mainshaft bearing sel plates
(2] and bolls 10
the right cr an kcase and ti ghten the bolts.
Inslal! Ihe crankshaft (page 12·9).
12-15
