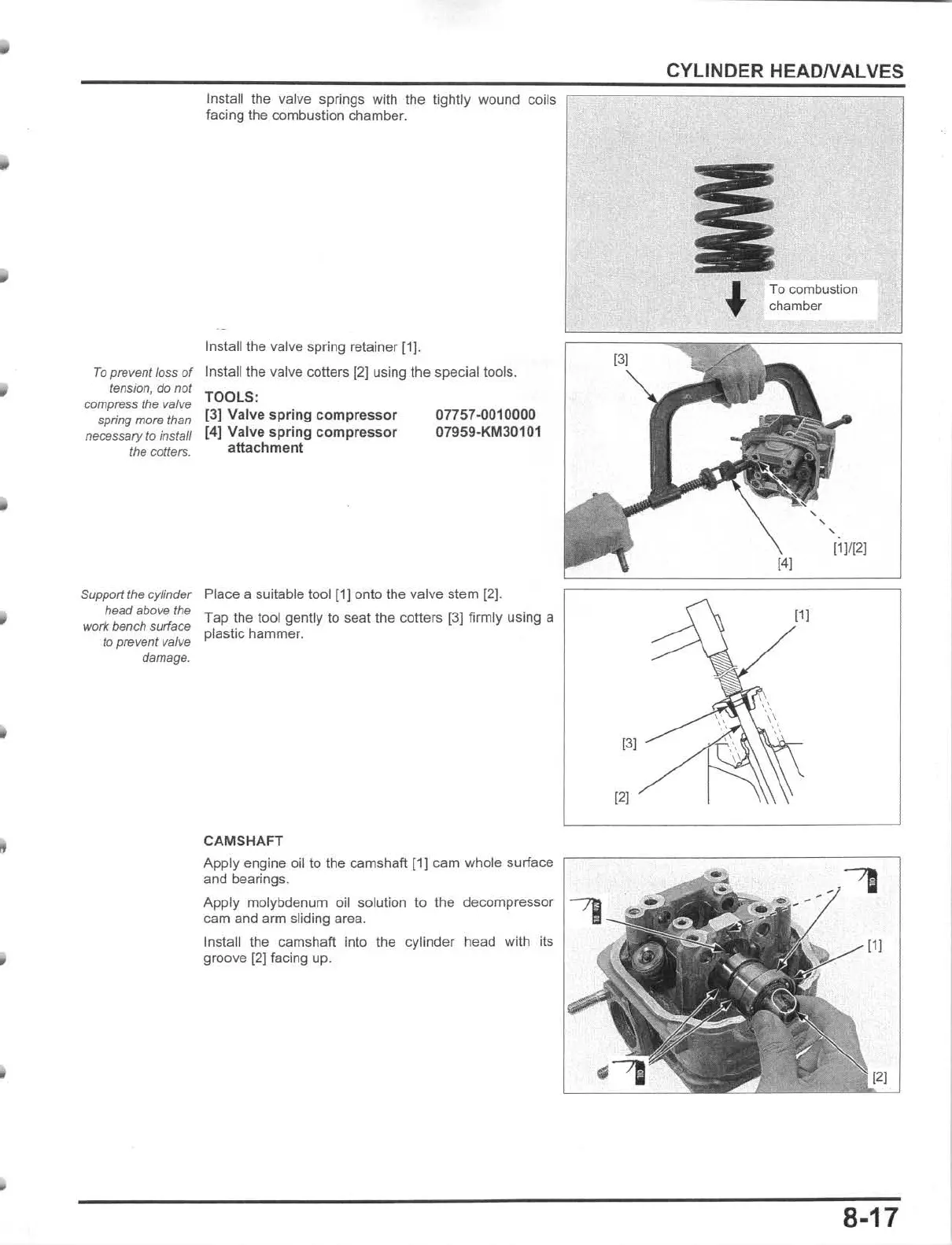

Install the valve springs with the tightly wound coils
facing the combustion chamber.
Inslall the valve spring retainer [1].
To
prevent/ass
of
Install the valve cotters
(2)
using the special tools.
tension, do not
compress Ihe valve
spring
more then
necessary
/0
ins/ell
the cotters.
TOOLS:
[3] Valve
spring
compressor
[4] Valve
spring
compresso
r
attachment
07757..()010000
07959-KM30101
Support the cylinder Place a suitable tool [1] onto
th
e valve stem [2].
head
above
the
wo,*
bench
surface
Tap the 1
001
genlly to seat the cotters [3] firmly using a
plastic hammer.
to
prevent valve
damage.
CAMSHAFT
Apply engine oil to the camshaft (1)
cam
whole surface
and bearings.
Apply molybdenum oil solution to the decompressor
cam and arm sliding area.
Inslall the camshaft into the cylinder head with its
groove [2] facing up.
[3)
[2)
CYLINDER
HEADNALVES
To combustion
chamber
8-17
