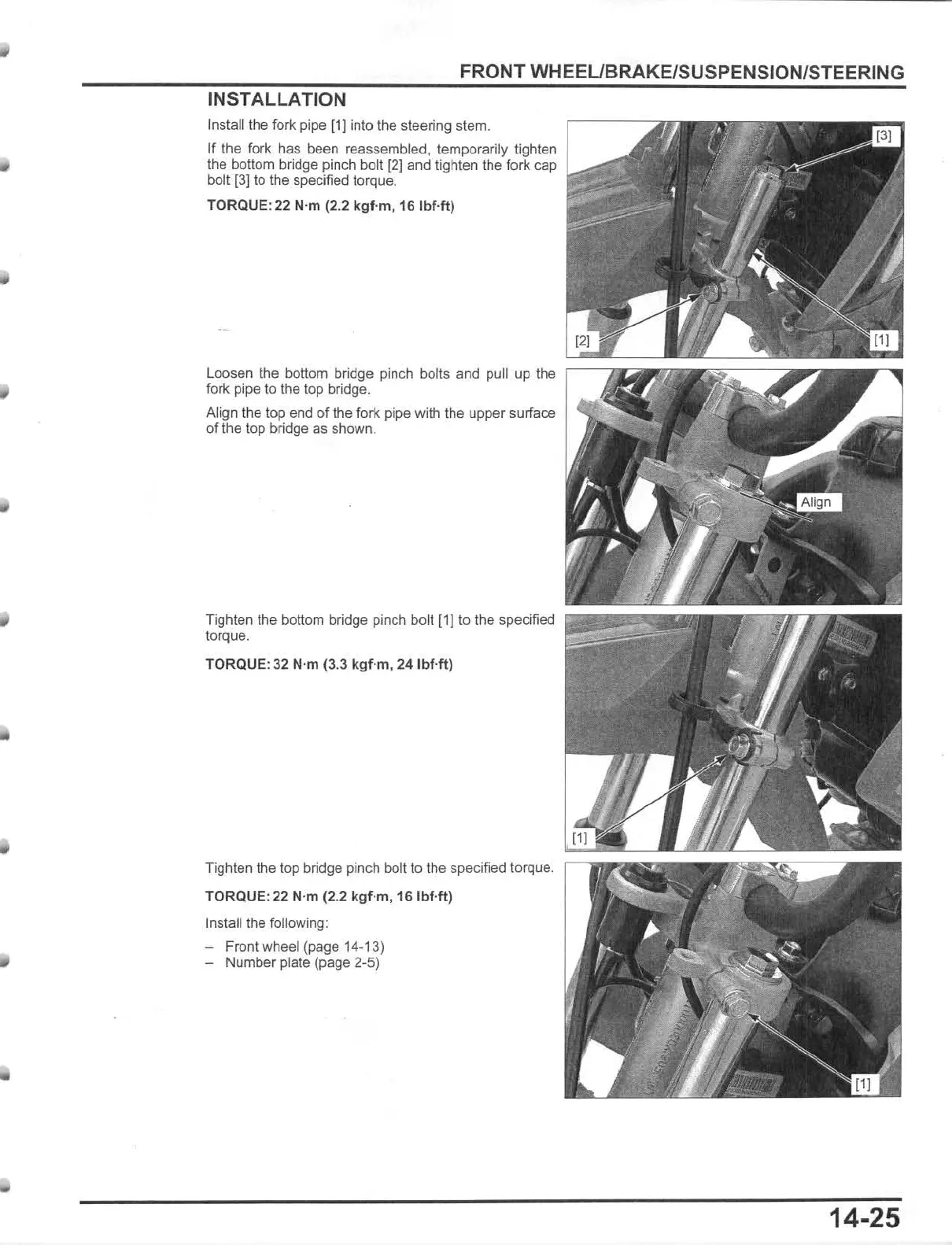

FRONT WHEEUBRAKE/SUSPENSION/STEERING
INSTALLATION
Install the fork pipe [1] into the steering stem.
If th e fork has been reassembled, temporarily tighten
the bottom bridge pinch bolt 12] and tighten the fork cap "'.'!~~
bolt [3) to the specified torque. l
TORQUE: 22 N'm (2.2 kgf'm, 161bHt)
l oosen the bottom bridge pinch bolts and pull up the
fork pipe to the lop bridge.
Align the
lOp end of the fork pipe with the upper surface
of the lop bridge as shown.
Tighten the bottom bridge pinch bolt [1)10 the specified
torque.
TORQUE : 32 N'm (3.3 kgf-m , 24 IbHt)
Tighten the lop bridge pinch bolt to the specified torque.
TORQUE:22 N'm (2.2 kgf ' m, 161bHt)
InslaU the following:
- Fr onlwheel(page14-13)
- Number plate (page 2-5)
14-25
