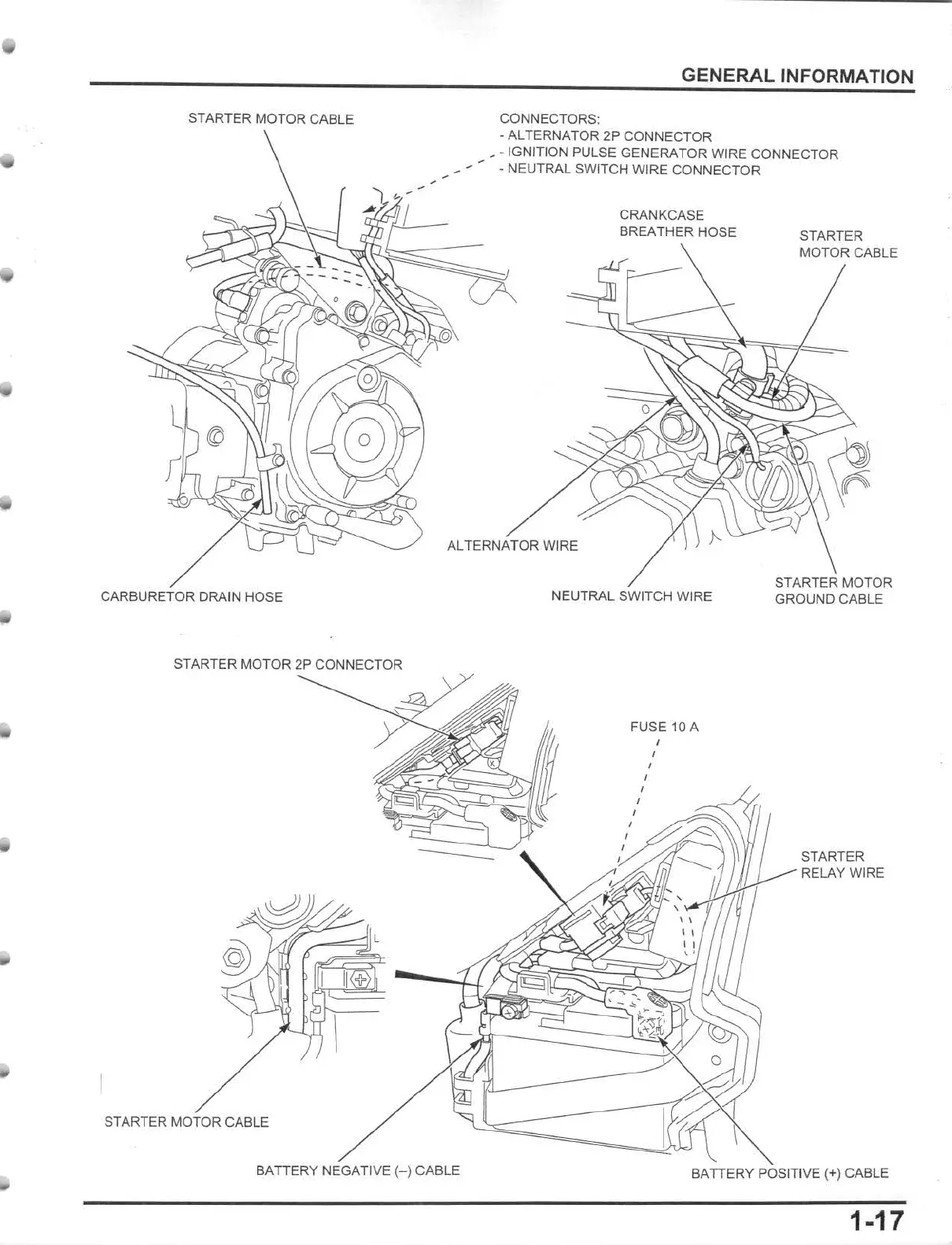

STARTER MOTOR CABLE
o
GENERAL INFORMATION
CONNECTORS:
- ALTERNATOR 2P CONNECTOR
_ ·IGNJT!ON PULSE GENERATOR WIRE CONNECTOR
• NEUTRAL SWITCH WIRE CONNECTOR
CRANKCASE
BREATHER HOSE
STARTER
MOTOR CABLE
ALTERNATOR WiRE
CARBURETOR DRAIN HOSE
STARTER MOTOR CABLE
BATTERY NEGATIVE H CABLE
NEUTRA L SWITCH WIRE
FUSE 10A
STARTER MOTOR
GROUND CABLE
STARTER
RELAY WIRE
BATTERY POSITIVE (+) CABLE
1·17
