FRONT WHEEUBRAKE/SUSPENSION/STEERING

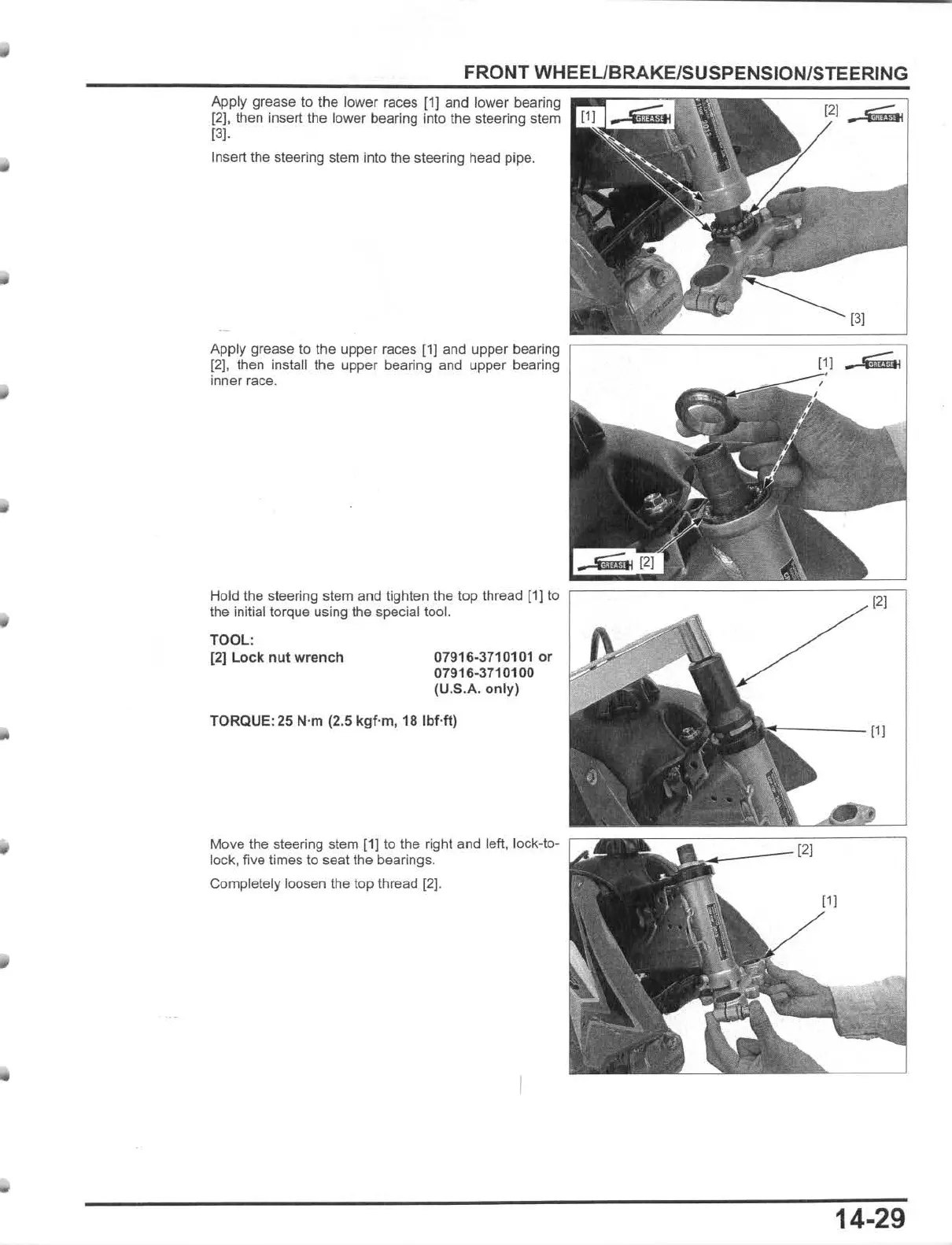

Apply grease to the lower races
[1J
and lower bearing
{2]. then insert the lower bearing into the steering stem
131·
Insert the steering stem into the steering head pipe.
121
~
131
Apply grease to the upper races
(1)
and upper bearing
;"IIIIIIIIIIII
IIIIII~===
======
==~
(2], then install the upper bearing and upper bearing
inner race.
Hold the steering stem and tighten the top thread
[1]
to
~~~~~1I!l~
~~~~~~~
~~1
::;
2;::1
~
the initial torque using the speciatloo!.
TOOL:
[2]
Lock
nut
wrench
07916·3710101 or
07916--3710100
(U.S.A. only)
TORQUE:
25
N'm (2.5
kgf
'm, 18
IbHt
)
Move the steering stem [1] to the right and teft, lock·to-
lock, five times to seat the bearings.
Completely loosen the
lOP
thread [2).
