Operation - Dual Bay Loading Application Overview
Fusion4 MSC-L Part No.: 4418309_Rev09
5 - 70 Installation & Operation Manual
Honeywell

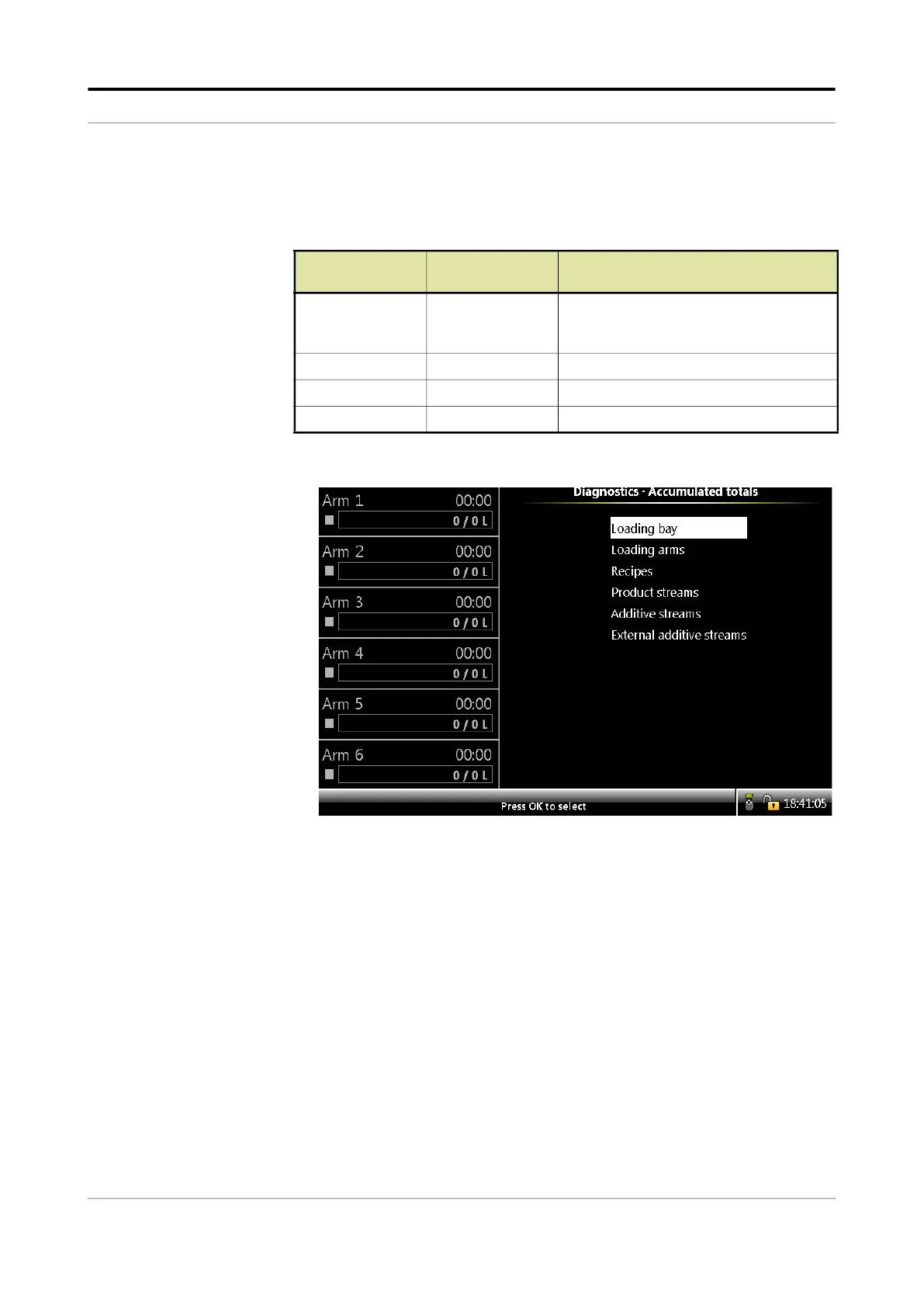

The following table describes the various arm statuses based on the
values configured for Bay 1 in position is Active and Bay 1 in position is
Active parameters.
18. On the Diagnostics screen, select <Accumulated totals>. The Diag-
nostics. Accumulated Totals screen appears.
Bay 1 in
position
Bay 2 in
position
Arm Status
Active Active This scenario cannot occur.
An alarm “Swing arm invalid position” is
displayed
Not Active Active Loading can begin at Bay 2
Active Not Active Loading can begin at Bay 1
Not Active Not Active The loading arm is parked or in transition.
