Operation - Interfacing With External Additive Controller
Fusion4 MSC-L Part No.: 4418309_Rev09
5 - 84 Installation & Operation Manual
Honeywell
2. On the System Configuration screen, select <Device> to configure
the MSC-L.

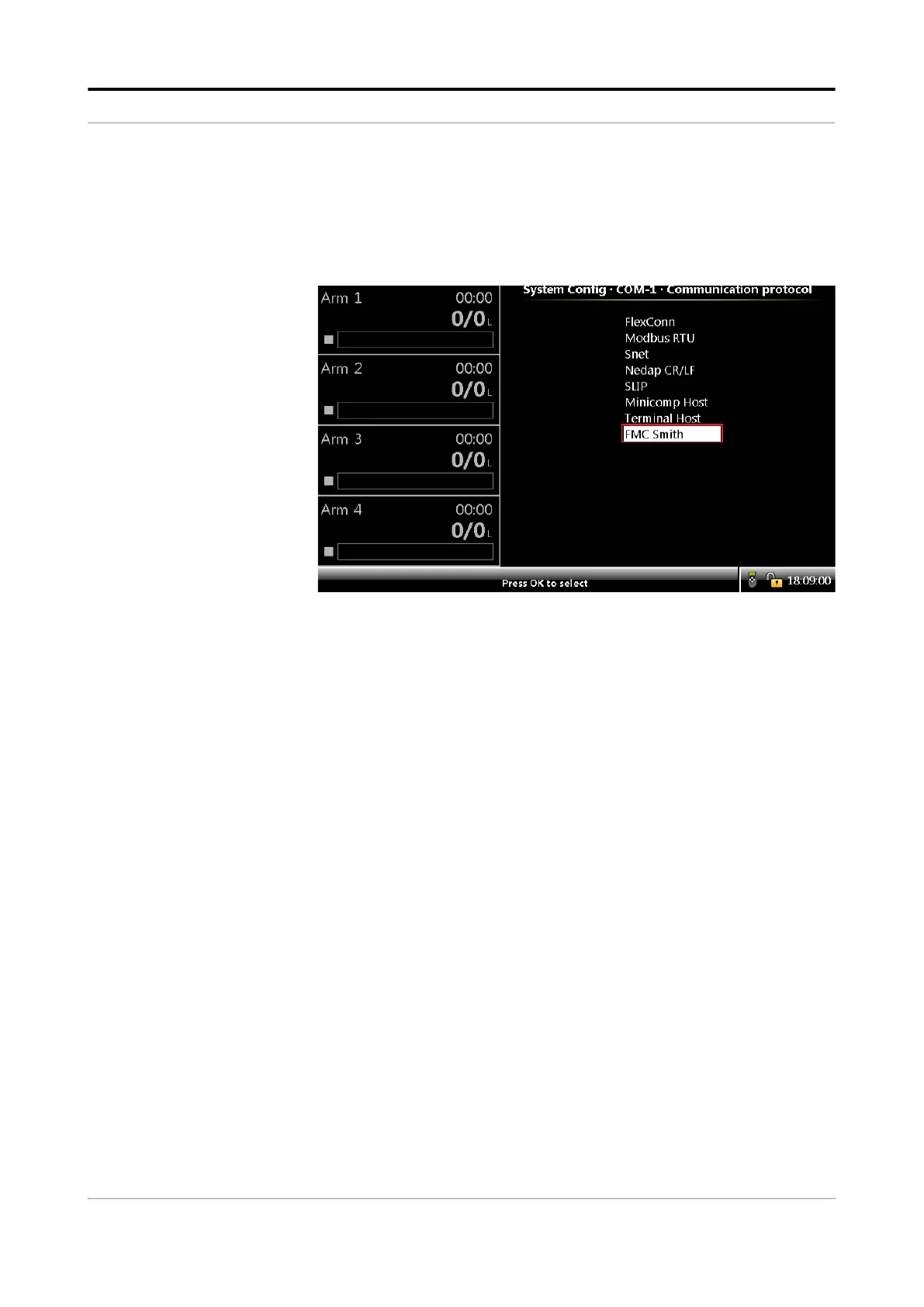

3. On the System Config - COM-n screen, select <Communication
protocol>. The following screen appears.
4. Set Communication protocol as <FMC Smith>.
5.11.3.2 External Additive Stream Configuration
See chapter 5.14.3 "Stream Configuration - External Additive streams"
for more information on configuring external additive streams.
5.11.3.3 Arm Configuration
See chapter 5.15 "Arm Configuration" for more information on
configuring external additive streams.
In the Recipe Configuration, external additives can be selected just like
Internal additives.
The additives available for recipe will now list all the external and
internal additives associated with the arm.
Selecting the external additive for an arm triggers polling of that external
additive stream. Communication status can be checked in Comms. Info
in the diagnostics menu.
See, 5.15.7 - Arm Configuration . Arm n . Recipes section for more
information.
The injection offset for external additive as well as internal additive is
fixed as 50%. This means the very first injection will start at half of the
pacing quantity followed by a gap of pacing quantity. The injection offset
setting in the external additive controller is not used when used as
external additive on MSC-L.
