Honeywell Fusion4 MSC-L User Manual

Operation - Service Technician Operations
Fusion4 MSC-L Part No.: 4418309_Rev09
5 - 316 Installation & Operation Manual
Honeywell
5.23.2 Configuration Order
When the MSC-L is configured for a specific application, it is important
to follow a particular order. This is to ensure that the MSC-L can perform
the loading activities as required.
A loading arm can have product streams and additive streams. Each of
the logical streams contain a flow meter and a control valve/solenoid to
control the flow of the product or the additive. The arm is physically on a
bay and both the arms and the bays are logically part of the MSC-L.

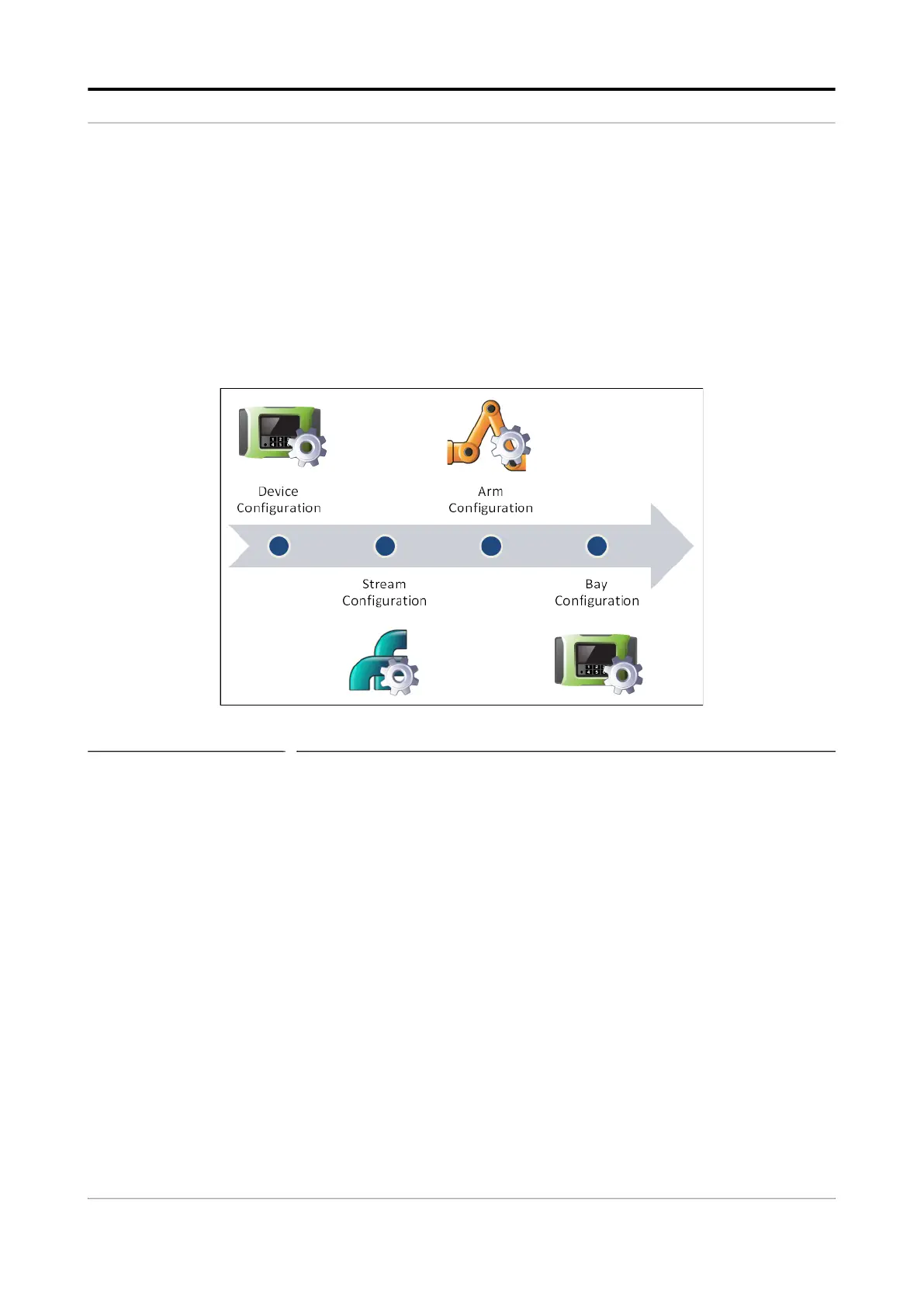

See FIGURE 5-46 for the configuration order.
FIGURE 5-46 Configuration order
1. Device Configuration: Includes configuration of the MSC-L level
permissive like ESD, device level alarms, I/O settings for various I/
Os including the pulse inputs, and so on.
See 5.13.1 - Device Configuration, for more information regarding
the configuration of the parameters and the entities.
2. Stream Configuration: Includes the configuration of I/O bindings for
flow meter, actuator (DCV), solenoid and various control settings for
the streams. For example, the maximum flow rates, minimum flow
rates, stream level alarms, and so on.
See 5.14 - Stream Configuration, for more information regarding the
configuration of the parameters and the entities.
3. Arm Configuration: Includes assigning streams to an arm,
configuring recipe, arm level control parameters, arm alarms, and so
on.
See 5.15 - Arm Configuration, for more information regarding the
configuration of the parameters and the entities.
