Honeywell Fusion4 MSC-L User Manual

Operation - System Configuration
Part No.: 4418309_Rev09 Fusion4 MSC-L
Honeywell Installation & Operation Manual 5 - 113
5.13.1.4.2 PI

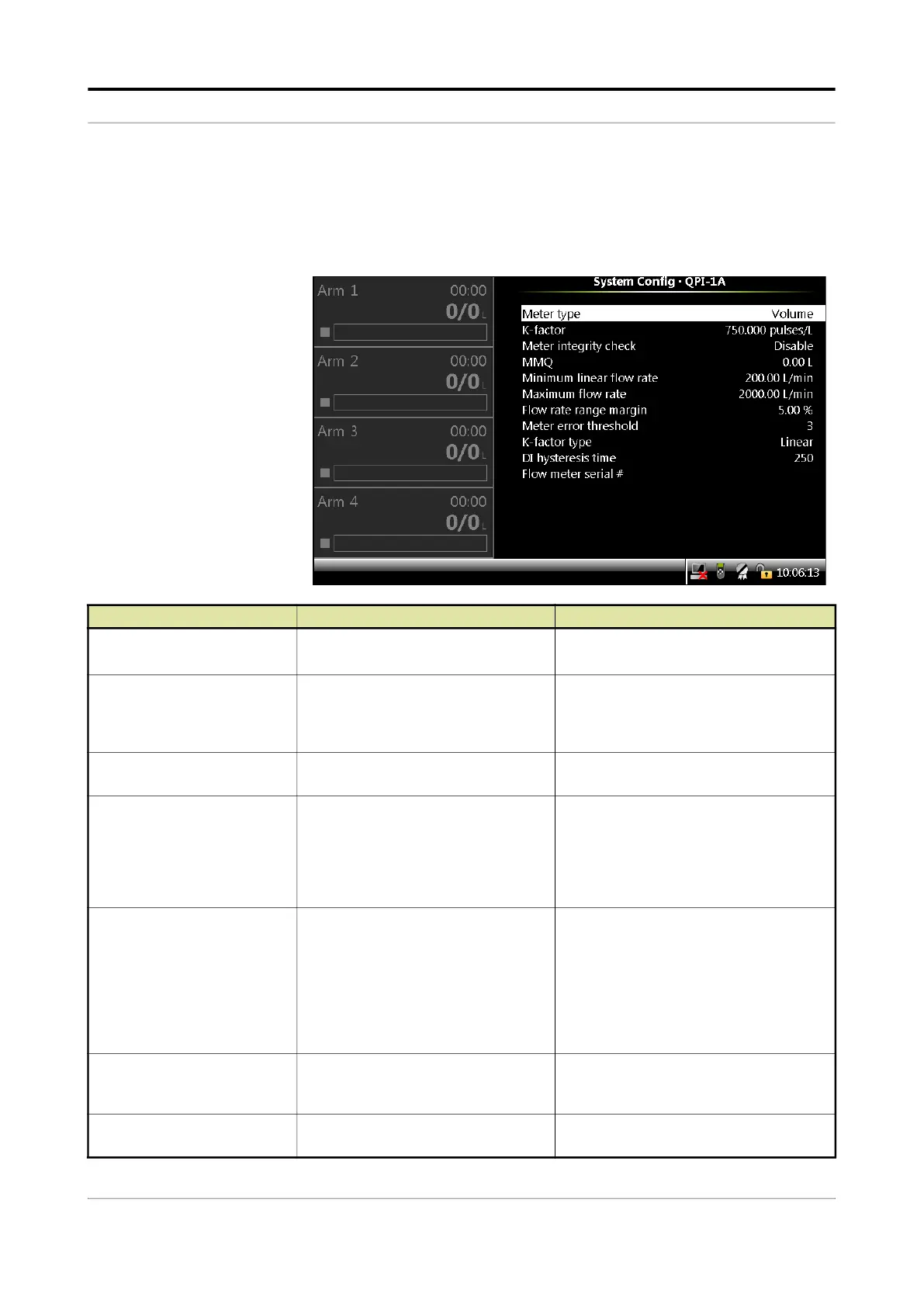

On the System Config . Device . I/O Settings screen, select the
available Pulse Inputs (PIs), and then select a QPI-n(A/B). The
following entities are displayed on the System Config . QPI-nA screen.
Entity Description Value range
[Meter type]
With this entity you can select type of
meter connected to a stream.
<Volume> (default)
<Mass>
[K-factor]
With this entity you can set the K-factor
of the flow meter supplied by
the vendor, in pulses per
[Units of
volume] or [Units of mass].
The K-factor must be the number of pulses
per liter (gallon), regardless of the
configured unit of volume selection.
(default =
<750.000 pulses/L>)
[Meter integrity check]
With this entity you can select the pulse
type of the flow meter.
<Enable> = dual pulse (quad)
<Disable> = single pulse (default)
[Pulse phase relationship]
With this entity you can select pulse
phase difference which is considered to
be correct for flow meter. When set to
forward, only forward gives no alarm
and all other result gives pulse phase
alarm.
<inverted>
<reverse>
<forward>
[MMQ]
With this entity you can set the smallest
quantity specified for which the flow
meter is capable of measuring within
the applicable prescribed limit of error.
The preset value entered is validated
against the MMQ. If the value is less
than the MMQ, then a batch cannot be
started.
default =
<0.00> L
[Minimum linear flow rate]
With this entity you can program the
minimum linear flowrate for the flow
meter installed.
default = <200.00> L/min
[Maximum flow rate]
With this entity you can set the
maximum allowed flow rate.
default = <2000.00> L/min
