Honeywell Fusion4 MSC-L User Manual

System Description - Introduction
Part No.: 4418309_Rev09 Fusion4 MSC-L
Honeywell Installation & Operation Manual 3 - 3
3.1.3 Types of Blending
The following sections describe the various types of blending supported
in the MSC-L.
3.1.3.1 Straight Loading
Straight loading is a batch in which only the main product is dispensed
without any additional blend products.

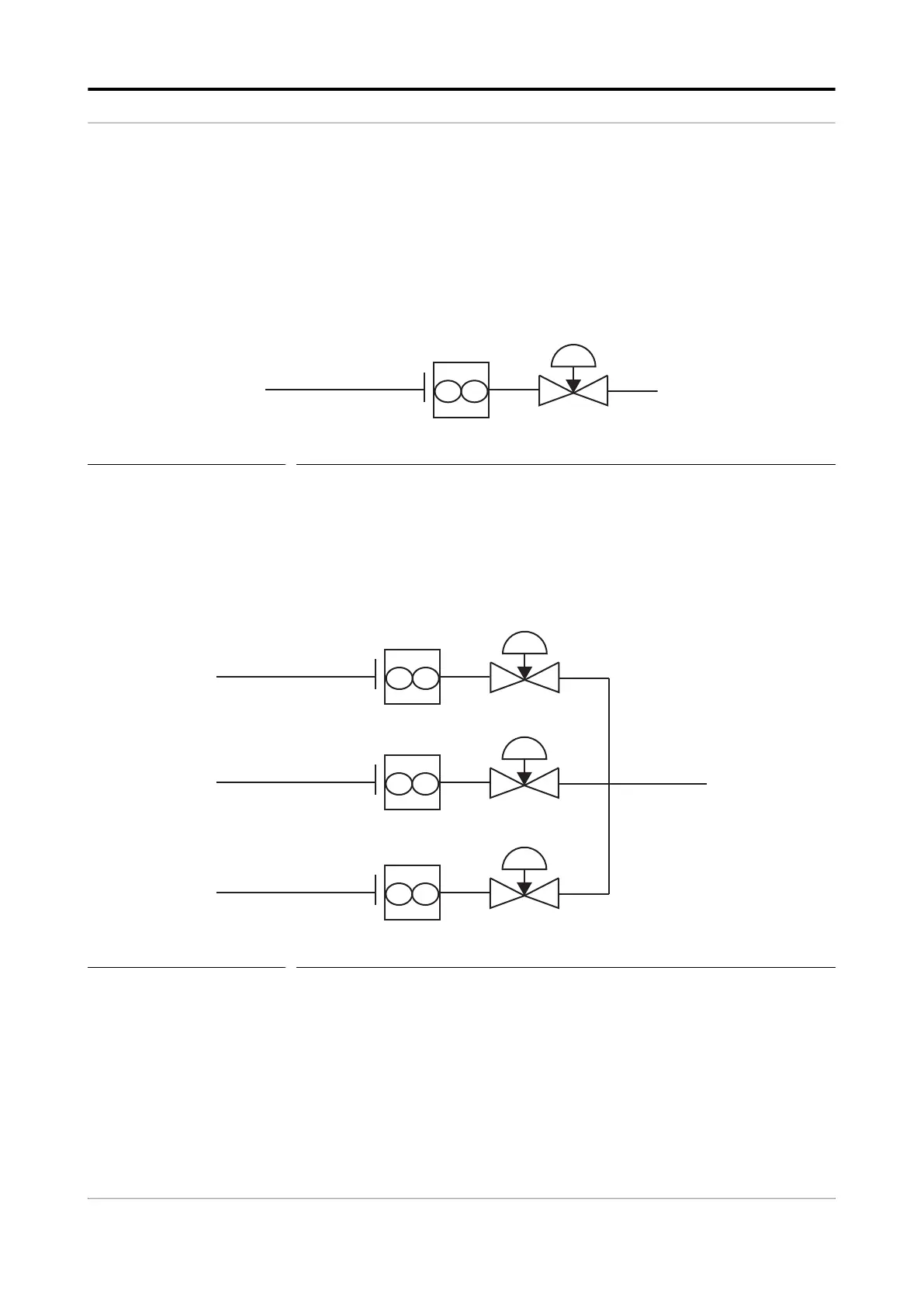

FIGURE 3-1 Straight Arm Loading
3.1.3.2 Ratio Blending
Ratio blending is a process in which the main product is blended with
one or more blend products, when a batch is loaded. The amount of
each product is defined by the recipe selected for the batch. Each
product - main and blend(s) - must be controlled independently by its
own product valve and must have its own meter.
FIGURE 3-2 Ratio Blending Piping
3.1.3.3 Side Stream Blending
Side Stream blending is a batch blending where one blend product is
blended into the main product. The blend product must have its own
valve and meter. The combined, final, blended product must also have
its own valve and meter.
