5.11.2 Configuring External Additive Controller
This section describes how to configure the External Additive Injectors
of MSC-A to interface with MSC-L. Other external additive controllers
like SSC-A, MP6 or MP3000 can be configured in a similar way.
5.11.2.1 Device Configuration - Communication
To perform the device configuration - communication
1. On the Main Menu screen, select the Device Configuration icon.

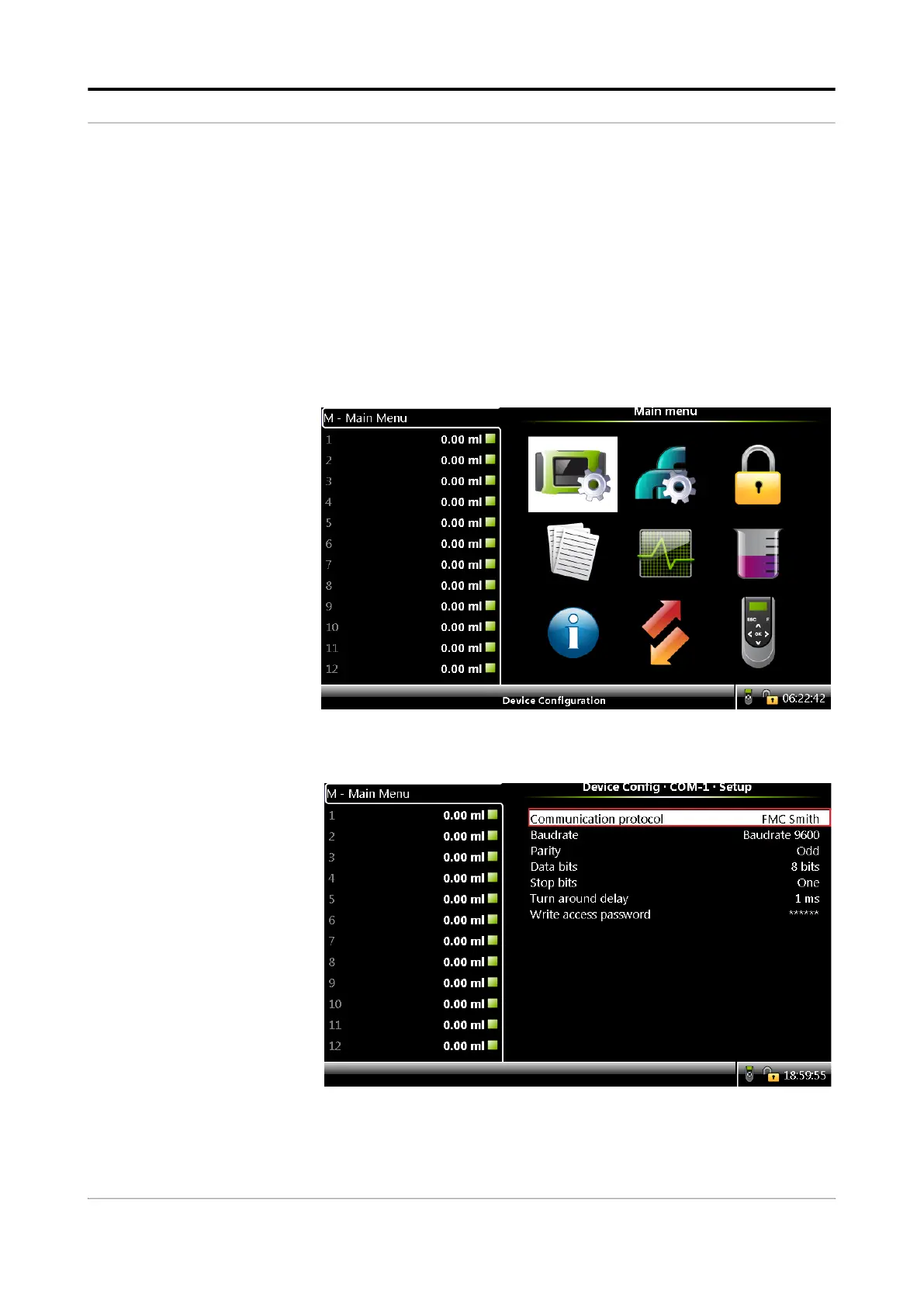

The Device Configuration screen appears, which displays the
functions available for device configuration.
2. On the Device Configuration - COM-n screen, select <Setup>.
The following screen appears.
3. Set the <Communication protocol> entity value as <FMC Smith>.
4. Select and match the each entity (Baud rate, Parity, Data bits &
Stop bit) values with MSC-L port at the other end of line.
