System Description - Output Functions
Part No.: 4418309_Rev09 Fusion4 MSC-L
Honeywell Installation & Operation Manual 3 - 61

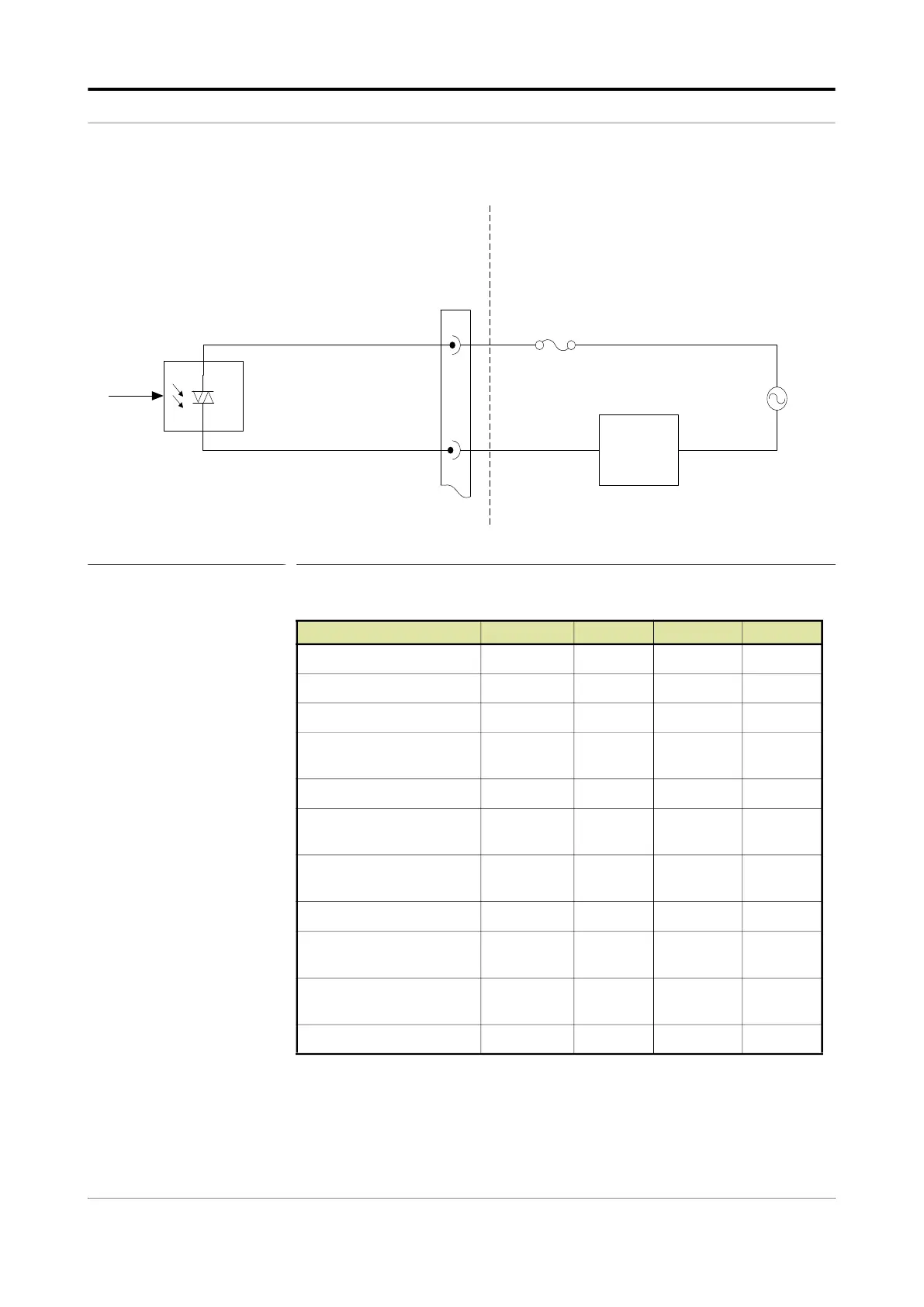

FIGURE 3-36 Solid State Relay “Externally powered” connections
3.9.6.2 Characteristics
Item Minimum Typical Maximum Unit
Isolation voltage - - 3700 V
AC rms
Operating voltage 90 - 265 V
AC
Operating frequency 47 - 63 Hz
Output steady state load
current
1 - 250 mA
Output surge load current - - 3 A
Off state output leakage
current
- - 0.1 mA
Off state output blocking
voltage
- - 600 V
Switching time - - 10 ms
Control voltage must turn
on
2 - - V
DC
Control voltage must turn
off
- - 0.4 V
DC
Control current - - 5 mA
CNx
SSRx_feed_ac
SSRx_sw_ac
CAN-ARM-MSC or
CAN-IN-OUT-MSC
Fuse
AC
L
N
1.5A(T)
LOAD
External equipment
Solid State Relay
