3.5 Hardware Structure
For details on the hardware structure of the MSC-L, see the following
sections.
3.5.1 Housing
The housing of the MSC-L consists of an enclosure and a cosmetic
cover. The enclosure can be opened by removing the cosmetic cover
and loosening the 32 captured bolts. See FIGURE 3-8, for more
information.
NOTE: Turn the bolts two times on the cosmetic cover to
loosen the bolts and retain them in the lid.

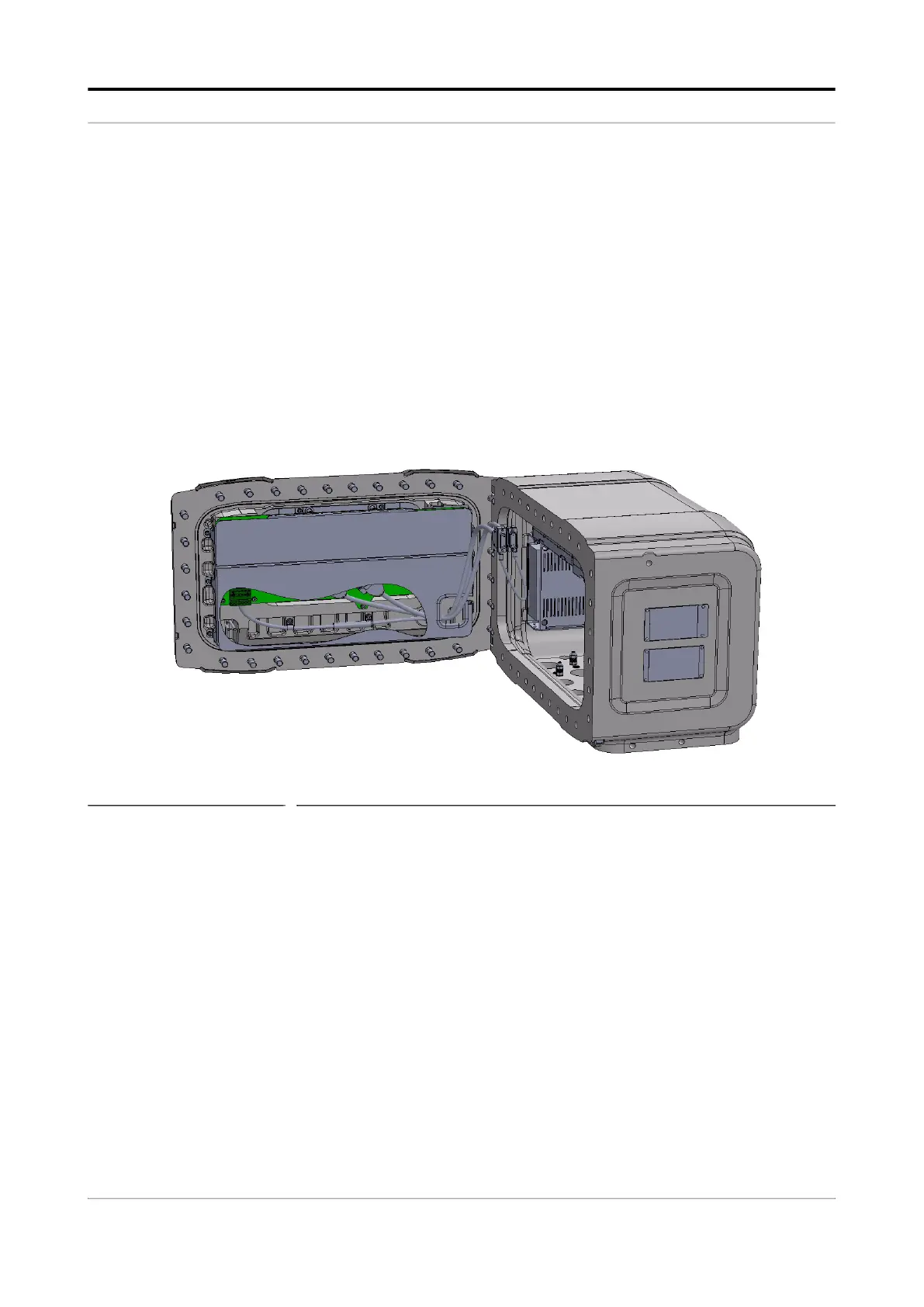

FIGURE 3-9 The MSC-L enclosure
