Honeywell Fusion4 MSC-L User Manual

System Description - Output Functions
Fusion4 MSC-L Part No.: 4418309_Rev09
3- 56 Installation & Operation Manual
Honeywell

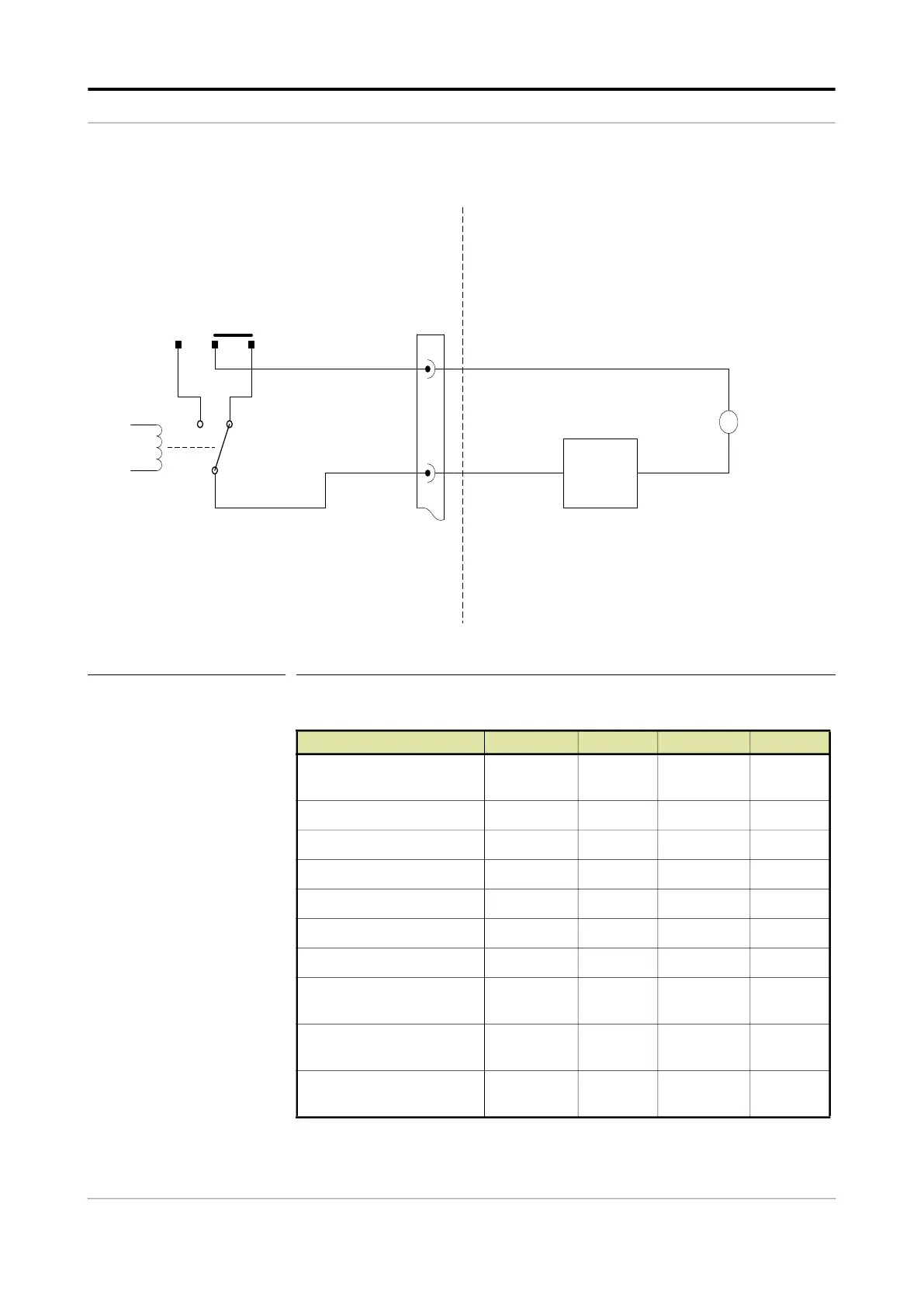

FIGURE 3-33 DO EMR DC connections
3.9.4.2 Characteristics
Item Minimum Typical Maximum Unit
Load Voltage to be
switched
- - 30 V
DC
Switching current - - 1 A
Steady state current - - 1 A
Output contact type - SPST - -
Operate time - - 5 ms
Release time - - 10 ms
Setting time - - 50 ms
Control voltage
(high level)
2.5 - - V
DC
Control voltage
(low level)
- - 0.4 V
DC
Control current
(high level)
- - 1 mA
JPx
N/O N/C
SPST
Configurable as N/O or N/C
via jumper
CNx
CAN-IN-OUT-MSC
LOAD
External equipment
1,3,5,7 [EMRx_no]
2,4,6,8 [EMR_common]
+
-
External
DC PSU
